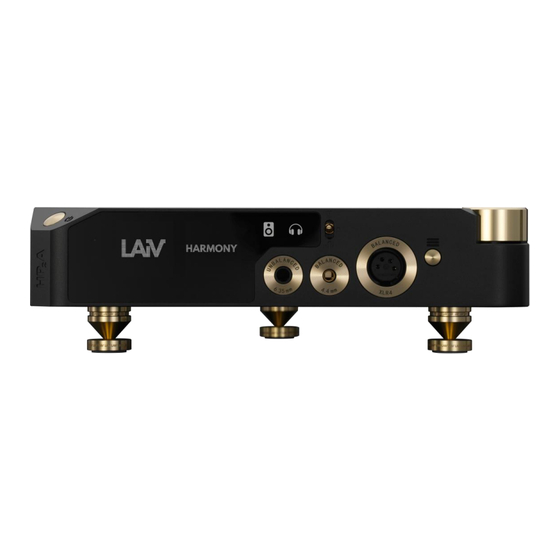

Summary of Contents for LAIV HARMONY HP2A
- Page 1 V.1.01 HARMONY HP2A | Manual V1.0 Laiv Audio www.laiv.audio info@laiv.audio Page 1 of 25...
- Page 2 HARMONY HP2A | Manual 2 / 25...
- Page 3 HARMONY HP2A | Manual TABLE 1. Getting Started 1.1. Introduction 1.2. Safety Instructions 1.3. Quick Start CONTENTS 2. Basics About The HP2A 2.1. The Front Panel 2.2. The OLED Display 2.3. The Rear Panel 2.4. Remote Control 3. Settings For The HP2A 3.1.
- Page 4 It is an honor to have you embark on a journey of premium sound quality with our products. Introducing our state-of-the-art Harmony HP2A, meticulously engineered with a focus on user experience and convenience. Drawing from over a decade of industry experience in engineering and audio, we've seamlessly integrated the best of both worlds to design a preamplifier and headphone amplifier that sets new standards in performance and usability.
- Page 5 HARMONY HP2A | Manual 1.2. Safety Instructions We're thrilled to have you as part of our family, and your safety is our utmost priority. Before you dive into using your new HP2A, let's go over some essential safety tips to ensure everything goes smoothly: Get to Know Your HP2A: Take a moment to flip through the user manual.
- Page 6 HARMONY HP2A | Manual 1.3. Quick Start 6 / 25...
- Page 7 HARMONY HP2A | Manual 2. Basics About The HP2A 2.1. The Front Panel All the information and controls can be accessed using the front panel of the HP2A. The controls on the front panel are similar to those of the IR remote control except the selection of output modes, providing a seamless experience for controlling the device.
- Page 8 HARMONY HP2A | Manual 2.2. The OLED Display Experience the user-friendly dual OLED display, boasting a crisp 256 x 128 resolution in total. Its intuitive interface offers seamless navigation and easy access to settings, providing unparalleled convenience. 8 / 25...
- Page 9 HARMONY HP2A | Manual 2.3. The Rear Panel The rear panel of the HP2A features three distinct sections. Positioned on the far right is the IEC inlet, providing power to the device, accompanied by a grounding connection for the chassis ensuring optimal performance.
- Page 10 HARMONY HP2A | Manual 2.4. Remote Control Introducing our remote control, meticulously crafted with simplicity in mind. Featuring easily accessible keys for common functions, navigating your device has never been smoother. With configurable function keys for quick access to your preferred settings, personalizing your experience is effortless. What sets our remote apart is its versatility—...
- Page 11 3. Settings For The HP2A 3.1. Settings Menu The settings menu on the Harmony HP2A is super simple and straightforward, no overwhelming options, just what you need. You can tweak the display settings like brightness, delay dim, and delay off, and there’s also a volume limit setting so you can keep the start up volume at a comfortable level.
- Page 12 HARMONY HP2A | Manual 3.2. Display Brightness and Delay Setting The display brightness and delay settings feature provide you with full control over your viewing experience. With the display brightness setting, you can adjust the brightness of the display to your preference, ensuring optimal visibility in any lighting condition.
- Page 13 HARMONY HP2A | Manual 3.3. Volume Control The Harmony HP2A is designed to provide a safe and user-friendly listening experience through its intelligent volume control feature. Volume Limit on Startup: If the volume level is above the configured limit when the device is set to standby or powered off, the volume will automatically be set to the configured volume limit upon startup.
- Page 14 HARMONY HP2A | Manual 3.4. Device Shape You have the opportunity to configure one of two device shapes, triangle or square, ensuring no repeated shapes for your devices. This ensures that your remote control can correctly control the desired device without confusion.
- Page 15 HARMONY HP2A | Manual 3.5. “About” In The Settings The About Page on the Harmony HP2A provides important system information, including the current firmware version of the device. To check the firmware version: 1. Navigate to the Settings Menu using the front panel controls or remote.
- Page 16 4. Special Features 4.1. LE-LINK and Expandable Input Capability The Harmony HP2A is designed to adapt to your evolving audio needs with Expandable Input Flexibility. At the heart of this capability is LE-LINK, a proprietary connection that enables seamless integration with expansion modules like the Harmony LExt.
- Page 17 HARMONY HP2A | Manual Harmony LExt Integration Users can expand the input capabilities of the HP2A by connecting the Harmony LExt module via LE-LINK. The Harmony LExt is available in two versions: LExt IN2, which adds balanced XLR and single-ended RCA inputs ...
- Page 18 HARMONY HP2A | Manual 4.2. Protection Features The Harmony HP2A is equipped with several built-in protection features to ensure safe and reliable operation. These safeguards are designed to protect both the device and your connected equipment, allowing for a worry- free listening experience.
- Page 19 Please avoid touching the heatsink and grille during operation, as they may become hot. These protection features help ensure the long-term reliability of the Harmony HP2A while providing a safe and consistent audio experience. 19 / 25...
- Page 20 HARMONY HP2A | Manual 5. Technical Specifications Finish Black Anodized Aluminium Silver Anodized Aluminium Size and Weight Width: 255 mm Depth: 250 mm (Included connectors) Height: 50 mm Spike: 25 mm Weight: 4.6kg 20 / 25...
- Page 21 HARMONY HP2A | Manual Display Dual 1.5-inch (diagonal) white monochrome OLED 128x128-pixel resolution at 16-bit grayscale each Analog Outputs 1 x Balanced XLR, max 16 Vrms, approx. 94 k Ω Expandable with Harmony LExt Preamp Outputs 1 x XLR, approx. 200 Ω...
- Page 22 HARMONY HP2A | Manual THD+N 0.005% (Preamp) 0.01% (Headphone amplifier) Crosstalk ≤ -120dB (Preamp Balanced) ≤ -100dB (Preamp Single Ended) ≤ -100dB (Headphone Balanced) ≤ -65dB (Headphone Single Ended) Signal to Noise ≥ 125dB (Preamp Balanced) Ratio (SNR) ≥ 110dB (Preamp Single Ended) ≥...
- Page 23 HARMONY HP2A | Manual Width: Depth: Remote Control 45 mm 17 mm Height: 150 mm Weight: 157g Power 100 - 127 VAC /220 - 240 VAC, 50/60Hz Power Consumption ≤ 0.5 W in standby. ≤ 8.0 W for the preamplifier.
- Page 24 Normal wear and tear. Consumable parts, such as batteries, unless otherwise stated Limitation of Liability: Our responsibility limited to repairing or replacing the parts. Refer to the QR or https://www.laiv.audio/terms-and-conditions#warranty for the complete warranty terms. 24 / 25...
- Page 25 HARMONY HP2A | Manual 6.2. Contact Information For any inquiries or support related to this product, please don't hesitate to contact our Customer Support Team: Email : support@laiv.audio Website https://www.laiv.audio/contact We're here to assist you with any questions or concerns you may have regarding the product.
