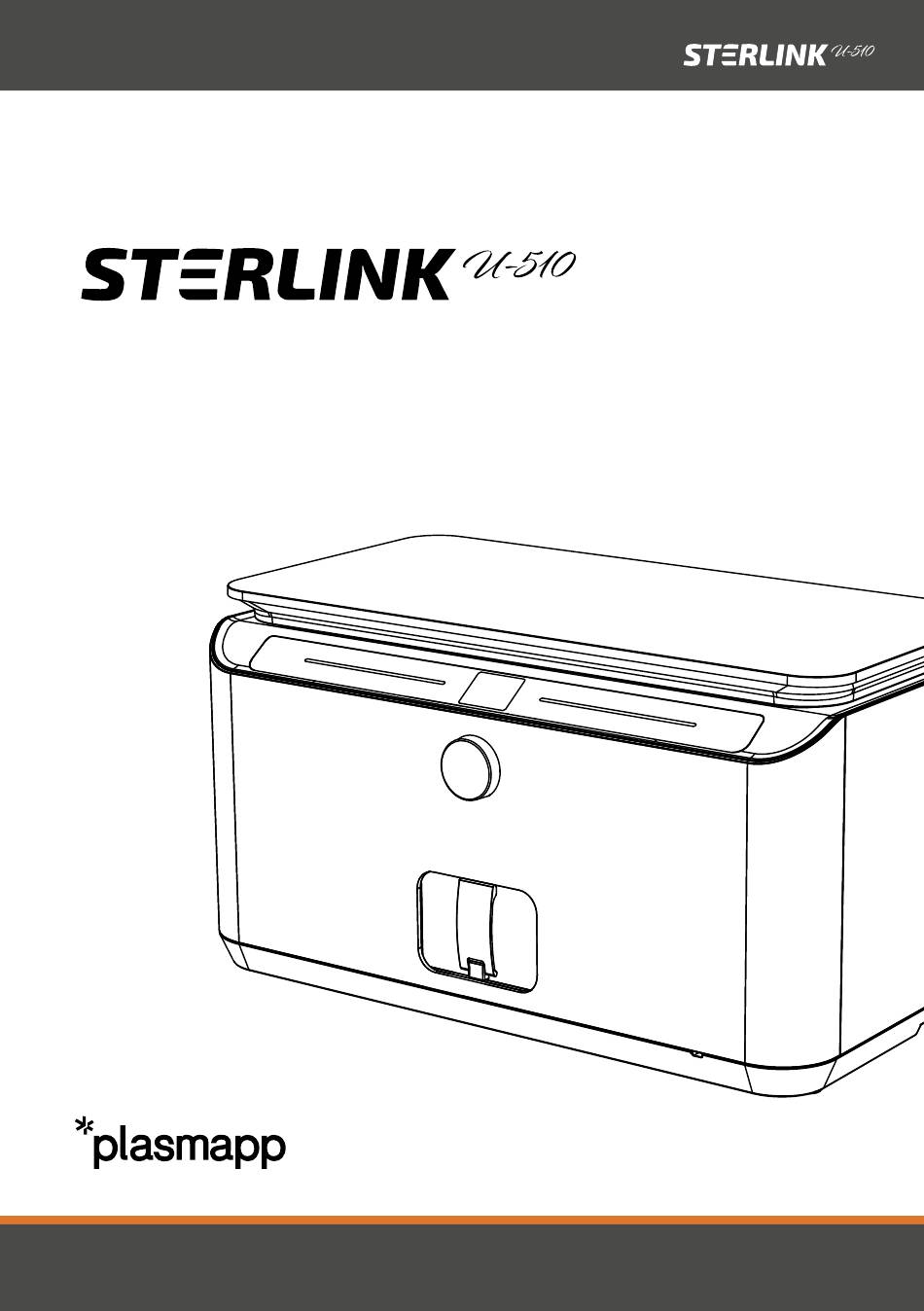

- Page 1 User Manual PLA-UM-STN-001 , Rev01 STERLINK U510 User Manual |...
- Page 2 7. Troubleshooting ················································ ············ ©2024 Plasmapp Co., Ltd. All rights reserved. This publication has intellectual property rights owned by Plasmapp Co., Ltd. You may not copy, reproduce, modify, or translate in any way exploit such content, without prior written permission of the right holder.
- Page 3 ※ For inquiries regarding the operation of the sterilizer or to confirm the safe sterilization of specific types of medical devices, please contact the Plasmapp customer center at +82-1544-0508. For international inquiries, please contact the nearest Plasmapp customer support representative.
- Page 4 2. Safety Information Plasmapp prioritizes user safety above all else and provides information in this section to ensure the safe use of the product. Users must familiarize themselves with the safety information and instructions before using the product. It is imperative to read and understand the warnings, cautions, and notes in the user manual.
- Page 5 Warning! Risk of respiratory irritation. Inhaling hydrogen peroxide vapors can cause severe irritation to the lungs, throat, and nose. If inhaled, move to an area with fresh air. If symptoms are severe or persistent, seek medical advice promptly. Warning! Concentrated hydrogen peroxide is toxic. Ingesting hydrogen peroxide can be life-threatening.
- Page 6 기호 Wear Safety Gloves | Please wear protective gloves. Warning and Precautions | Warning and precautions are displayed in a triangle symbol. General Hazard Sign | Be cautious when handling. High Temperature Warning | Do not touch without protective equipment. Hazardous Chemicals (Corrosive) | Use personal protective equipment.
- Page 7 AC (Alternating current) Manufacturer Date of manufacturing Use-by date Serial number Temperature limit Humidity limit Refer to instructions manual Caution Waste Electrical and Electronic Equipment (WEEE) | There is a risk of electric shock if contacted without electrical safety devices. Unique Device Identifier Batch Code Keep away from sunlight...
- Page 8 Sterilization Procedure As a medical professional, you are likely already well-acquainted with the general principles of sterilization. However, Plasmapp's sterilizer utilizes a unique method that sets it apart from other sterilizers, thus requiring special attention. This sterilizer diffuses hydrogen peroxide vapor inside a chamber or pouch to sterilize medical devices.
- Page 9 Product Composition Power Cable Product Main Unit Tray STERLOAD u30 ※ Separately Packaged Manual Download Card Installation Confirmation Quality Assurance Certificate Certificate STERLINK U510 User Manual |...
- Page 10 Product Rated Specifications Category Details Unit Dimensions 542 (W) × 418 (D) × 308 (H) Chamber Capacity 470 (W) × 185 (D) × 90 (H), 8 mm, ℓ Product Weight Door sensor and vacuum-based Physical opening prevention Safety Devices Rated fuse inserted for Electrical overcurrent protection Minimum Pressure...
- Page 11 Warning! Risk of Electric Shock To avoid the risk of electric shock, this device must be connected only to a power supply with protective grounding. Caution! Check the Usage Method Using this equipment adjacent to or stacked with other equipment may cause malfunctions, which should be avoided.
- Page 12 The list of compatible items continues to grow as more products complete sterilizer testing. New information will be updated. If you have any questions, please contact the medical instrument manufacturer or your local Plasmapp customer service center. Caution! Risk of Damage to Medical devices or Sterilizer Do not sterilize items or materials that are not suitable for use with this sterilizer product.
- Page 13 Items That Cannot Be Sterilized The following items should not be processed with the sterilization system of this sterilizer product: ▪ Single-use items that the manufacturer does not recommend for re-sterilization. ▪ Liquids and powders. ▪ Items or materials that absorb liquids. ▪...
- Page 14 ✓ Note ▪ Remove all blood, tissue, and stains from the instruments using an appropriate cleaning agent, following the instructions provided by the medical instrument manufacturer. ▪ Ensure that the instruments are thoroughly rinsed to remove any residue of the cleaning agent.
- Page 15 5. How to Use the Product Before Starting When using this sterilizer product, you must follow the instructions in "Chapter 4: Preparation of Medical devices" and familiarize yourself with the operating methods and precautions provided in this user manual. Appearance and Dimensions 542 mm(W) 418 mm(D) Width (W)
- Page 16 Product Appearance and Description ① Door : An opening and closing mechanism for inserting the items to be sterilized into the chamber. ② Chamber : The space where the inserted items are sterilized. ③ LED, LCD Display : Monitors the progress. ④...
- Page 17 ✓ Note ▪ The unpacking of the product box should be done by placing the product box on a designated spot and table to avoid impact, and the equipment should be installed and used. The device should be placed at least 5cm away from the back and side walls and should be installed on a flat surface (within 3 degrees).
- Page 18 Installation Environment 50mm 50mm 50mm Operating Range Specification Range Front ≥ 50mm Service Space Back ≥ 50mm Side ≥ 50mm Temperature 5 ~ 40℃ Maximum Relative Humidity Up to 85%, 40℃ Altitude ≤ 2000m Level within 3º Illumination ＞ 200lx Voltage and Frequency 100 - 120 VAC, 50/60 Hz Atmospheric Pressure Conditions...
- Page 19 Starting and Preheating Turn on the power switch on the side of the sterilizer. Preheating. . Once the power is on, preheating will automatically commence. 12:00 ※ It takes about 15 minutes, but this can vary depending on the installation environment. ※...
- Page 20 Loading the Sterilant Cartridge Lower the cover of the sterilant storage compartment at the front of the product. Grab the Door Handle and lift to open the storage compartment. Push the sterilant cartridge into the opened storage compartment until it clicks into place. ※...
- Page 21 Sterilization Open the door and load the items to be sterilized. After loading, close the door and turn the dial to select the desired sterilization process. Advanced Mode Standard Mode Press the dial to start the sterilization Sterilization Sterilization process. Once the sterilization process is Advanced Mode Standard Mode...
- Page 22 If any malfunction is detected, stop the operation immediately and contact the responsible person or administrator for proper action. ▪ Only authorized personnel from the management or Plasmapp Co., Ltd. should disassemble, repair, or modify the equipment. ▪ If an abnormal sterilization process occurs (e.g., power outage, error, indicator not changing color, etc.), the process must be repeated until normal operation is...
- Page 23 ※ During the use of the sterilization device, the following precautions must be taken: ▪ Always check the overall status of the sterilization device and whether the door is opened or closed. ▪ If any abnormalities are found in the sterilization device, do not forcibly operate it and contact a professional.
- Page 24 Cleaning Method Do not use organic solvents other than alcohol solutions for cleaning the exterior and interior. ▪ For general dust, lightly wipe off the contaminants with a wet wipe. ▪ If the contamination is severe or cannot be removed with a wet wipe, dampen a cleaning sponge with water, wipe, and then remove any remaining stains with a cleaning wet wipe or a soft cloth.
- Page 25 Storage Method The storage location for the product should meet the following criteria: ▪ Consider the movement and flow of the people using the product and store it in a place with sufficient area and space. ▪ Ensure the product is not in direct contact with the ground. Do not drop the product from high places or apply excessive force during storage.
- Page 26 7. Troubleshooting ▪ Please refer to the following solutions for the respective issues. ▪ If the problem persists or recurs, contact the manufacturer. Phenomenon Description How to Take Action Empty Cartridge ▪Replace cartridge Expired Cartridge ▪Replace cartridge Shutdown occurred during ▪Restart after checking the process power cable...
- Page 27 Attachment A. Sterilant Cartridge, Tray A1. Sterilant Cartridge Name Description/Specifications Picture Sterilant Cartridge · Sterilant: Hydrogen Peroxide STERLOAD u30 (Concentration: 58~59.5%) *Purchased separately A2. Dedicated Tray Name Description/Specifications Picture Dedicated Tray · A tray designed to facilitate the diffusion of hydrogen peroxide inside Tray the chamber ·...
- Page 28 Attachment B. Routine sterilizer maintenance (Filter) ▪ Regular replacement in every 12 months required ▪ After installation change filters every 12 months ▪ Use 12 month maintenance kit to change filters ▪ If the any issues, contact the manufacturer. B1. Configuring Maintenance Kits Name Description/Specifications ·Shelf life : None...
- Page 29 ※ The manufacturer is not responsible for any accidents, such as product damage, resulting from the use of this product in ways other than those specified in this manual. Manufacturer Company Plasmapp Co., Ltd. Address (41061) 102 Cheombong-ro, Dong-gu, Daegu Website www.plasmapp.com...
- Page 30 Plasmapp Co., Ltd. (06120) 13F, 476, Gangnam-daero, Gangnam-gu, Seoul, Republic of Korea www.plasmapp.com PLA-UM-STN-001 , Rev01 | STERLINK U510 User Manual...
