Installation

Installation Procedures

1. Mounting KY-F560 Camera on this Unit.

2. Mounting the Lens onto the Camera.
3. Mounting this Unit onto the Tripod.
4. Mounting VF-P400 4-inch Viewfinder on this Unit.

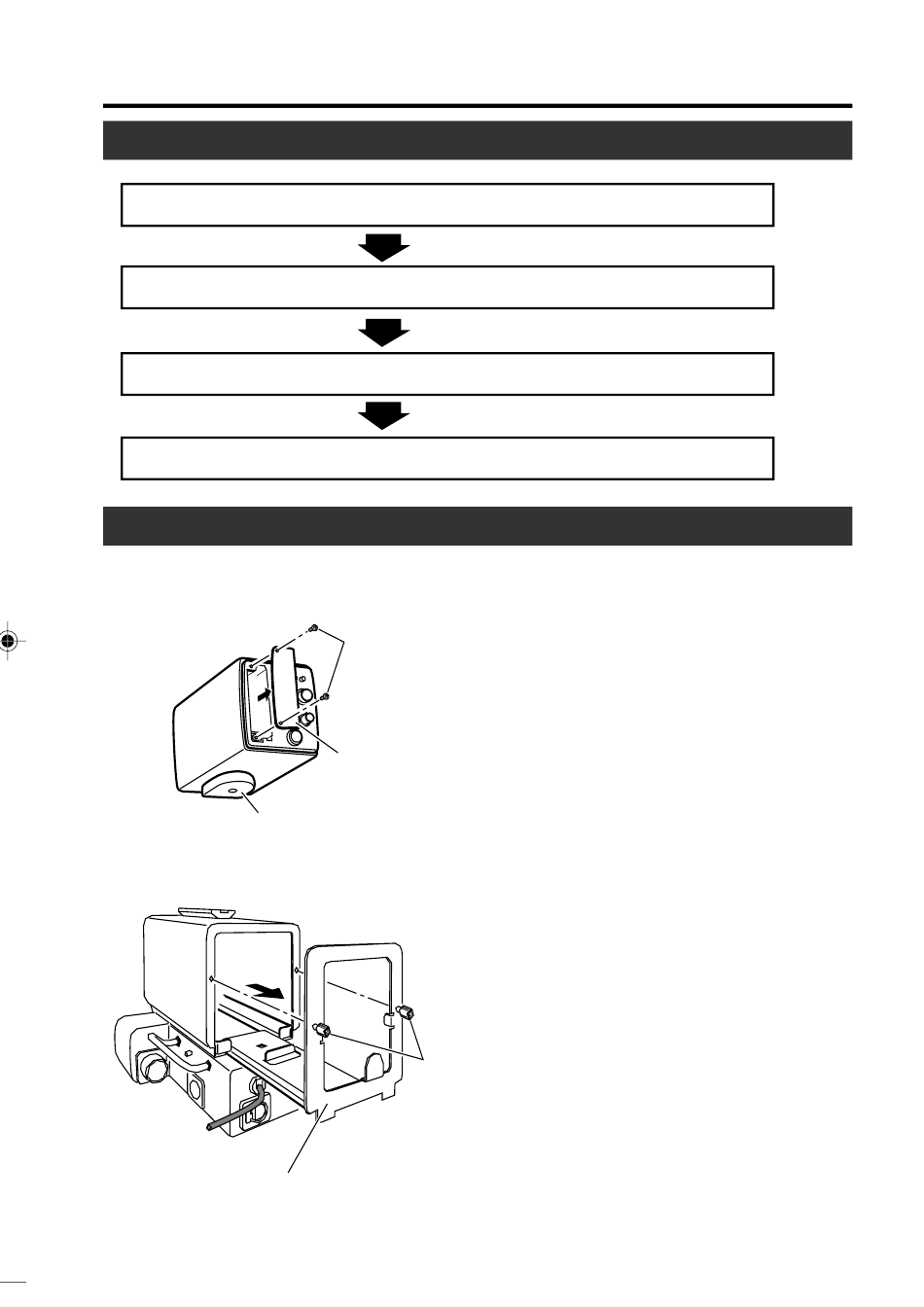

Mounting KY-F560 Camera on this Unit
1.
Camera mounting bracket
2.
Camera mounting frame
14
All manuals and user guides at all-guides.com
Screw Å
Slot cover
Screw ı
1.
Preparations to be done on KY-F560 cam-
era.
● If the lens is attached to KY-F560 cam-
era, remove and place it aside.
● Attached the camera mounting bracket
at the bottom of the camera.
● Remove 2 screws Å from the rear of
the camera and take out the slot cover.
2.
Loosen 2 screws ı of this unit and pull
out the camera mounting frame.
