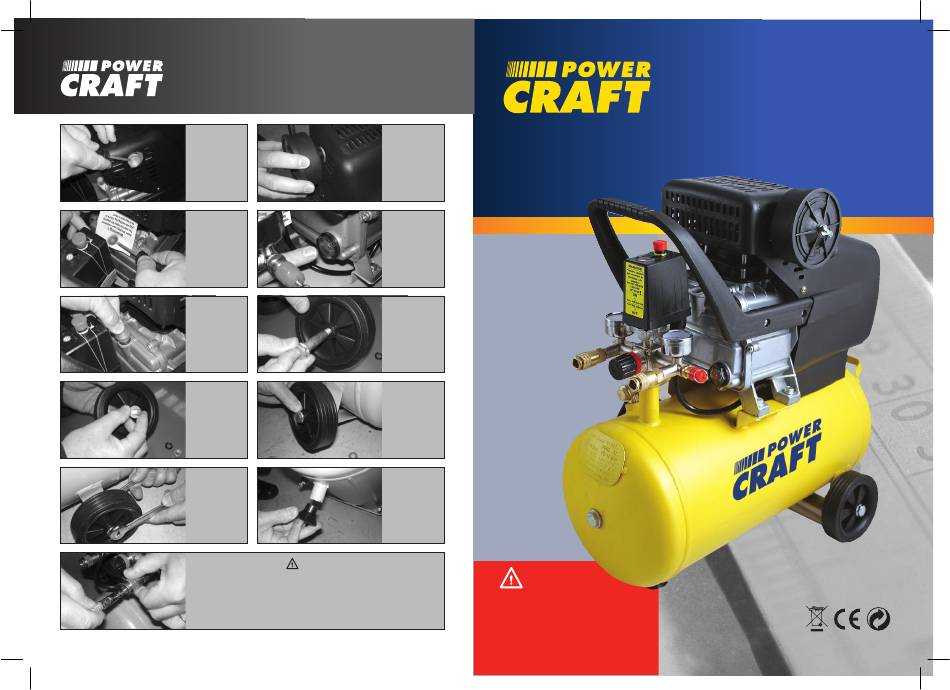

QUICK REFERENCE GUIDE
PRIOR TO USING YOUR COMPRESSOR, PLEASE STUDY THESE
SUMMARY ASSEMBLY INSTRUCTIONS.
1. Remove
plastic bung
from air intake.
3. Remove oil
filler travel bung
from top of
sump.
5. After topping
up with oil fit
sump breather
plug.
7. Fit plain
washer over
threads.
9. Fit plain
washer, spring
washer and nut.
Then tighten
with two
spanners.
11. To fit the air hose into
the quick release coupling,
grip the hose firmly and
push the fitting into the
quick fit coupler on the
air compressor.
Ver. 061110
2. Screw air
intake filter into
where bung
removed.
4. Top up sump
so oil level is
level with red
spot. Do not
overfill. Refer
to manual for
correct oil grade.
6. Push axle bolt
through wheel.
Ensure the long
wheel stem is
towards the
wheel mounting
bracket.
8. Push wheel
and axle onto
wheel bracket.
10. Push rubber
foot into socket.
SAFETY TIP
To remove the hose, remember that this is
under pressure so stand to the side. Hold
the hose firmly with one hand and slide the
collar of the coupler in the direction of the
pressure switch to disconnect. You will hear a
gush of air as the hose disconnects.

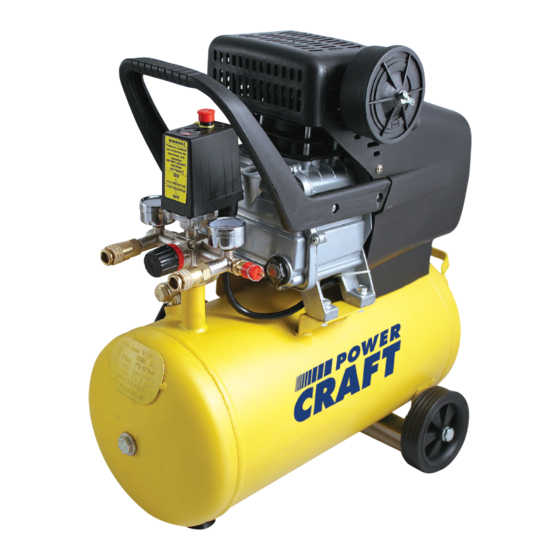

2.5HP AIR
COMPRESSOR
WITH 6 PIECE KIT
WARNING
BEFORE OPERATING THIS
APPLIANCE PLEASE READ
THESE INSTRUCTIONS
CAREFULLY
PLUS AIR BRUSH KIT
Advertisement
Related Manuals for Power Craft PC270/24
Summary of Contents for Power Craft PC270/24
- Page 1 QUICK REFERENCE GUIDE PRIOR TO USING YOUR COMPRESSOR, PLEASE STUDY THESE 2.5HP AIR SUMMARY ASSEMBLY INSTRUCTIONS. COMPRESSOR 1. Remove 2. Screw air plastic bung intake filter into from air intake. where bung WITH 6 PIECE KIT PLUS AIR BRUSH KIT removed.
- Page 2 WARRANTY TERMS AND CONDITIONS Item PC270/24 • Power Craft products are covered by a 36 month warranty from the date of purchase. This warranty Maximum working pressure 8 bar / 115psi applies to all material defects, which may arise. Pump air displacement 9.5CFM...
- Page 3 PARTS LIST Dress Properly Do not run the compressor in damp conditions Do not wear loose clothing or jewellery; it The compressor should never be used in an area can get caught in moving parts. where it could be exposed to water or excessively Designation Designation Non-skid safety footwear is recommended...
- Page 4 Consider the work environment Ensure that the compressor draws clean air PARTS DIAGRAM Make sure the area is clear of obstacles, which could For the correct function and longevity of your air cause you to trip and fall. compressor it is important that the air, which is drawn into the compressor is clean.
- Page 5 TROUBLE SHOOTING (CONT) The safety blow off valve The compressor is equipped with a safety valve (see FAULT PROBABLE CAUSE REMEDY fig 2). If the pump were to continue operating passed the maximum pressure, due to a defective pressure switch, the safety valve would open and eject air The compressor doesn't seem The tank is full of water due Open the air tap and release the pressure.
- Page 6 Drain the air receiver (tank) weekly Maintain tools with care TROUBLE SHOOTING Compressing air causes moisture, which is present Keep the air compressor clean for better and safer in the air to condensate on the inside of the air performance. FAULT PROBABLE CAUSE REMEDY...
