Programmable 998N
Programmable Upright Bike (pc)

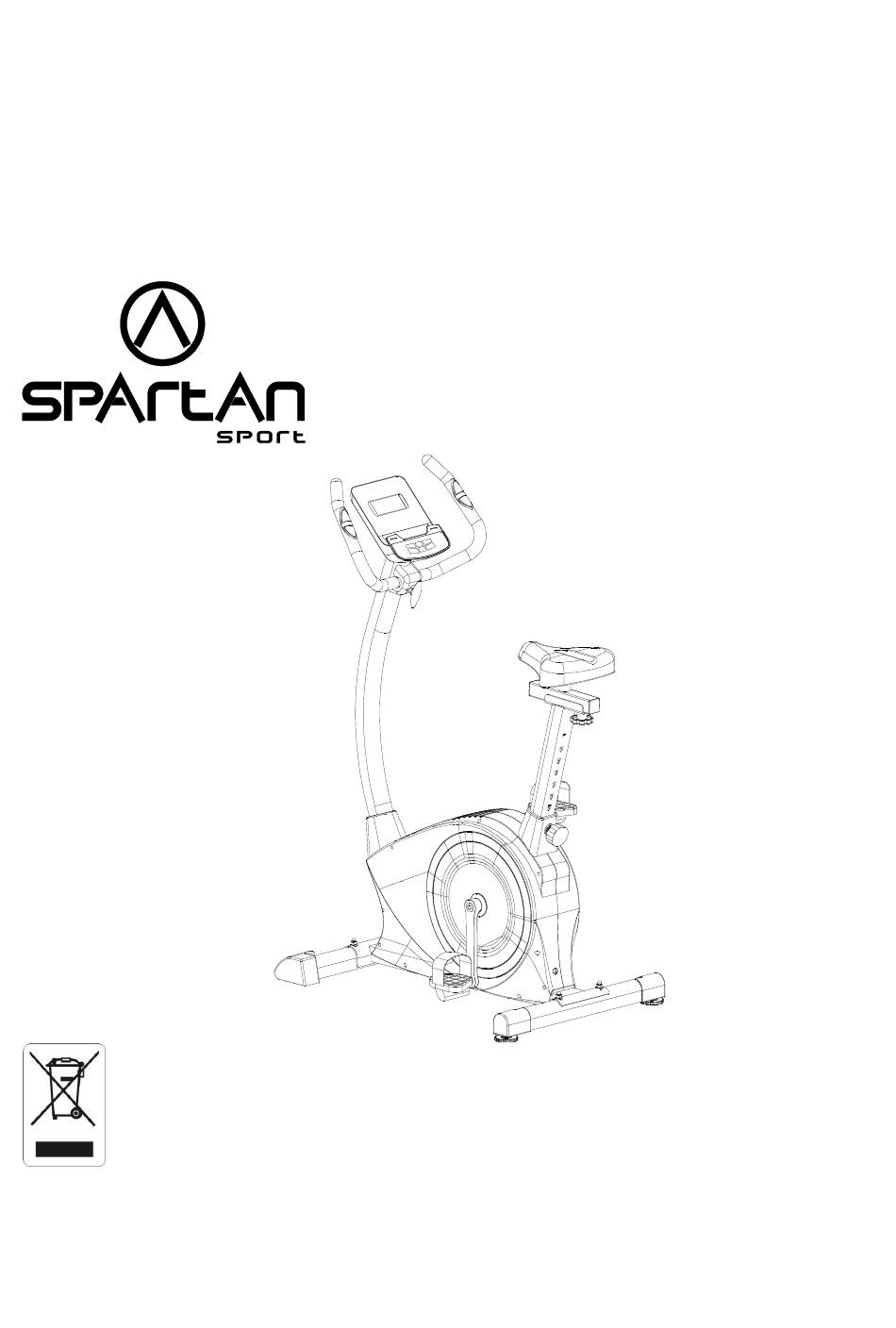

ITEM NO.: 998N
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 998N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPARTAN sport 998N

Summary of Contents for SPARTAN sport 998N

  • Page 1 Programmable 998N Programmable Upright Bike (pc) ITEM NO.: 998N OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without...
  • Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 2 PARTS LIST ------------------------------------------------------------------------------- 3 HARDWARE LIST ----------------------------------------------------------------------- 5 TOOLS -------------------------------------------------------------------------------------- 5 EXPLODED VIEW ----------------------------------------------------------------------- 6 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7 OPERATING THE COMPUTER ------------------------------------------------------ 17 HOW TO MOVE THE BIKE ------------------------------------------------------------ 21 ADJUSTMENTS -------------------------------------------------------------------------- 22 MAINTENANCE -------------------------------------------------------------------------- 23 TROUBLESHOOTING ------------------------------------------------------------------ 23 WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 24...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.
  • Page 4 PARTS LIST Description Qty No. Description 001 Adjustable Leveler M10 2 025 Hexagon Nylon Nut M8 (S13) Hexagon Socket Pan Head Cap 6 026 Seat Sliding Tube Bolt M8x15 003 Hexagon Nut 1/2" (S15) 1 027 Seat Post 004 AC Adapter (2000 mm) 1 028 Washer Ø10xØ20x2t Computer Extension Wire II 1 029 Seat Adjustment Knob M10...
  • Page 5 PARTS LIST Description Qty No. Description Cross Recessed Pan Head 049 Big Curve Washer Ø8xØ20x2.0t 4 066 Tapping Screw ST2.9x12 050 Carriage Bolt M8x65 4 067 Sensor with Wire (L=300 mm) 051 Screw ST4.2x20 10 068 Main Frame 052 Front Left Stabilizer End Cap 1 069 Seat Post Knob M16x1.5 Cross Recessed Pan Head Bolt 053 Front Stabilizer (55x50x1.5T)
  • Page 6 HARDWARE LIST (48) Cap Nut (50) Carriage Bolt (49) Big Curve Washer 4 PCS 4 PCS 4 PCS TOOLS Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver 1 PC S10, S13, S14, S15 1 PC...
  • Page 7 EXPLODED VIEW...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1 Position the Front Stabilizer (53) in front of the Main Frame (68) and align bolt holes. Attach the Front Stabilizer (53) onto the front curve of the Main Frame (68) with two Carriage Bolts (50), two Big Curve Washers (49), and two Cap Nuts (48). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 9 STEP 2 Position the Rear Stabilizer (79) behind the Main Frame (68) and align bolt holes. Attach the Rear Stabilizer (79) onto the rear curve of the Main Frame (68) with two Carriage Bolts (50), two Big Curve Washers (49), and two Cap Nuts (48). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 10 STEP 3 The Foot Pedals and Pedal Straps are marked “R” for Right and “L” for Left. Select the Left Foot Pedal Strap (72) which has L marked on the side of the strap. Snap the three hole end of the strap onto the inside edge of the Left Foot Pedal (72). Snap the other end of the strap onto the outside edge of the Left Foot Pedal (72).
  • Page 11 STEP 5 Remove three Hexagon Nylon Nuts (25) and three Washers (12) from underside of the Seat Cushion (22). Remove hexagon nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided. Guide bolts on underside of the Seat Cushion (22) through holes on top of the Seat Sliding Tube (23), attach with three removed Hexagon Nylon Nuts (25) and Washers (12).
  • Page 12 STEP 7 Slide the Seat Post Cover (30) onto the tube of the Main Frame (68). STEP 8 Insert the Seat Post (27) into the seat post bushing on the tube of the Main Frame (68) and then attach the Seat Post Knob (69) onto the tube of the Main Frame (68) by turning it in a clockwise direction in the suitable position.
  • Page 13 STEP 9 Remove six Hexagon Socket Pan Head Cap Bolts (2) and six Washers (12) from the tube of the Main Frame (68). Remove bolts with the Allen Wrench provided. STEP 10 Slide the Handlebar Post Cover (13) up to the Handlebar Post (11).
  • Page 14 STEP 11 Connect the Computer Extension Wire I (62) from the Main Frame (68) to the Computer Extension Wire II (5) from the Handlebar Post (11). Insert the Handlebar Post (11) onto the tube of the Main Frame (68) and align bolt holes. STEP 12 Attach the Handlebar Post (11) onto the tube of the Main Frame (68) with six Hexagon Socket Pan Head Cap Bolts (2) and six Washers (12) that were removed.
  • Page 15 13-1 13-2 13-3 STEP 13 13-1 Insert the Hand Pulse Sensor with Wires (16) through into the hole on the Handlebar Post (11) and pull them out from the top end of the Handlebar Post (11). 13-2 Place the Handlebar (15) through clamp on the Handlebar Post (11) with hand pulse sensors facing the seat.
  • Page 16 STEP 14 Remove four Cross Recessed Pan Head Bolts (9) from the Computer (6). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. STEP 15 Connect the Computer Extension Wire II (5) and Hand Pulse Sensor with Wires (16) to the wires that come from the Computer (6).
  • Page 17 STEP 16 Plug one end of the AC Adapter (4) into the power jack of the Power Supply Wire (71) on the rear of the left cover. Before plugging in, make sure to check carefully the specifications on the Adapter. Plug the other end of the AC Adapter (4) into the electrical wall outlet.
  • Page 18 OPERATING THE COMPUTER KEY FUNCTIONS: ST/SP (START/STOP): Press the ST/SP key to start or stop training. Start the body fat measurement and quit the body fat program. Operates only when in stop mode, by holding the ST/SP key for three seconds to reset all data values to zero except the ODO (ODOMETER) data values.
  • Page 19 Things You Should Know Before Exercising The values calculated or measured by the computer are for exercise purpose only, not for medical purpose. PROGRAMS SELECTION: There are 13 programs including 1 Manual Program, 6 Pre-set Programs, 1 Body Fat Ratio Program, 1 Target Heart Rate Program, 3 Heart Rate Control Programs, and 1 User Setting Program.
  • Page 20 Body Types: There are 5 body types divided according to the FAT% calculated. BMR: Basal Metabolism Ratio. BMI: Body Mass Index. Target Heart Rate Program (P9) Setting Parameter for TARGET H.R. Selecting the TARGET H.R. Program (P9) by using the ＋ or － key then press the ENTER key to enter into the program.
  • Page 21 User Setting Program (P13) Program 13 is the user setting program. Selecting the User Setting Program (P13) by using the ＋ or － key then press the ENTER key to enter into the program. The first parameter "Time" will flash so the value that can be adjusted by using the ＋ or － key. Press the ENTER key to save values and move to the next parameter which can be adjusted.
  • Page 22 HOW TO MOVE THE BIKE Handlebar Transport Wheel This upright bike has a pair of Transport Wheels built into the front stabilizer and can be carefully tilted onto its Transport Wheels for easy moving and storage. To move the upright bike, firmly grasp the Handlebar with both hands. Next, carefully push the upright bike down until it rolls freely on the Transport Wheels.
  • Page 23 ADJUSTMENTS Adjusting the Adjustable Handlebar Hold the adjustable handlebar while loosening the handlebar T-Knob. Adjust the adjustable handlebar to the desired position and turn the handlebar T-Knob in a clockwise direction to tighten. Handlebar T-Knob NOTE: Continue to turn the handlebar T-Knob until the adjustable handlebar is secure before exercising.
  • Page 24 MAINTENANCE Cleaning The upright bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the upright bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.
  • Page 25 WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
