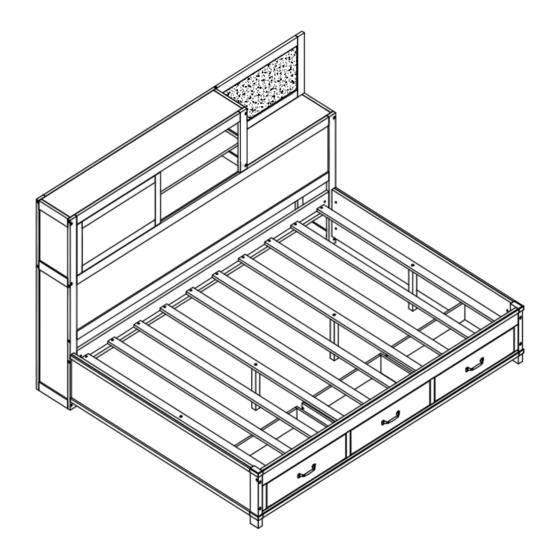

- Page 1 Bed Frame with Shelves & Drawers HU10891-F THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 Part List (Box 1) Footboard Right (front) post leg at footboard Right (back) post leg at footboard Left & Right wood bar Middle wood bar Side drawers Back drawers Bottom drawers Left leg at headboard Leg post at footboard Top panel at headboard Back post at headboard...
- Page 5 Part List (Box 1) Back post leg at footboard Small shelf at side rail Door Panel Bottom panel at side rail Wood bar Cork board (bulletin board) Panel at side rail Panel at side rail Support wood at side rail 43 X4 Support leg...
- Page 6 Part List (Box 2) Wood bar under drawers Right side rail Front drawers Wood bar at side rail Left side rail Bottom wood bar with groove Bottom panel of side rail Top wood bar with groove Big shelf of side rail Bottom wood bar at side rail...
- Page 7 Part List (Box 2) Bottom wood bar of side rail Top wood bar of rail Wood bar at headboard Wood bar with groove Wood bar with groove Wood bar at headboard Front wood bar at side rail Back wood bar at side rail Slats Slats Panel at headboard...
- Page 8 Hardware List (Box 1) Dowel Ø8*30mm Screws M6*45mm Bolts M6*100mm Bolts M6*90mm Bolts M6*70mm Bolts M6*30mm Cross dowel M6*13mm Cross dowel Ø10*10mm Flat head screw #8*60mm Flat head screw #8*30mm Flat head screw #8*25mm ASSEMBLY TOOLS REQUIRED (NOT INCLUDED)
- Page 9 Hardware List (Box 1) Flat head screw #8*15mm Flat head screw #7*12mm Sliding Rails Sliding Rails Flat head screw #8*50mm Hinge L Allen key 60*22*4mm Handle Sliding Door Roller Sliding Door Roller Flat head screw #7*12mm Flat head screw #8*40mm ASSEMBLY TOOLS REQUIRED (NOT INCLUDED)
- Page 13 Note: Do not lock the bolt.
- Page 16 13.1...
- Page 22 Note: Lock the bolt.
- Page 23 Pull on the groove. The wheel needs to run on the groove.
- Page 33 Drywall Turn off plastic millet Locate stud...
- Page 34 FINAL...
- Page 35 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 36 USA office: Fontana AUS office: Truganina GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom If you're having difficulty, our friendly USA:cs.us@costway.com AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com...
