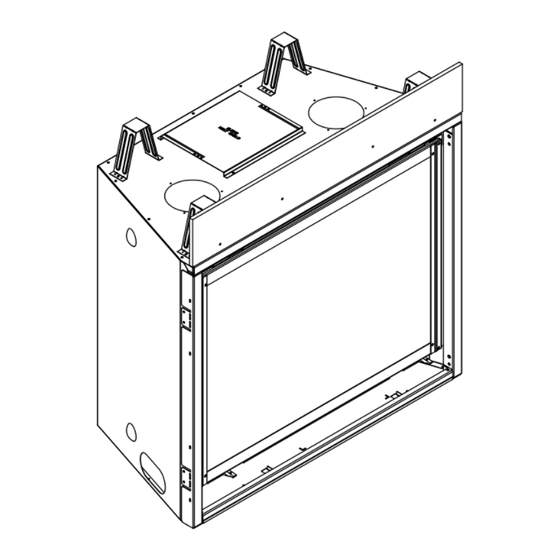

Majestic MER42P Series Owner's Manual

Hide thumbs Also See for MER42P Series:

Advertisement

Quick Links

Download this manual
Place serial number here
CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Pour demander un exemplaire en français de ce Manuel, visitez
www.majesticproducts.com.
Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner's Manual • 2596-981 Rev. E • 8/24
Owner's Manual
Operation and Maintenance
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.A.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MER42P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Majestic MER42P Series

Summary of Contents for Majestic MER42P Series

  • Page 1 Decorative barrier front must be ordered separately at Pour demander un exemplaire en français de ce Manuel, visitez time of appliance purchase. See Section 3.A. www.majesticproducts.com. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 2 Serial Number CANADA (Modèle): XXXXXXXXX ALTITUDE:......0-2000 FT....0-4500 FT. MAX. INPUT BTU/h ....xx,xxxx ....xx.xxx Serial: MIN. INPUT BTU/h ....xx.xxx......xx.xxx (Série): ORIFICE SIZE ......#xx DMS ....#xx DMS Xxxx-xxx Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 3 C. Contact Information ......29  = Contains updated information. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 4 Firebox and heat exchanger All purchased replacement parts and optional accessories None 1 Year All purchased replacement parts and optional accessories Page 1 of 2 4021-645N 12/23 Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 5 THE EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. 4021-645N 12/23 Page 2 of 2 Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 6 Installation and service of this appliance should be performed by qualified personnel. Hearth & Home Technologies recommends HHT Factory Trained or NFI certified professionals. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 7 • Never leave children alone near a hot fireplace, whether Figure 3.1 Clear Space Requirement - All Models operating or cooling down. • Teach children to NEVER touch the fireplace. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 8 • Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 9 G. Lighting Instructions (IPI) Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 10 Air will be flowing from both the appliance opening and the passive heat opening. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 11 Slide the ON/REMOTE/OFF switch to the ON position. NOTICE: Some functionality will be lost when using battery backup including fan, lights, or any other auxiliary functions that require household 110-120 VAC power. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 12 - Be aware the appliance may be HOT, use switch, IFT-RC400 or IFT-RC150. The wired wall care in accessing the IFT-ECM. switch is NOT available if a Power Vent is used. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 13 • LED Illuminated Embers are a standard feature on these models. • The intensity of the these embers may be controlled through the remote control included with the fireplace. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 14 Valve Plate Assembly As needed Removal LATCHES Electrical Service As needed (BOTH BOTTOM GLASS FRAME and Repair AND TOP) TABS GLASS ASSEMBLY Figure 4.1 Fixed Glass Assembly Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 15 If not using your fireplace for an extended period of time (summer months, vacations/trips, etc), to prevent unin- tended operation: • Remove batteries from remote controls. • Unplug 6 volt adapter plug. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 16 • Remove all foreign objects. ensure the lighting of the main burner occurs within four • Verify unobstructed air circulation. seconds of the main gas valve opening. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 17 Disassemble the LED assemblies from the valve plate. • See replacement parts list for LED part numbers. Note: Replace valve plate gasket, LED Ember tub and LED accent tub gaskets, if necessary. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 18 Installer’s Manual for this the touch. appliance. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.majesticproducts.com to locate a dealer. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 19 90 seconds. If this failure appliance did not start. Try again period of appliance inactivity. persists, contact dealer for service. by pressing Flame On. Gas control system failure. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 20 If open or shorted, replace valve. Check valve harness wire continuity, if open replace 6-pin harness. Pilot won’t light, there is no noise Spark coil failure. Replace ECM. or spark, 2 Red/2 Green Lockout. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 21 Damaged pilot assembly. tance between tip of sense rod and IFT-ECM connector, should be less than 1 ohm. Replace pilot assembly if damage is de- tected. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 22 PH-MR Passive Heat-Front, Side or Top Discharge PH-SIDETRIM Passive Heat registers for side discharge (requires PH-MR) PH-FRTTRIM-36, PH-FRTTRIM-42 Passive Heat registers for front discharge (requires PH-MR) Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 23 Service Parts Beginning Manfacturing Date: Jun 2023 Ending Manufacturing Date: Active Meridian Platinum 36” Gas Fireplace - DV Log Set Assembly Part number list on following page. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 24 Qty 2 req 2155-047 Glass Clip Assembly (Bottom) Qty 2 req 2155-045 Mineral Wool 050-721 Seal Cap Qty 2 req 4031-221 Illuminated Embers Glass Media 4lbs. 2680-753 Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 25 Service Parts Beginning Manfacturing Date: Jun 2023 Ending Manufacturing Date: Active Meridian Platinum 42” Gas Fireplace - DV Log Set Assembly Part number list on following page. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 26 Qty 2 req 2581-400 Glass Clip Assembly (Bottom) Qty 2 req 2155-045 Mineral Wool 050-721 Seal Cap Qty 2 req 4031-221 Illuminated Embers Glass Media 4lbs. 2680-753 Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 27 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 3A fuse, 3/4” long Additional service part numbers appear on following page. Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 28 Touch Up Paint TUP-GBK-12 Conversion Kits Conversion Kit NG NGK-MID Conversion Kit Propane LPK-MID Pilot Orifice, NG SRV593-528 Pilot Orifice, Propane SRV593-527 Regulator, NG NGK-DXV-50 Regulator, Propane SRVLPK-DXV-50 Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
  • Page 29 This product may be covered by one or more of the following patents: (United States) 7077122, 7074035, 7234932, 7322819, 7422011, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945F Printed in U.S.A. - Copyright 2024 Majestic • MER36PN, MER36PL, MER42PN, MER42PL Owner’s Manual • 2596-981 Rev. E • 8/24...
