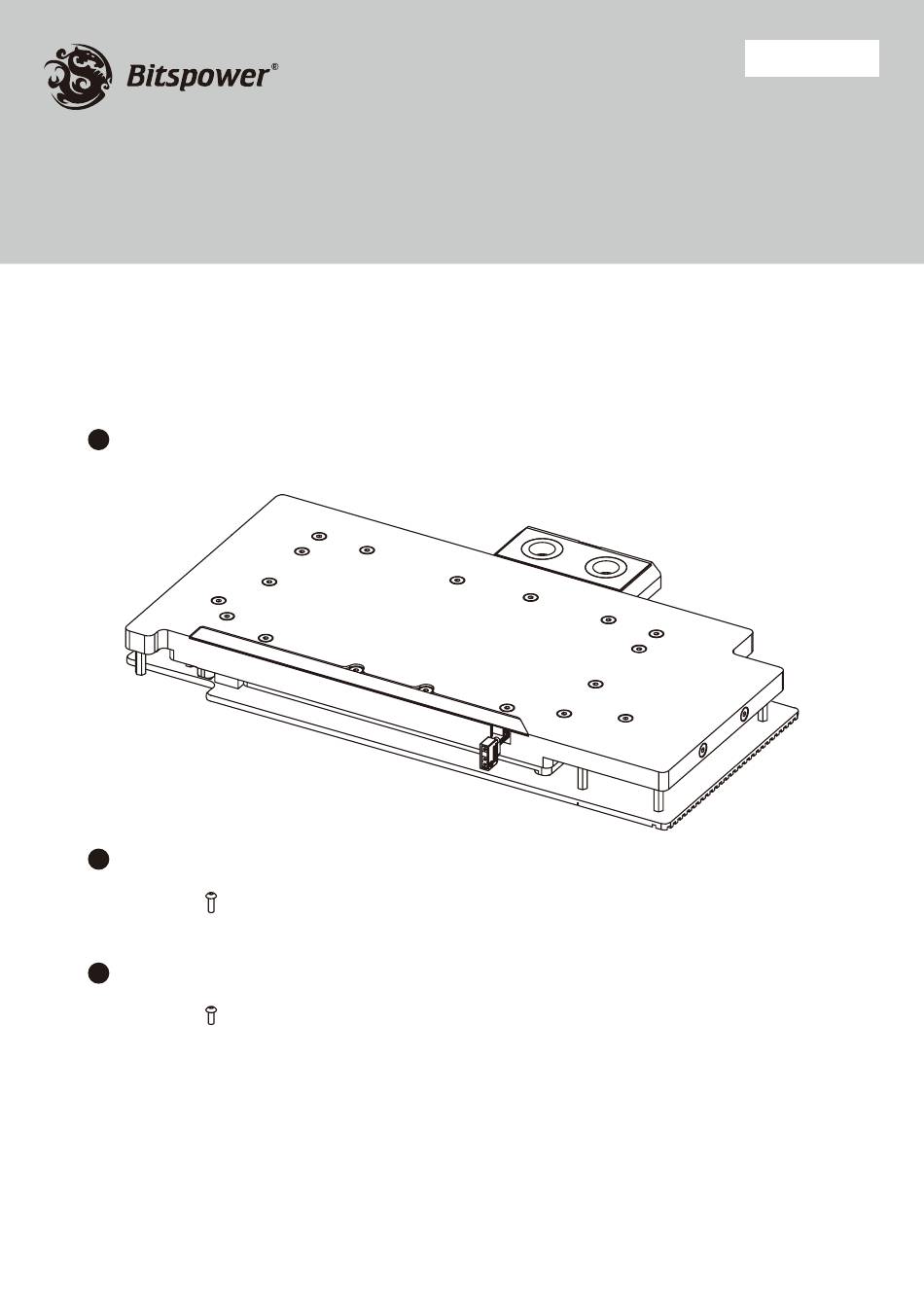

- Page 1 EN ver.2 BPM-VG4090MSR Bitspower Nebula VGA Water Block for MSI GeForce RTX 4090 GAMING series (incl. Improved backplate ) Accessories BP-VG4090MT-V2 1 PCS M2.5 x 8 Screw 11 PCS Two screws fastened in advance. M2.5 x 6 Screw 2 PCS...
- Page 2 Assembly steps step 1 Backplate step 2 Two screws fastened in advance. (Not included) Before installing the graphics c a r d , p l e a s e m a k e s u r e t h a t the GPU has been coated with thermal paste.
- Page 3 Assembly steps step 4 step 5 Original bracket(Not included) Original screw(Not included) Original I/O(Not included) Digital RGB PIN on motherboard or other equipment. BPTA-DRGBMFC motherboard DRGB Multi Function Controller (Not included) [ 3 ]...
- Page 4 Use an appropriate amount of thermal paste.(Not Include) Make sure the correct thermal pads are in the appropriate locations. 1.0 mm Thermal pad 1.5 mm Thermal pad Name Specification Quantity Thermal pad 1 15×37×1mm Thermal pad 2 6×52×1mm Thermal pad 3 14×50×1mm Thermal pad 4 13×16×1mm...
- Page 5 Use an appropriate amount of thermal paste.(Not Include) Make sure the correct thermal pads are in the appropriate locations. 1.0 mm Thermal pad 1.5 mm Thermal pad Name Specification Quantity Thermal pad 1 15×37×1mm Thermal pad 2 6×52×1mm Thermal pad 3 14×50×1mm Thermal pad 4 13×16×1mm...
- Page 6 As such, if you feel uncomfortable with the steps involved in installing this product, please reach out to our customer support for assistance. We recommend the use of a leak tester, such as our Bitspower Digital Leak Detector, after completing the assembly of your liquid cooling loop to make sure there are no leaks prior to filling up your loop with coolant.
