SharkNinja Operating POWERDETECT IP3000 Quick Start Manual

Please be sure to read and save the warnings on other side prior to using your unit.
How to set up and use the IP3000 Series Shark® POWERDETECT™ Clean & Empty Vacuum.

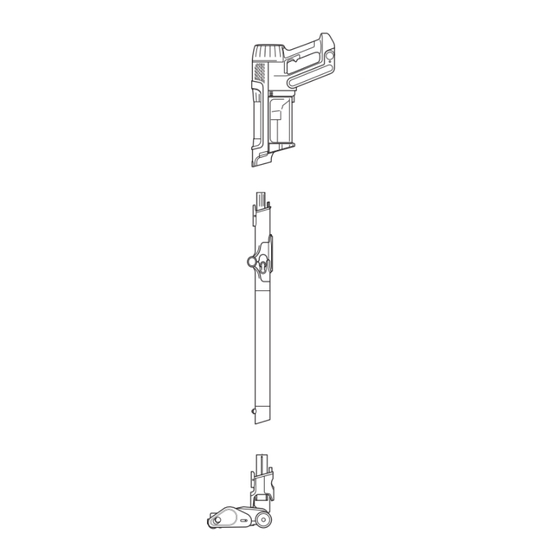

1. Slide the Wand onto the neck of the Floor Nozzle until it clicks into place.
2. Align the Hand Vacuum nozzle opening with the top of the wand and slide
it on until it clicks into place.
3. Make sure the Dock is facing upright. Slide the Charging Post over the
mount on front of dock until it clicks.
4. Place the dock on the floor near a wall outlet. Plug the Power Cord into the
outlet, then connect the cord to the port on the back of the charging post.
5. Store the crevice tool accessory on the mount on the dock.
6. Flip up the dial handle on the Odor Neutralizer Technology cartridge, align
the teal arrows, then insert the cartridge into the dock.
Handheld
Vacuum
2.
(Click)
MultiFLEX®
Wand
Dock
1.
(Click)
Floor Nozzle
EMPTYING THE DOCK DUST BIN
To remove the bin, press the dust
bin release button and lift the bin
out by the handle.
AUTO-EMPTY DOCK
CHARGING
CHARGING ON DOCK
To charge the vacuum on the dock,
make sure the dock is plugged into
the wall and place the vacuum on
the dock cradle.
NOTE: Vacuum battery does not come fully
charged. Please charge battery before use.
QUICK START GUIDE
ASSEMBLY
NOTE: You may
purchase an extra
battery and charger
for your vacuum
3.
cleaner from
Charging Post
sharkclean.com
NOTE: For proper
6. operation, ensure
Odor
all components are
Neutralizer
completely
Technology
connected and
Cartridge
clicked into place.
4.
Power
Cord
5.
Accessory
Storage
To empty the bin, hold it over the
trash and press the release button
on the side. The bottom will open to
release the debris.
QUIET MODE
ACTIVATION
QUIET MODE SWITCH
Use Quiet mode to dock and charge
the vacuum without automatic
evacuation. To activate Quiet mode,
move the slider to the right. To
deactivate, move the slider to the
left. Do not activate Quiet mode
when the vacuum is evacuating.
POWER ON/OFF
Press the On/
Off button on the
handle to turn on
power. To turn off
power, press the
button again.
BATTERY CHARGING INFORMATION
Full Charge Half Charge
MODES EXPLAINED
ECO MODE Maximizes runtime
DETECT MODE
Detect technology is ONLY activated in Detect mode and is activated automatically
when the unit is in use.
Dirt Detect: Identifies
dirtier high-traffic areas and
automatically boosts suction
power to pull in hidden dirt.
Clean Floor Medium Dirt
Low Suction Medium Suction
EDGE DETECT
Edge Detect: Dynamically detects edges and corners while
maximizing suction power to remove stubborn dirt.
Floor Detect : The brushroll responds to surface changes and
™
automatically adjusts to optimize your clean.
Light Detect : Senses low-light situations and automatically
™
illuminates dark areas to help you spot debris.
BOOST MODE Maximizes suction
IMPORTANT: FILTER CLEANING
1. To access the HEPA filter, press
the dust cup empty button to
release the dust cup.
NOTE: Rinse the HEPA filter at least once a month to maintain suction power. More frequent
cleaning may be necessary with heavy use. To clean the filter, rinse it with water only and
allow it to air-dry completely for up to 48 hours before reinstalling. Tap off loose dirt between
washes when needed.
IMPORTANT: DO NOT use soap when cleaning the filters. Use water only. The vacuum will not
have suction if the post-motor filter is not installed. Ensure that all filters are installed before using.
MODE SELECTION TRIGGER
To toggle
between ECO,
DETECT, and
BOOST modes,
press the mode
selection trigger.
Low Charge No Charge
SENSES YOUR ENVIRONMENT TO
OPTIMIZE YOUR CLEANING EXPERIENCE.
NOTE: Hand Vacuum
Heavy Dirt
UI and Nozzle Lights
High Suction
are Synched.
2. Grip the filter by the tab and slide
it out of the hand vac.
3. After the filter has been rinsed
and air-dried completely, slide it
back into the hand vacuum.
