Summary of Contents for Asus ZenScreen MQ16AHE

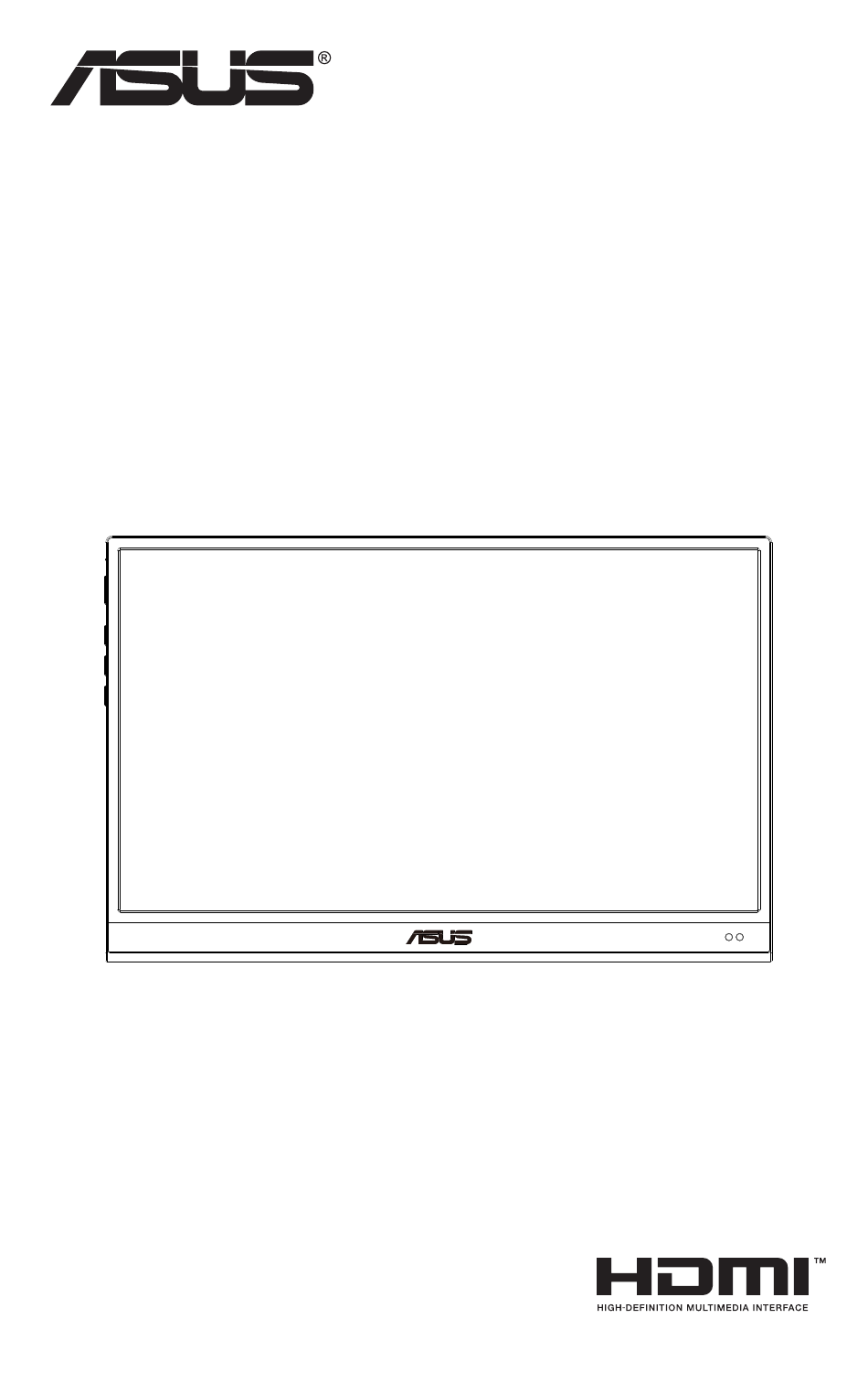

- Page 1 MQ16AHE ASUS ZenScreen OLED User Guide...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
- Page 3 Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
- Page 4 NOTE: This monitor is ENERGY STAR certified. This product qualifies for ENERGY STAR in the factory default setting which can be restored by “Factory Reset” function in the OSD menu. Changing the factory default settings or enabling other features may increase power consumption that could exceed the ENERGY STAR specified limits.
- Page 5 Safety information • Before setting up this Portable USB Monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose this Portable USB Monitor to rain or moisture. • Never try to open this Portable USB Monitor cabinet. •...
- Page 6 0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule. ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F, No.15, Address 48720 Kato Rd, Fremont, Address Harkortstr.
- Page 7 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
- Page 8 Takeback services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
- Page 9 Welcome! ® Thank you for purchasing the ASUS Portable USB Monitor! The latest ASUS Portable USB Monitor provides great portability and simplicity to your daily life, enhancing both of your viewing experience and style. Package contents Check your package for the following items:...
- Page 10 Monitor introduction 1.3.1 Front view Power button/Power LED • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. Status Description Blue Amber Standby mode Dark Menu button •...
- Page 11 Support DP alt mode, Used to connect to a valid source such as Notebook/PC/Mobile phone; signal input supports maximum to resolution 1920 x 1080 @60Hz • Up to PD10W power requires connection to a ASUS PD 30W adapter firstly USB Type-C port( •...
- Page 12 1.3.2 QuickFit Function The QuickFit function contains two patterns: (1) Grid (2) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment grid 1 will be rotated automatically if auto rotation is enabled.
- Page 13 Monitor standing positions You can stand up the monitor by several positions with the smart cover. ASUS USB Type-C Monitor MQ16AHE...
- Page 14 Connect the USB monitor with system PC Type C power output too low Chapter 2: Setup...
- Page 15 For higher brightness, please plug in the monitor adapter, the system will enable brightness adjustment to maximum value again. ASUS USB Type-C Monitor MQ16AHE...
- Page 16 Announcements As this product and attached smart cover includes magnet in the structure, there could be potential risk to cause the damage of computer hard disc and objects that are sensitive to magnet. Please ensure not to stack the product with the computer when computer is in use (power on or standby mode) otherwise the hard drive could possibly be influenced by the result of permanent data missing or the computer display could be switched off due to computer auto protection...
- Page 17 Select the to return to previous menu or to accept and return to previous menu. ASUS USB Type-C Monitor MQ16AHE...
- Page 18 1920 x 1080 60 Hz Standard Mode HDMI Standard Mode Splendid sRGB Mode Scenery Mode Blue Light Theater Mode Game Mode ASUS DisplayWidget Center Color Learn More Night View Mode Reading Mode Image Darkroom Mode Signal Select Exit • Standard Mode: This is the best choice for document editing with SPLENDID™...
- Page 19 (2) Slowly roll your eyes (3) Move your eyes diagonal. Blue Light • High energy may lead to eye strain and AMD (Age-Related Blue Light Macular Degeneration). Blue Light to reduce 70% (max.) harmful to avoiding CVS (Computer Vision Syndrome). ASUS USB Type-C Monitor MQ16AHE...
- Page 20 Standard Mode HDMI Brightness Splendid Contrast Saturation Blue Light Color Temp. Color ASUS DisplayWidget Center Learn More Image Signal Select Exit • Brightness: The adjusting range is from 0 to 100. When HDR is enabled, the brightness cannot be adjusted.
- Page 21 0 to 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “Equivalent”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. • HDR: High Dynamic Range. Contains two HDR modes, Cinema HDR and Gaming HDR, this item is open to choose when HDR is enabled.
- Page 22 Signal Select the input source from HDMI, Type-C, input signal. MQ16AHE Splendid Signal 1920 x 1080 60 Hz Standard Mode HDMI HDMI Splendid Type-c Blue Light ASUS DisplayWidget Center Color Learn More Image Signal Select Exit Chapter 3: General Instruction...
- Page 23 Particularly, Chrosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active GamePlus: • Select ON to enter the GamePlus main menu. • Press button to select between Crosshair, Timer and Display Alignment function. ASUS USB Type-C Monitor MQ16AHE...
- Page 24 • Press to confirm the function you choose. Select to go off, and exit. GamePlus main menu GamePlus-Crosshair Crosshair6 GamePlus-Timer GamePlus- Display Alignment 50:00 • QuickFit: See page 1-4 for details. • Power Saving: Adjusts the “Normal Level “and” Deep Level” for the Power Saving function.
- Page 25 Note: the sensitivity of sensor might be influenced by the ambient light, color of users’ clothing and monitor use angle. • Power Key Lock: To disable / enable power key. • All Reset: Selects “Yes” to revert all settings to the factory default mode. ASUS USB Type-C Monitor MQ16AHE...
- Page 26 60 Hz Standard Mode HDMI Shortcut Settings Customized Setting MyFavorite ASUS DisplayWidget Center Learn More Select Exit • Shortcut : User can select from “Blue Light” “Splendid”, “Brightness”, “Contrast”, “Signal”, “Energy Saving” and set as shortcut key.The default setting is Signal.
- Page 27 , 1.5A ASUS/AD2166X20 100-240V~, 50/60Hz, 0.8A Adapter , 3.0A(Normal model) OR 9V , 3.0A, OR 12V , 2.5A, OR 15V , 2.0A, OR , 1.5A (USB Power Delivery) *Specifications are subject to change without notice. ASUS USB Type-C Monitor MQ16AHE 3-11...
- Page 28 Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the USB Type-C cable is properly connected to the monitor and the computer. The power LED lights amber •...
- Page 29 45 kHz Video Timing 1920x1080P 27 kHz Video Timing 1920x1080P 28.125 kHz Video Timing 1920x1080P 33.750 kHz Video Timing 1920x1080P 54 kHz Video Timing 1920x1080P 67.5 kHz Detail Timing 1920x1080 67.5kHz Detail Timing 1920x1080 66.71kHz ASUS USB Type-C Monitor MQ16AHE 3-13...
