Grundfos CONLIFT1 LS Installation And Operating Instructions Manual
Hide thumbs
Also See for CONLIFT1 LS:
- Installation and operating instructions manual (240 pages) ,
- Manual (20 pages) ,
- Instructions manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Grundfos CONLIFT1 LS
Summary of Contents for Grundfos CONLIFT1 LS
- Page 1 GRUNDFOS INSTRUCTIONS CONLIFT1 LS Installation and operating instructions CONLIFT1 LS Installation and operating instructions Other languages http://net.grundfos.com/qr/i/98491876...
- Page 3 CONLIFT1 LS English (GB) Installation and operating instructions ............4...
- Page 4 Installation and operation must comply with local regulations and accepted codes of good practice. 2.1 Hazard statements The symbols and hazard statements below may appear in Grundfos installation and operating instructions, safety instructions and service instructions.

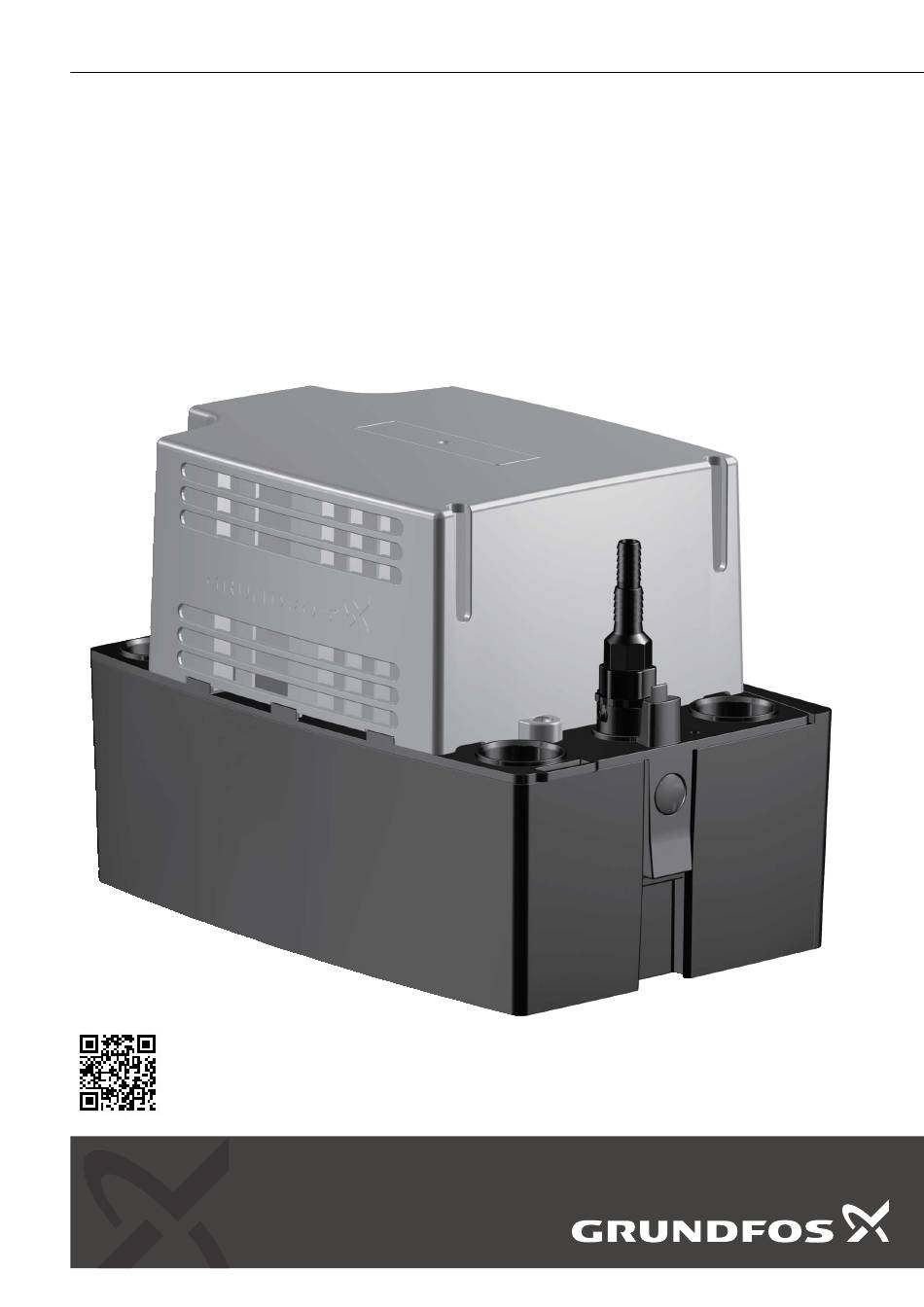

- Page 5 Tips and advice that make the work easier. 3. Product introduction 3.1 Product description Grundfos CONLIFT1 LS is a small, compact lifting station with a built-in non-return valve. 3.2 Intended use CONLIFT is designed for the pumping of condensate from the following: •...
- Page 6 If not already integrated, a water trap (emission trap) must be fitted 3.6 Accessories in all inlets. The following accessories are available from your local Grundfos CONLIFT is not designed for outdoor use. supplier. 6. Mechanical installation...
- Page 7 7. Electrical connection The alarm cable can be connected in two ways, depending on application: DANGER • Shutdown of condensate source Electric shock The safety overflow switch can be connected to a Class-II low- Death or serious personal injury voltage circuit. To enable shutdown of the condensate source, ‐...
- Page 8 8. Starting up the product 10. Service Always use original accessories from Grundfos to ensure safe and reliable operation. Start up CONLIFT in accordance with local regulations and accepted codes of good practice. WARNING Electric shock Death or serious personal injury 1.
- Page 9 ‐ Switch off the power supply before you start any work Otherwise, Grundfos can refuse to accept the product for service. on the product. Make sure that the power supply Any application for service must include details about the pumped cannot be switched on accidentally.
- Page 10 The power cable is damaged. • Repair or replace the cable. This must only be carried out by an authorised service workshop or by Grundfos. The thermal overload switch has tripped: • The motor is not sufficiently cooled. Clean the cooling slots in the motor cover.
- Page 11 An external alarm can be connected via the safety overflow switch. 1. Use the public or private waste collection service. The cable can stand a control voltage of 250 VAC, 2.5 A. 2. If this is not possible, contact the nearest Grundfos company or Cable lengths service workshop.
- Page 12 Appendix A A.1. Appendix CONLIFT1 LS...
- Page 13 Dimensions, Conlift1 LS 258.5...
- Page 14 Unit 1, Ground floor, Siu Wai industrial Turkey www.ba.grundfos.com Centre GRUNDFOS Pumps NZ Ltd. GRUNDFOS POMPA San. ve Tic. Ltd. Sti. E-mail: grundfos@bih.net.ba 29-33 Wing Hong Street & 68 King Lam 17 Beatrice Tinsley Crescent Gebze Organize Sanayi Bölgesi Street, Cheung Sha Wan...
- Page 15 98491876 1124 ECM: 1401738 www.grundfos.com...
