OPERATING MANUAL
FIXED FLOW PUMP DRIVES
Model Nos.
MFLX07540-30
MFLX07540-60
MFLX07542-01
MFLX07542-02
MFLX07542-06

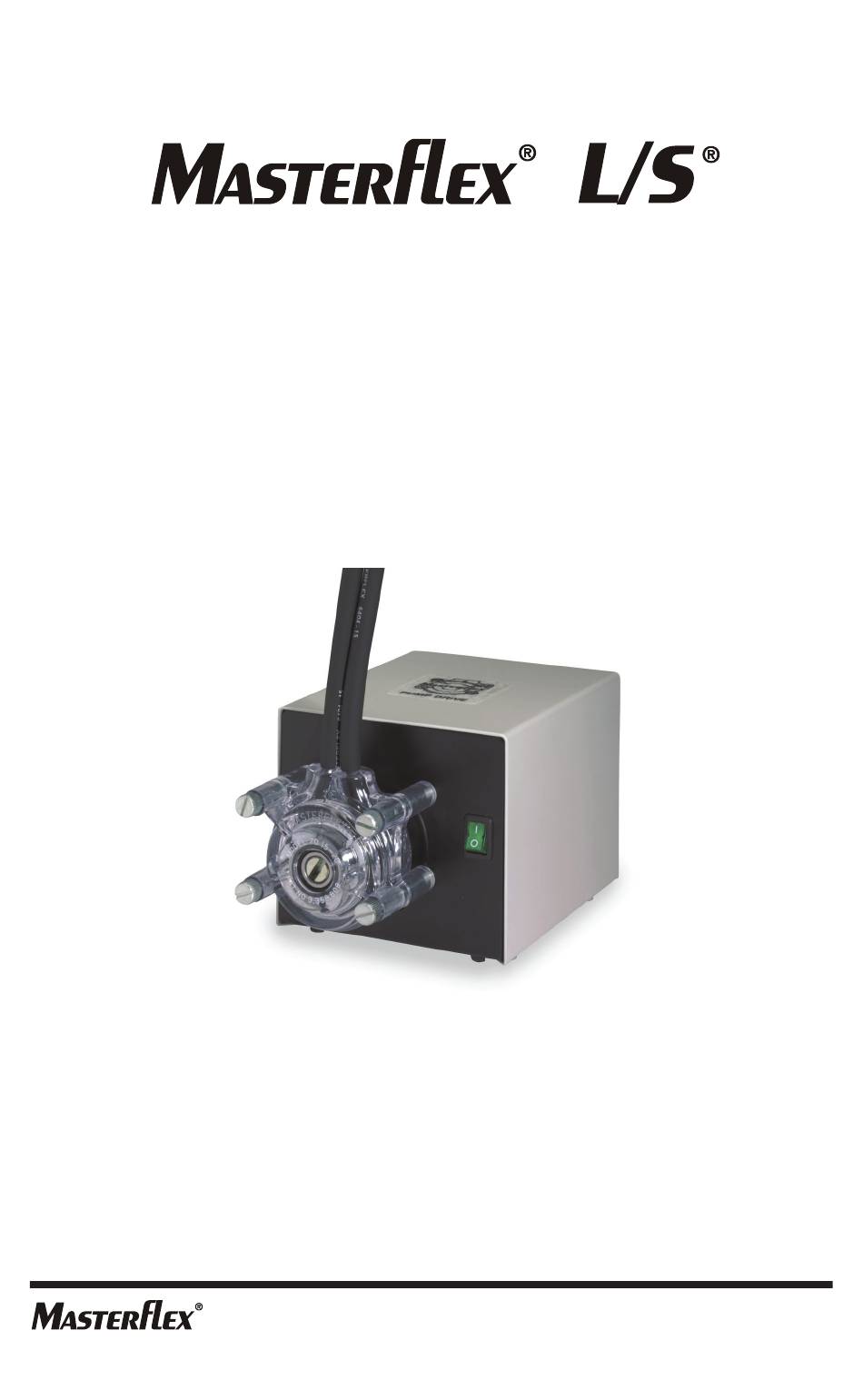

Note: Drive is shown with optional Pump Head.
MFLX07542-12
MFLX07542-20
MFLX07542-30
MFLX07542-60
A-1299-1034
Edition 12
Advertisement
Related Manuals for Masterflex L/S MFLX07540-01
Summary of Contents for Masterflex L/S MFLX07540-01
- Page 1 MFLX07542-12 MFLX07540-02 MFLX07540-60 MFLX07542-20 MFLX07540-06 MFLX07542-01 MFLX07542-30 MFLX07540-12 MFLX07542-02 MFLX07542-60 MFLX07540-20 MFLX07542-06 Note: Drive is shown with optional Pump Head. A-1299-1034 Edition 12 (US & Canada only) Toll Free 1-800-MASTERFLEX ● 1-800-637-3739 (Outside US & Canada) 1-847-381-7050 masterflex.tech @ avantorsciences.com | www.avantorsciences.com/masterflex...
- Page 2 PUMP FOR LIQUIDS ORIGINAL INSTRUCTIONS...
- Page 3 TABLE OF CONTENTS Title Page SAFETY PRECAUTIONS ................3 INTRODUCTION AND GENERAL DESCRIPTION ........4 SETUP AND OPERATION................4 MAINTENANCE ..................5 Cleaning ....................6 SPECIFICATIONS ..................6 WARRANTY ....................8 PRODUCT RETURN ................... 8 TECHNICAL ASSISTANCE ................. 8 SAFETy PRECAUTIONS WARNINGS: To reduce risk of electrical shock, connect only to a properly grounded, grounding-type receptacle.
- Page 4 07542-60 L/S Fixed Speed, 230V AC, 50 Hz SETUP AND OPERATION Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties. Unpack the drive and retain all packing material until proper product opera- tion has been verified.
- Page 5 The following sketch shows the dimensional outline of the drive: MAINTENANCE WARNING: Remove power from the drive before attempting any main- tenance. The rear motor bearing should be given two drops of #20 non-detergent oil every three months. Do not over oil. Clean off any accumulated dust or dirt. The drive gear/motor assembly can be replaced if necessary.
- Page 6 Cleaning WARNING: Remove power before any cleaning operation is started. Keep the drive enclosure clean by using a mild detergent solution. Never immerse or use excessive fluid when cleaning the drive. SPECIFICATIONS Output: Model# Speed Torque Pump Heads Current (rpm) (in-oz) (kg-cm) (Amps) 07540-01...
- Page 7 SPECIFICATIONS (Cont.) Environment: Operating Temperature: 0°C to 40°C Storage Temperature: –25°C to 65°C Humidity: 10% to 90% non-condensing Altitude: Less than 2000 meters Pollution Degree: Pollution degree 2 (indoor usage—lab,office) Construction: Dimensions (L x W x H): 15.2 cm x 13.4 cm x 11.8 cm (6 in x 5.3 in x 4.6 in) Weight: 3 kgs (6.5 lbs)
- Page 8 WARRANTy Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties. The Manufacturer warrants this product to be free from significant deviations from published specifications. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer.
