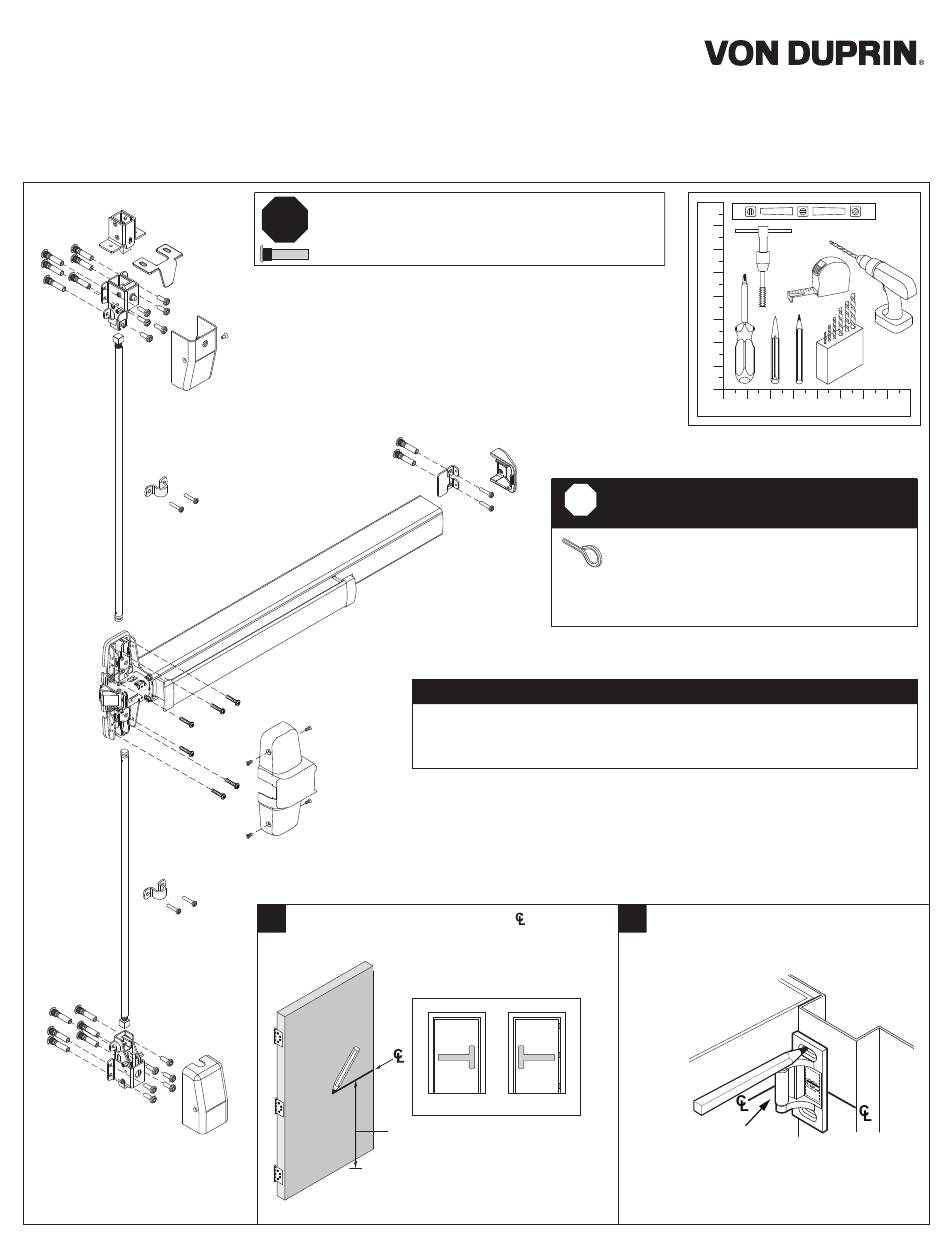

Windstorm Exit Device
WS9857/WS9957
WS9857-F/WS9957-F
WS-T9857/WS-T9957
WS-T9857-F/WS-T9957-F
!
You must use the screws and sexbolts provided with this exit
device or the device will not be Tornado or Windstorm
certified. Do not substitute any hardware on door.
1
Draw Exit Device Centerline ( )
RHR
39-1/2" (100 cm) from finished floor
RHR
!
NOT PERMITTED FOR WS-T APPLICATIONS
Cylinder Dogging with Thumb-turn Acceptable
For WS applications, a dogging key can be used to
lock down pushbar.
For WS-T applications, a cylinder dog with
thumbturn can be used to lock down pushbar.
A dogging key is not permitted.
WS-T Information
If using -2 or -2SI options, 377T-KC function required.
See instruction #47640278 for -2 & -2SI information.
See instruction #941116-00 for 377T-KC trim installation and door preparation.
LHR
Installation Instructions
#10-24
#12-24
1/4-20
Dogging Key
2
Align strike on C and mark the two
L
slotted holes.
Roller (against door)
299/299F Strike
499F Strike (WS-T)
