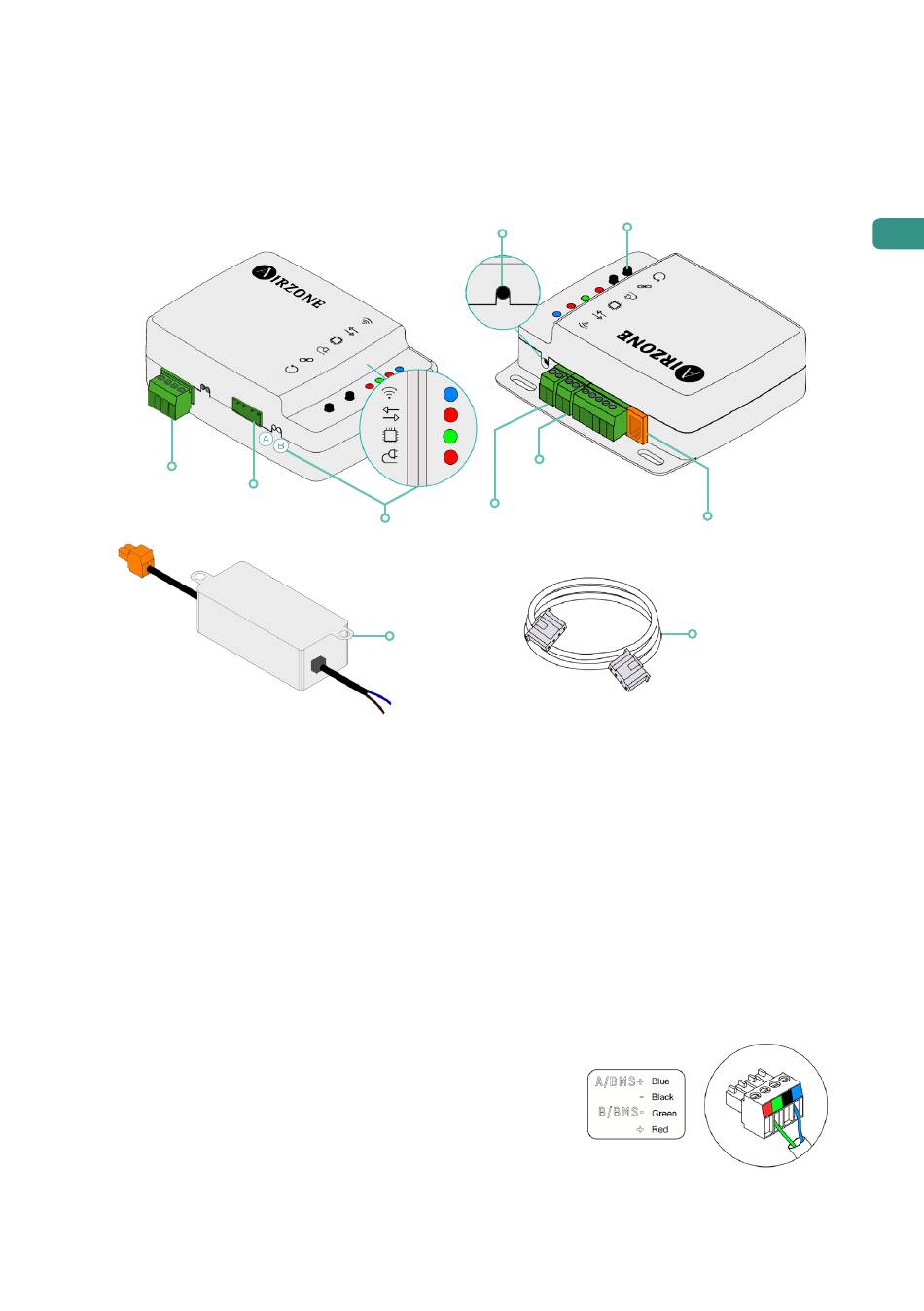

DEVICE ELEMENTS
Port
RS-485 Connection to
indoor unit
* Note: both the shape of the terminal on the Aidoo Pro device and the shape of the cable may
vary depending on the compatible manufacturer.
Factory reset
This button allows you to restore the device to factory settings by pressing it continuously for
more than 10 seconds.
Reset of the device
Allows you to reset the device without removing any previously set configuration parameters.
RS-485 port
RS-485 port for establishing Modbus RTU or BACnet MS/TP
communication with the device.
Factory reset
*
Diagnostic
LEDs
Power Supply
Reset of the
device
Relay
output
Digital
input
Power supply
input
Connection cable to
*
the indoor unit
