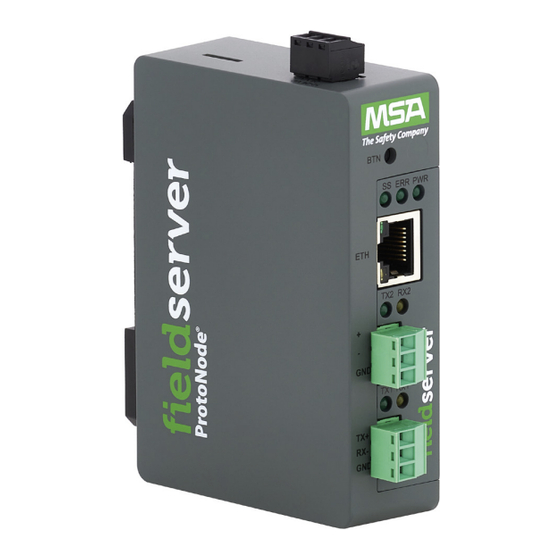

Start-up Guide for the gateway MODBUS RTU / BACnet

INSTRUCTION SHEET

CONTENTS

Certification and technical specifications

Introduction

Gateway setup

Dimensions

Device connection to Gateway

Power connection

Configuration of the Gateway

Web server setup

LED Functions

Appendix

H0004703.03

www.caleffi.com

Code 755052

Need help?

Do you have a question about the MSA fieldserver FPC-N54 and is the answer not in the manual?

Questions and answers

Summary of Contents for CALEFFI MSA fieldserver FPC-N54

Page 1 H0004703.03 www.caleffi.com Start-up Guide for the gateway MODBUS RTU / BACnet Code 755052 © Copyright 2024 Caleffi INSTRUCTION SHEET CONTENTS Certification and technical specifications Introduction Gateway setup Dimensions Device connection to Gateway Power connection Configuration of the Gateway Web server setup...
Page 2 2. INTRODUCTION The gateway is an external, high performance Building Automation multi-protocol gateway that is preconfigured to auto-discover any of Caleffi’s products (hereafter called “device”) connected to the the gateway and automatically configures them for BACnet MS/TP, BACnet/IP. It is not necessary to download any configuration files to support the required applications.
Page 3 Each gateway has a unique part number located on the side or the back of the unit. This number should be reorded, as it may be required for technical support. The numbers are as follows: Model Caleffi code FPC-N54-1861 755052...
Page 4 4. DIMENSIONS...
Page 5 5. DEVICE CONNECTIONS TO GATEWAY ATTENTION! in this step do not connect power Modbus Connection Wiring correspondence See the diagrams below for the connection for the different devices (from MODBUS to BACnet network). Power Requirement for gateway External Gateway R1 Devices Legiomix_2_0_6000_Series Legiomix_6000_Series...
Page 6 6. POWER CONNECTION Check power requirements in the table below: Power Requirement for ProtoNode External Gateway Current Draw Type ProtoNode Family 12 V (DC) 24 V (AC/DC) FPC–N54 (Typical) 250mA 125mA NOTE: These values are ‘nominal’ and a safety margin should be added to the power supply of the host system. A safety margin of 25 % is recommended.
Page 7 7. CONFIGURATION OF THE GATEWAY Connect the PC to gateway via the Ethernet Port Connect a CAT5 Ethernet cable (Straight through or Cross-Over) between the local PC and gateway. NOTE: The Default IP Address of gateway is 192.168.1.24, subnet mask is 255.255.255.0. If the PC and gateway are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.1 network.
Page 8 4 - Fill the corret setting for the IP BACnet gateway address. Connecting to gateway Web Configurator Change the IP address of the Gateway Modbus RTU / BACNET: If for network configuration reasons, the IP address 192.168.1.24 is already assigned in the network, the IP address of the Gateway Modbus RTU / BACNET can be changed.
Page 9 8. WEB SERVER SETUP Login to the FieldServer The first time the FieldServer GUI is opened in a browser, the IP Address for the gateway will appear as untrusted. This will cause the following pop-up windows to appear. • When the Web Server Security Unconfigured window appears, read the text and choose whether to move forward with HTTPS or HTTP. •...
Page 10 After setting a local PC on the same subnet as the gateway (previous chapter), open a web browser on the PC and enter the IP Address of the gateway; the default address is 192.168.1.24. After setting the local IP address of the gateway, to show the parameters of the connected device, following the screens below. Username: admin Password: see label on side of the Gateway (ref.
Page 11 NOTE: Below the “Active profiles” heading, the profiles for connected devices are listed. If no profiles are present, then wiring, baud rate and switch settings must checked, because there is a problem with device communications. All the active profiles must show correct Node-ID’s before proceeding.
Page 12 9. BACNET MS/TP AND BACNET/IP: SETTING NODE_OFFSET TO ASSIGN SPECIFIC DEVICE INSTANCES After setting a local PC to the same subnet as the gateway, open a web browser on the PC and enter the IP Address of the gateway; the default address is 192.168.1.24.
Page 13 The parameters of the select device are shown in the screen below. 10. LED Functions Description The SS LED will flash once a second to indicate that the bridge is in operation. The SYS ERR LED will go on solid indicating there is a system error. If this occurs, immediately report the related “system error”...
Page 14 Appendix 1. COMPLIANCE WITH UL REGULATIONS For UL compliance, the following instructions must be met when operating gateway. The units shall be powered by listed LPS or Class 2 power supply suited to the expected operating temperature range. The interconnecting power connector and power cable shall: Comply with local electrical code.
Page 15 Appendix 5. LEGIOMIX_6000_SERIES MODBUS RTU MAPPINGS TO BACNET Point Name BACnet Object Type BACnet Object ID Description Product type 6001 Address 1...247 Tmix Deg_C (Mixing temp.) °C Trec Deg_C (Recirculation temp.) °C Tmix Deg_F (Mixing temp.) °F Trec Deg_F (Recirculation temp.) °F State 1 - Regulation...
Page 16 Presence of Recirculation Probe 1 = Presence of Rec probe Anticlog 1 = Anticlog Legal Hour bit 2:0 bit 3:1 = Disabled bit 2:1 bit 3:0 = EUR bit 2:0 bit 3:1 = USA bit 2:1 bit 3:1 = Custom International System of Unit 0 = °C , 1 = °F LED Display Enable...
Page 17 Alarms AL10 1 = AL10 Alarms AL11 1 = AL11 IN1 Status 1 = disabled ; 0 = enabled IN2 Status 1 = disabled ; 0 = enabled OUT1 Status 1 = disabled ; 0 = enabled OUT2 Status 1 = disabled ; 0 = enabled OUT3 Status 1 = disabled ;...
Page 18 Disinfection Start Day Wednesday 1 = enabled ; 0 = disabled Disinfection Start Day Thursday 1 = enabled ; 0 = disabled Disinfection Start Day Friday 1 = enabled ; 0 = disabled Disinfection Start Day Saturday 1 = enabled ; 0 = disabled Disinfection Start Day Sunday 1 = enabled ;...
Page 19 Appendix 7. CONTECA_EASY_750_SERIES MODBUS RTU MAPPINGS TO BACNET Point Name BACnet Object Type BACnet Object ID Description Product 7500 1...250 Heating Energy Cooling Energy Pulse Input 1 (DHW) Pulse Input 2 (DCW) Pulse Input 3 / kWh Pulse Input 4 / kWh Power Flow Rate...
