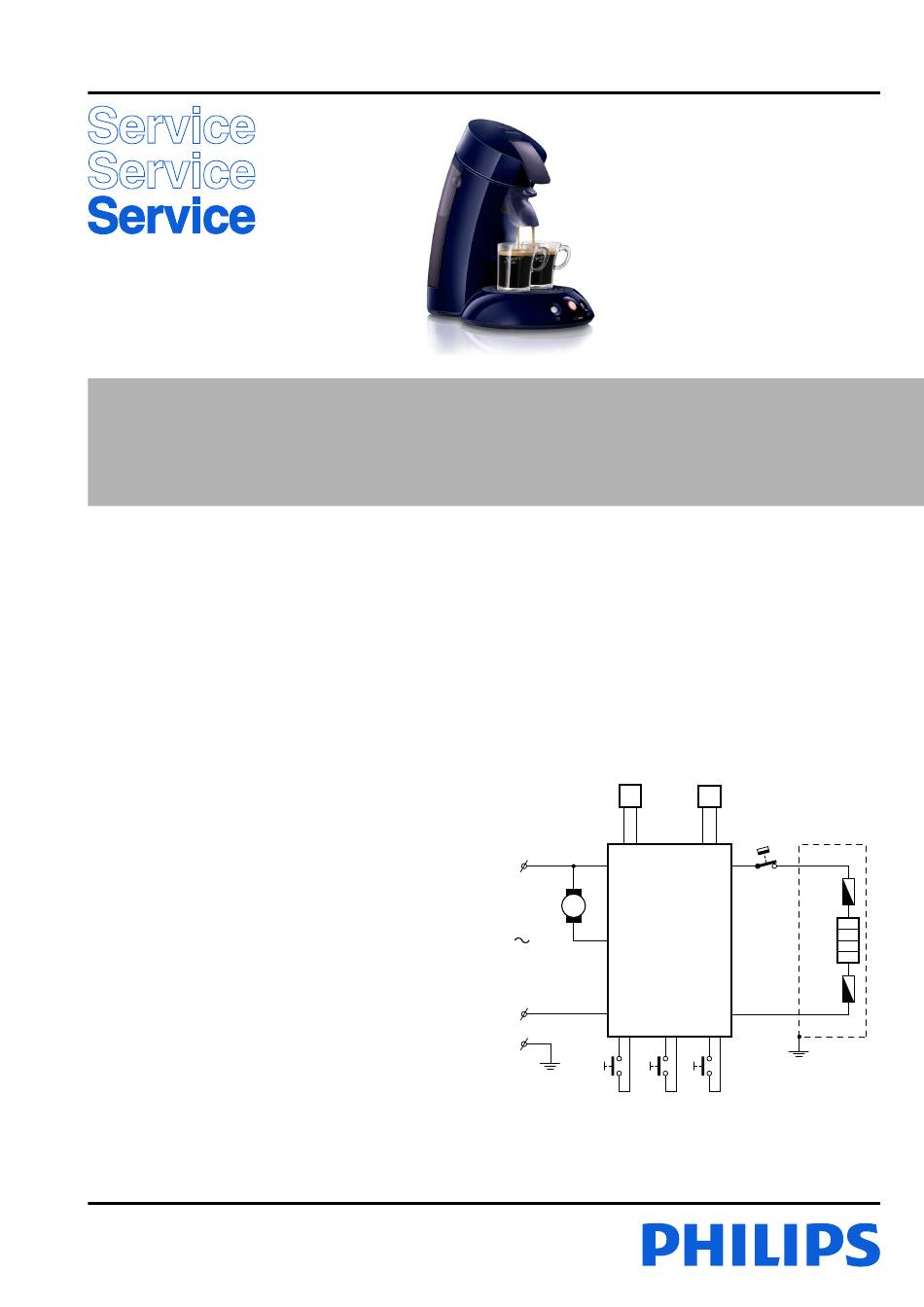

Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
13/08
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption : 0.002 kWh
- Contents reservoir
- Colour setting
L
Pump M
N
Printed in the Netherlands

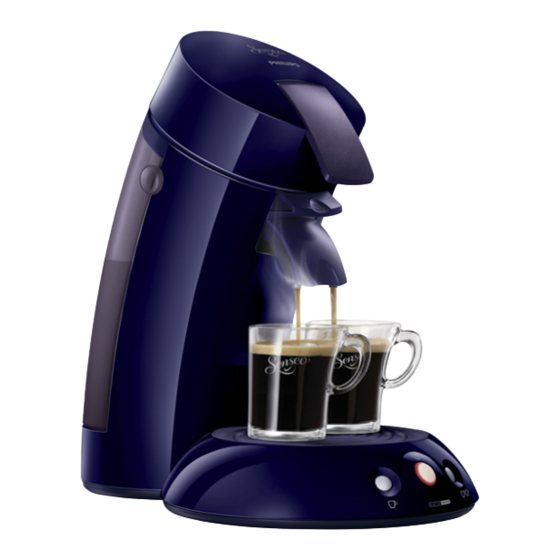

Coffee Maker Senseo
: 230 V
: 50 Hz
: 1450 W
: 755 cc
: Blueberry purple / Black
Water level
Sensor
CONTROL
PCB
Push buttons
© Copyright reserved
HD7810/46
Temp.
Sensor
TCO
Boiler
Fuse
Fuse
Subject to modification
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Philips Senseo HD7810/46
Summary of Contents for Philips Senseo HD7810/46
- Page 1 : 755 cc - Colour setting : Blueberry purple / Black Water level Temp. Sensor Sensor Boiler Fuse Pump M CONTROL Fuse Push buttons Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 13/08...
- Page 2 DISASSEMBLY- AND RE-ASSEMBLY ADVISE HD7810/46 Disassembly information To remove the brew chamber lid cover handle as follows: Removing Brew chamber head handle as follows: - Place the screwdriver on the - Disassemble back cover! positions (see picture 1) and - Place the appliance such a way that you are looking at the lift the cover over the snap boiler.
- Page 3 REPAIR INSTRUCTION HD7810/46 Descaling When the volume has to increase with 10 cc for example, Regular descaling will prolong the life of your appliance and push the 2 cup button 3 times. will guarantee optimal brewing results for a long time. The new value will be stored when you switch the •...
- Page 4 PARTS LIST HD7810/46 Service code Description Remark 4222 259 60381 Brew chamber assy Blueberry purple 4222 259 38960 Pad holder assy 1-cup Dark purple 4222 259 39022 Pad holder assy 2-cup Dark purple 4222 247 35760 Foam chamber cover Dark purple 4222 247 39540 Foam chamber Black...
- Page 5 EXPLODED VIEW HD7810/46...
- Page 6 EXPLODED VIEW HD7810/46...
