BEA BR2-900 Manual

BEA BR2-900 Manual

2-relay logic module with built-in 900 mhz wireless technology
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Visit website for
available languages of
this document.

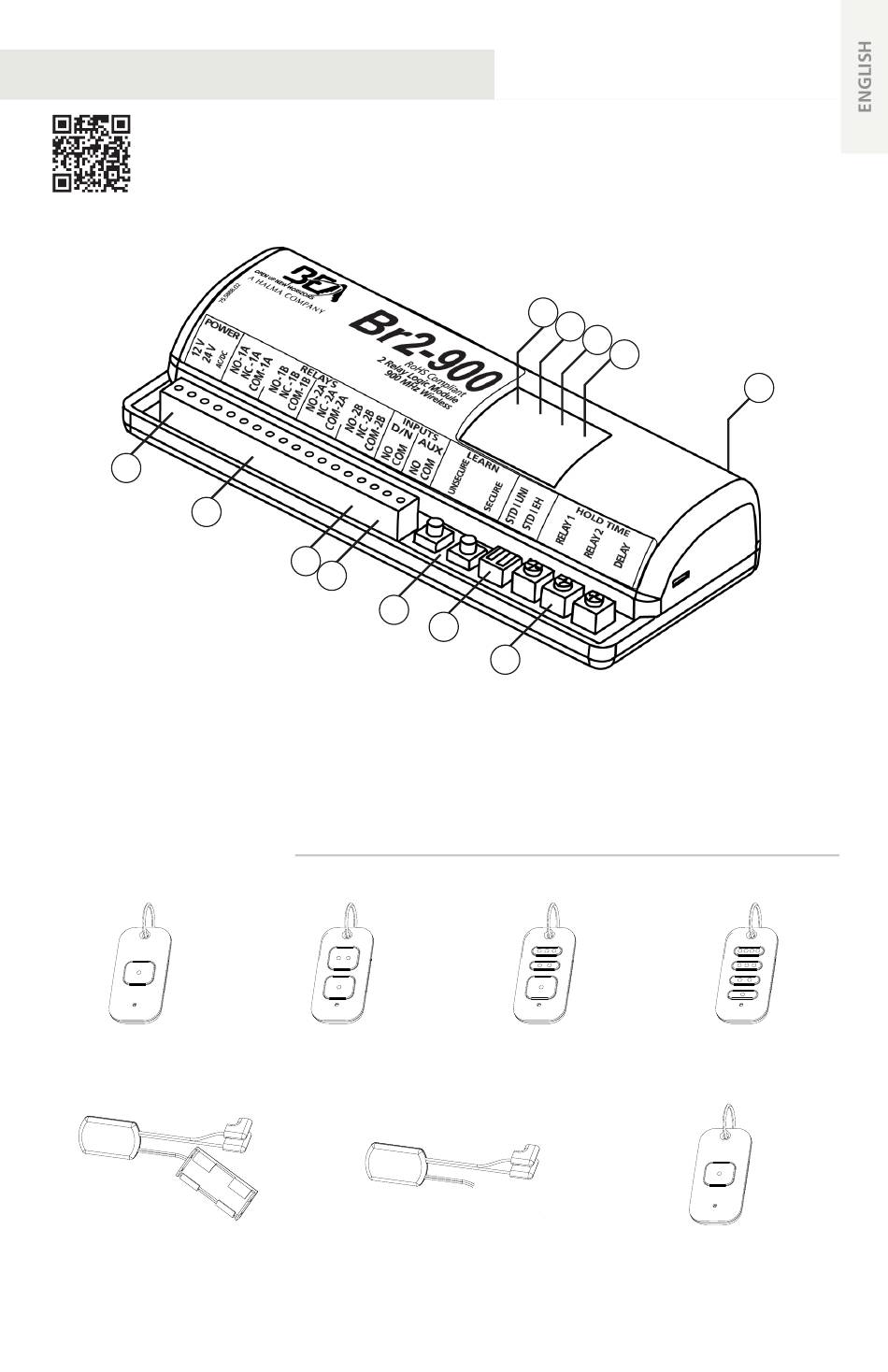

1
1.
Power input
2.
Relay outputs
3.
Day/Night input
4.
AUX input
5.
Learn buttons
6.
DIP-switches
7.
Potentiometers
8.
Radio frequency LED (red)
HANDHELD TRANSMITTERS
10TD900HH1
1-button transmitter
10TD900PB
Push Plate transmitter
75.5886.05 BR2-900 20241104
2
3
4
9.
Relay 2 LED (white)
10. Relay 1 LED (blue)
11. Tri-color signal strength LED
12. Antenna
10TD900HH2
2-button transmitter
Touchless Retrofit transmitter
8
5
6
7
10TD900HH3
3-button transmitter
10TD900TR
BR2-900
2-Relay Logic Module with Built-In
900 MHz Wireless Technology
9
10
11
10TD900HH4
4-button transmitter
10TD900HH1U
1-button Universal transmitter
12
Page 1 of 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the BR2-900 and is the answer not in the manual?

Questions and answers

Related Manuals for BEA BR2-900

Summary of Contents for BEA BR2-900

  • Page 1 Potentiometers 12. Antenna Radio frequency LED (red) HANDHELD TRANSMITTERS 10TD900HH1 10TD900HH2 10TD900HH3 10TD900HH4 1-button transmitter 2-button transmitter 3-button transmitter 4-button transmitter 10TD900PB 10TD900TR 10TD900HH1U Push Plate transmitter Touchless Retrofit transmitter 1-button Universal transmitter 75.5886.05 BR2-900 20241104 Page 1 of 8...
  • Page 2 INSTALL Relay 1 is a dry output. The BR2-900 does not provide power to the locking device; power to the locking device must be provided separately. Relays 1 and 2 are DPDT: relays 1A and 1B fire simultaneously and relays 2A and 2B fire simultaneously.
  • Page 3 0.5 – 10 seconds DELAY delay between relay 1 and relay 2 0 – 30 seconds Signal Strength Indicator Pressing and holding transmitter button for three (3) seconds activates signal strength LED on BR2-900. LED COLOR DESCRIPTION strong wireless signal GREEN...
  • Page 4 1. 10TD900PB required for push plates. Universal Mode Universal transmitters (10TD900HH1U) do not need programmed (or "learned") to the BR2-900. Their unique serial number is automatically recognized by the BR2-900. During the Handheld TransmitterConfiguration or the Push Plate Configuration steps (above), standard transmitters must be programmed/learned as either "Secure"...
  • Page 5 MAGLOCKS will drop simultaneously and doors will open after a delay set by DELAY POT. POWER RELAYS INPUTS LEARN HOLD TIME D/N AUX Door 1 Door 2 12 to 24 VAC/VDC +/- 10% 1-WAY DELAY 75.5886.05 BR2-900 20241104 Page 5 of 8...
  • Page 6 Push Plate (TD900PB) Low Battery Indicator: After transmitter button is pressed, low battery is indicated by three (3) transmitter red LED blinks. Replace 2 AAA batteries observing polarity. Page 6 of 8 75.5886.05 BR2-900 20241104...
  • Page 7 BR2-900 will not react to Incorrect power Verify power supply of 12 – 24 VAC/VDC any inputs ±10% is wired to correct terminals. Not programmed Ensure a BR2-900 is programmed with wireless transmitter. Incorrect wiring Verify wiring. Defective BR2-900 Replace BR2-900.
  • Page 8 MODEL: 10TD900HH1U BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or incorrect adjustments of the sensor/device; therefore, BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose.
