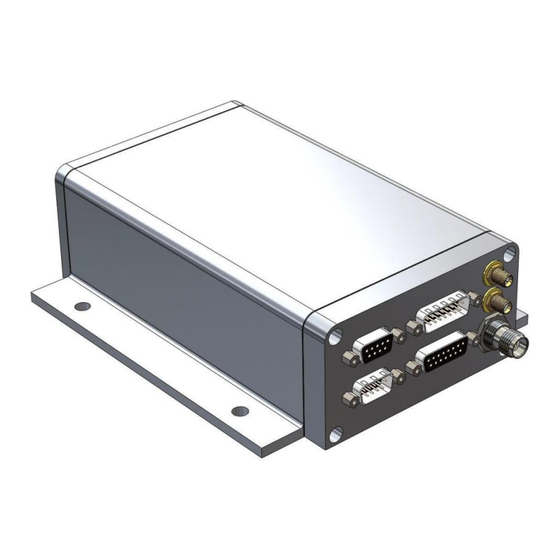

RUGGEDIZED, FULL-FEATURED GPS SOLUTION
IX-403
Combining a GPS receiver and a 4G LTE CAT1 cellular radio, you will
always know where your assets are and how they are performing.
IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC.
1
Tech Support: 1-888-254-1634
1015374H
Advertisement
Related Manuals for PreCise IX-403
Summary of Contents for PreCise IX-403
- Page 1 Combining a GPS receiver and a 4G LTE CAT1 cellular radio, you will always know where your assets are and how they are performing. IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 2 ONNECTOR I/O C ........................17 ONNECTOR MANUFACTURER LIMITED WARRANTY AND LIMITATION OF LIABILITY .........18 PART 15 NOTICE: ........................19 IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 3 You can access the information about your equipment on PreCise MRM’s secure website (https://myfleet.precisemrm.com). IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 4 (2) RS-232 (2) CAN (1) J-1708 (1) 10/100BaseT Ethernet (1) USB Ruggedized design ◼ 12V/24V operation ◼ IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 5 FCC RF exposure guidelines. IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 6 Wrench set 5/16" ring lug terminals (18awg) 7/16" open end wrench #10 ring lug terminals (18awg) Volt-Ohm meter IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 7 Make sure the magnet-mount antenna will stick to the mounting surface. The magnet will work with ◼ steel, but it won’t stick to a surface like aluminum or fiberglass. IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 8 The IX-403 module has integral mounting flanges that you can use to fasten it to a flat surface. You can use the module itself as a template to mark the hole locations, or you can use the dimensions shown in Figure 1.
- Page 9 Figure 2 shows all necessary connections for basic operation. Figure 1: Mounting Hole Dimensions IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 10 254-1634 during normal business hours (7 a.m. – 6 p.m. Mountain, Monday — Friday) or support@precisemrm.com. LED Definitions Figure 2: Connection Diagram IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 11 RED (solid) → input or output is active (On) ◼ OFF → input or output is inactive (Off) ◼ IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 12 (50%) <5 m (90%) SBAS <2.0 m (50%) <4 m (90%) Velocity 0.06 Time ns RMS IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 13 (max) Receiver Sensitivity -102.0 Regulatory FCC, PTCRB, IC, FCC ID: RI7LE910CXNF Certifications ROHS, REACH IC ID: 5131A-LE910CXNF IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 14 (max) Physical Parameter Rating Units Dimensions 2.3 x 5.9 x 8.0 57 x 150 x 203 Weight IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 15 ▪ inductive switching ▪ ▪ mutual ±8kV ESD, human body model Reverse polarity Over-voltage shutdown Short-circuit Pin-Outs IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 16 Reserved for future use; do not connect RESERVED Reserved for future use; do not connect RESERVED Reserved for future use; do not connect IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 17 AUX1 RS232 Receive line Ground Ground J1708_A J1708_A J1708_B J1708_B Ground (Available in devices with OBD-II option) IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 18 Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
- Page 19 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IX-403 | PreCise MRM | 1311 East Franklin Road, Suite 102, Meridian, Idaho 83642. Copyright © 2024 PreCise MRM LLC. Tech Support: 1-888-254-1634...
