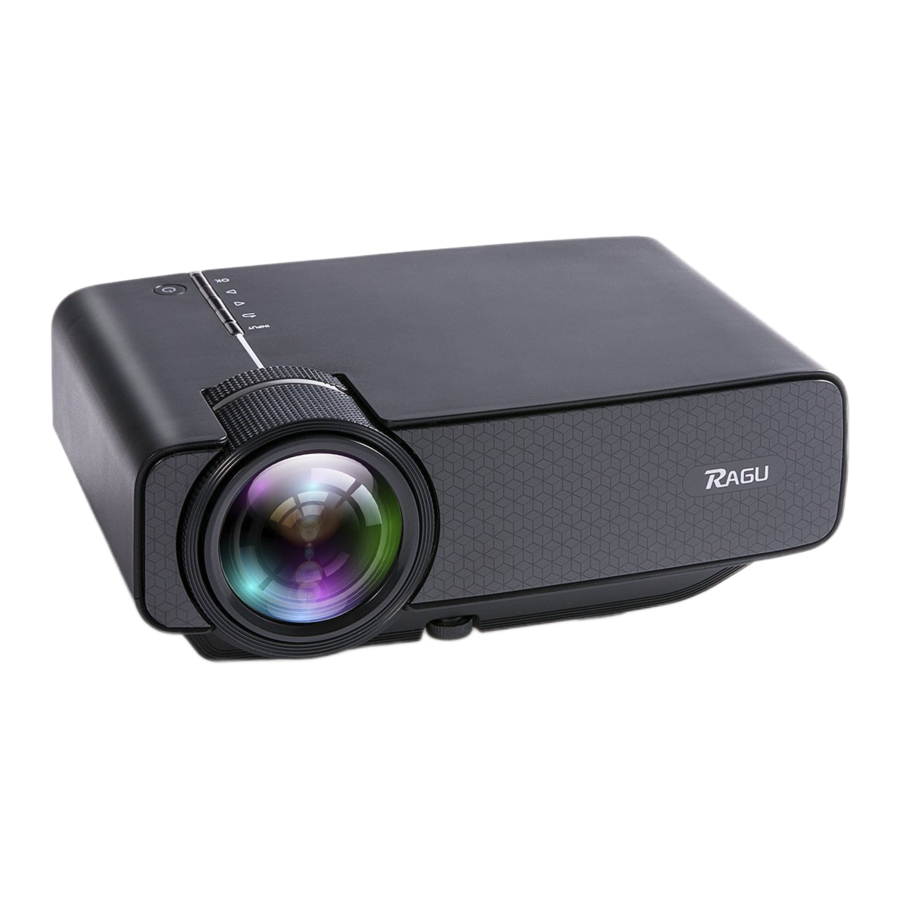

RAGU Z400 Manual

Box Contents

Note: Adjust the focus ring and the keystone ring before using the projector. Turn off this product when not in use to prolong the life of the projector.

Product Parts

1. VGA port
2. SD card slot
3. AV input port
4. Audio jack
5. HDMI port
6. USB port
7. 5V output port

Remote Control

1. Power Button (turns the projector on or off)
2. Mute Button (turns off sound)
3. Fast Backward Button
4. Play/Pause Button (plays/stops playing audio or video)
5. Fast Forward Button
6. Ok Button (selects options)
7. Up (selects upward movement)
8. Down (selects downward movement)
9. Left (selects leftward movement)
10. Right (selects rightward movement)
11. Esc Button (cancels/exits functions)
12. Menu Button (accesses projector menu system)
13. Source Button (selects of the input source)
14. Volume Down Button (adjusts speaker volume)
15. Volume Up Button (adjusts speaker volume)

Projector Operations

1. Connect the power cord to the projector's power inlet, press the Power Button to turn on the projector.

2. Rotate the Focus Ring and the Keystone Correction simultaneously until to get the clear image.


3. Press the Menu Button. Press Left/Right to select Option. Choose OSD Language under Option.

4. Press Ok to access the submenu of OSD Language and press Up/Down/Left/Right to select the language.


5. To connect a device, press the Input Button or the Source Button.

6. Select the correct input source and prepare the cable for device connections if necessary.


Flexible Connectivity

7. Connect the projector to your device with the compatible cable and port.
   Note: Do not hot plug the device, power off the device before making any connections.


1. Connect to a HDMI device

2. Connect to a VGA device

3. Connect to an AV equipment

4. Connect to a USB storage device up to 64G

5. Connect to an audio device

6. Charge a mobile device


If you follow the above connecting steps, however, there is no display or it does not work, please refer to the detailed instruction manual or contact us to solve the problems.

Product Specifications

Projection Distance and Screen Size

Helpful Tips

• Please operate the projector in a dark room.
• The cooling system makes slight noise to avoid overheating.
• Connecting to an external audio device is recommended.
• Business data presentation is not recommended.
• Maximum supported resolution of the projector is 1920x1080 Pixels.
• Native resolution of the projector is 800x480 Pixels.
• The projector does not support Dolby Vision.
• Mirror a smartphone to the projector with a HDMI/WiFi dongle.

Contact Us

Whether you need further assistance, are looking for answers, or just want to share your reviews with us, you will find many ways to contact us right here.

• E-mail: service@iragu.net
• Call: 1-262-299-0397 (available for customers in the United States currently)
• Facebook: www.facebook.com/iragu001/

Important Safety Instructions

• Don't use chemical detergents to clean
• Don't look directly into the light
• Don't disassemble the projector
• Unplug the projector after shutdown
• Use a soft and dry cloth for cleaning
• Don't use the projector near water or moisture
• Don't block any ventilation openings
• Place the projector on a flat surface
• Use in a well-ventilated area
