Orbegozo PZ 8100, PZ 3090, PZ 7775 N, PZ 3670 Manual

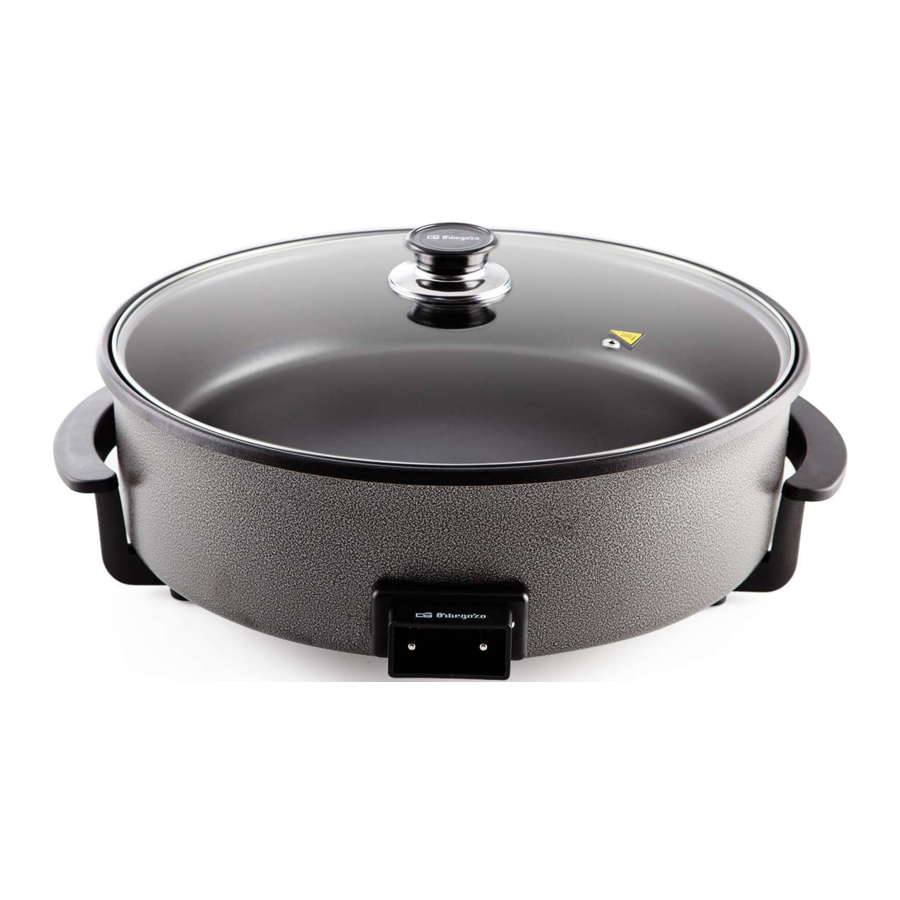

DEVICE OVERVIEW

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. Glass lid
2. Valve
3. Lid handle
4. Hot plate body
5. Handle
6. Thermostat
7. Power cord

INSTRUCTIONS FOR USE

Automatic Temperature Regulator

The thermostat is integrated into the electrical cable, which we can separate from the device. Its regulation is from 0°C to 240°C with a selector from 1 to 5, allowing you to choose the ideal temperature for each meal, guaranteeing an optimal result of high quality and very high nutritional properties of the products.

Depending on the type of food to be prepared, the temperature is selected.

Once the desired temperature is reached, the thermostat light automatically turns off, as well as turns on again when it drops.

Correct use

1. Before each use, carefully clean the iron and the lid of the appliance.

For ignition

1. Place the temperature indicator in position "0" and place the temperature regulator plug in the socket.

   If the temperature regulator is not plugged in correctly, abnormal heating may occur, which may cause damage to the appliance and even accidents. Therefore, make sure that the temperature regulator is firmly plugged in all the way.
2. Place the plug in the mains socket.
3. The temperature scale has five positions, selectable according to the type of food.

How to start cooking?

• On first use you should let the unit warm up for about 5 minutes. The control lamp will turn on and off several times in that period of time.
• During the first use, some abnormal smells may appear, please do not worry. It is not harmful to health. Heating the protective resin that comes from the factory usually generates these odors, but they disappear after a few minutes.
• Do not touch the base of the appliance. Move and handle the saucepan only by the heat-resistant handles.
• With PIZZA PAN ORBEGOZO you can now start enjoying tasty meals, cooked with very little fat for a healthy diet and to optimize your well-being.
• The glass lid should be used on all occasions, as it is not only heat resistant, but also distributes heat across the top, performing a "baking" function, in addition to leaving the food crispy.
• The glass lid allows you to check the cooking progress of the food, without odors or splashes.
• The lid has a valve for the escape of evaporated water, preventing the food from being cooked with unwanted liquids, but rather making it more tender and juicy.
• When the food is ready, set the temperature regulator back to "0". If you want to keep food warm, lower it to position "1".
• Before serving, set the temperature regulator back to "0".
• Unplug the plug and thermostat from the pan. You can then serve the food on the table in the same container.

Attention: First remove the plug from the mains socket. Secondly, carefully remove the thermostat (the other end of the cable) from the socket integrated into the base of the appliance. When it cools, wipe the inside of the plug with a clean, dry cloth.

CARE AND MAINTENANCE OF THE NON-STICK SURFACE

The frying pan's surface has a top-quality non-stick coating on which absolutely nothing will stick. To preserve its properties, the following precautions must be taken.

1. Do not use metal spatulas. We recommend you use wooden or plastic utensils.
2. If you have to cut hot or cold meat, or fish, we recommend you take the food out of the frying pan and cut it on a board.
3. Make sure that neither the power cord nor the thermostat rest on or rub against the frying pan.
4. Do not use nylon or metal brushes to clean the frying pan.
5. The frying pan should be cleaned each time after use. Wait until it has cooked to a suitable temperature and use a clean, dry cloth. We recommend you use paper kitchen towels.
6. For healthier, more natural food, we recommend you do not use oil directly on the non-stick pan but rather that you marinade the meat, vegetables and fish beforehand with spices, butter, oil, lemon, wine, mustard, soy sauce...
7. Frozen products can be cooked reducing the temperatures 50%, as shown in the table below, and increasing the cooking times.

CLEANING INSTRUCTIONS

We recommend the following practices and suggestions for proper cleaning:

Non-stick hotplate

Clean the hotplate each time after use with a damp cloth or a paper towel. If any remains of food should be left on the surface, place a little water on the plate and reheat to delude these remains. If necessary, use a wooden or rubber spatula to loosen them.
Do not use aggressive or abrasive detergents, or nylon or metal brushes or pads.
Never immerse the hotplate in water or wash with water while it is hot.

Glass lid

Clean the lid using a soft sponge and gentle detergents. Avoid abrupt temperature changes of the lid (from hot to cold). Do not place the lid under cold running water while it is hot. Do not use clothes impregnated with chemicals strong detergents.

Temperature regulator thermostat

Clean the thermostat with soft paper towels. Do not clean the thermostat socket with damp cloths or paper.
It must be kept dry at all times.
When the device has been cleaned, dry it thoroughly with a kitchen towel.

TABLE OF COOKING TIMES WITH PIZZA PAN ORBEGOZO

Service / Technical assistance

To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email sonifer@sonifer.es or through our technical assistance service at https://orbegozo.com/contacto/

IMPORTANT SAFETY PRECAUTIONS

When using electrical devices it is necessary to observe safety precautions both, for the product purchased and for the user.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4.
   In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14.
    In case of misuse, there is a risk of possible injury.

SPECIFIC SAFEGUARDS

1.
   The surface can remain hot during or after use.
2. Do not touch any hot surfaces. USE THE SIDE HANDLES of the device's feet as these are heat resistant.
3. This appliance is not intended for using with an external timer or a separate system of remote control.
4. To prevent electric shocks, make sure that the thermostat, the power cord and the device are totally dry.
5. Steps for turning on the device:
   FIRST: Insert the thermostat firmly as far as it will go into the socket in the device's body, leaving the temperature indicator set to "0".
   SECOND: insert the power cord plug into the mains socket.
6. When plugging and unplugging the device´s power cord and thermostat never pull on the cord but on the plug or thermostat.
7. Do not use products or components that are different from the original ones.
8. Keep the power cord away from hot surfaces.
9. Do not operate the device close of stove ovens or electric radiators. Keep a minimum distance of 15cm between the hotplate and the surface of wall.

Web: www.orbegozo.com
