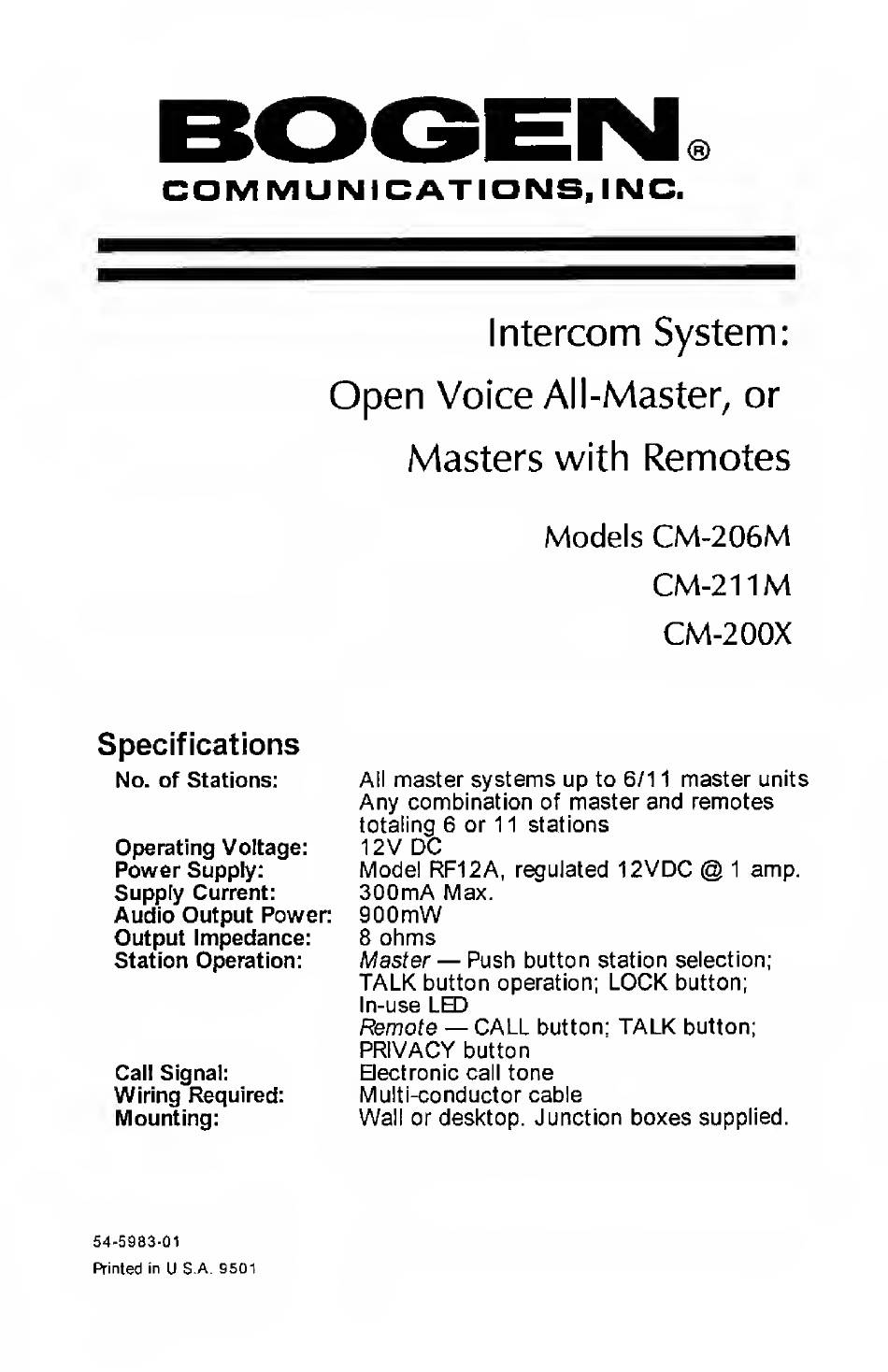

Bogen CM-206M Quick Start Manual

COMMUNICATIONS, INC.
Intercom System:
Open Voice All-Master, or
Masters with Remotes
Models CM-206M
CM-211M
CM-200X
Specifications
No. of Stations:
Operating Voltage:
Power Supply:
Supply Current:
Audio Output Power:
Output Impedance:
Station Operation:
Call Signal:
Wiring Required:
Mounting:
All master systems up to 6/11 master units
Any combination of master and remotes
totaling 6 or 11 stations
12V DC
Model RF12A, regulated 12VDC @ 1 amp.
300mA Max.
900mW
8 ohms
Master — Push button station selection;
TALK button operation; LOCK button;
In-use LED
Remote — CALL button; TALK button;
PRIVACY button
Electronic call tone
Multi-conductor cable
Wall or desktop. Junction boxes supplied.
54-5983-01
Printed in U S.A. 3501
