Series DS-8 – 8.0 K-factor, Dry-Type Sprinklers
Pendent and Horizontal Sidewall
Standard Response, Standard Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp503
General
Description

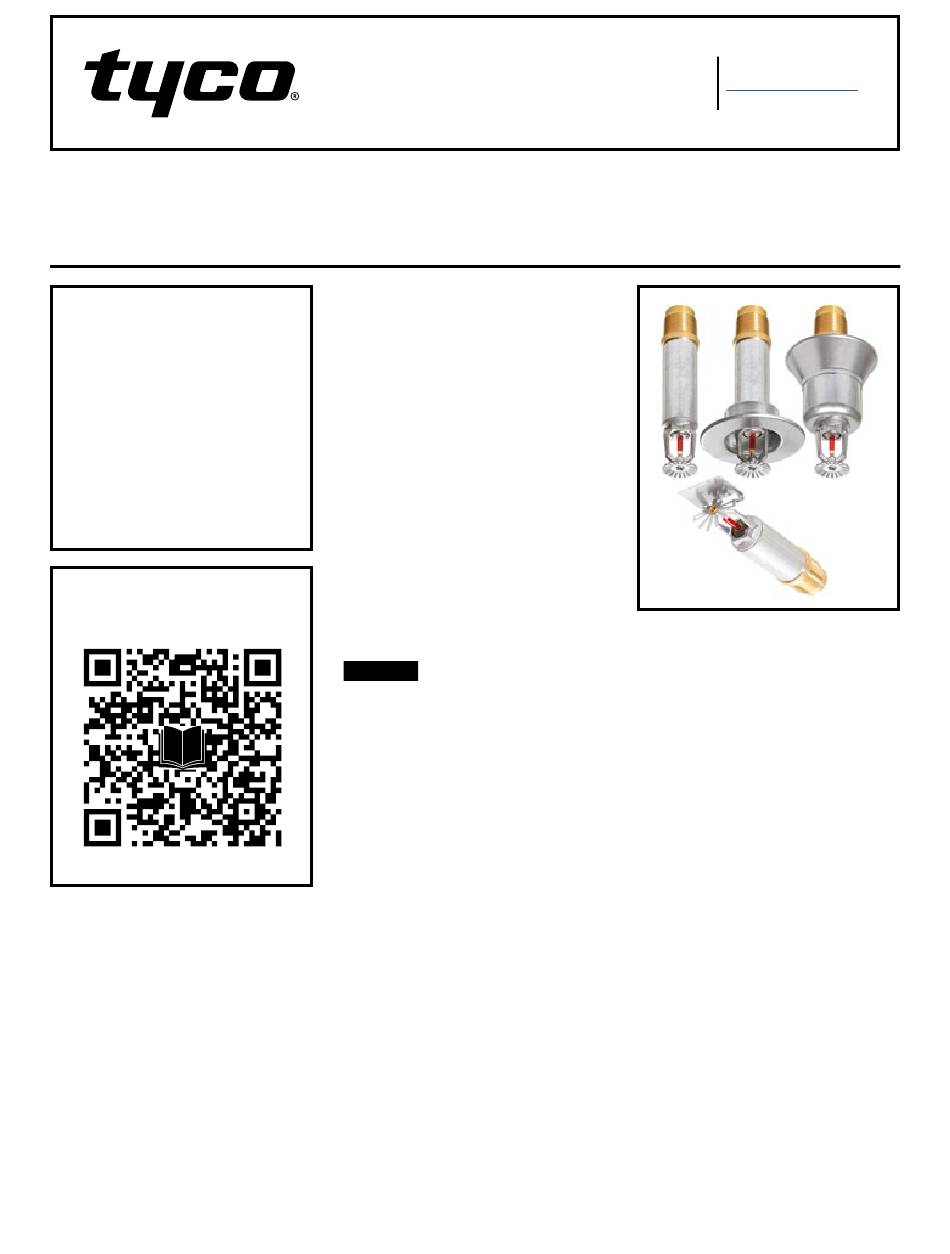

The TYCO Series DS-8 8.0 K-fac-
tor, Pendent and Horizontal Side-
wall (HSW), Standard Response,
Standard Coverage Dry-Type Sprin-
klers are stainless steel sprinklers
listed by UL and C-UL. The stan-
dard response bulb size is 5 mm.
For information about the Series DS-8
Quick Response (3 mm bulb) sprin-
klers, see technical data sheet TFP513.
Page 1 of 8
Use the sprinklers in wet-pipe, dry-
pipe, or preaction systems based on
the following criteria:
• On dry pipe systems that are
exposed to freezing temperatures,
for example, sprinkler drops from
unheated portions of buildings
• When sprinklers and/or a portion
of the connecting piping may be
exposed to freezing tempera-
tures, for example, sprinkler drops
from wet systems into freezers,
sprinkler sprigs from wet systems
into unheated attics, or horizontal
piping extensions through a wall to
protect unheated areas of a building
such as loading docks, overhangs,
and building exteriors
• On systems that are season-
ably drained to avoid freezing, for
example, vacation resort areas
NOTICE
The TYCO Series DS-8 Dry-Type Sprin-
klers described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Series DS-8 Dry-Type Sprinklers must
only be installed in fittings that meet
the requirements of the Design Crite-
ria section.
Sprinkler
Identification
Number (SIN)
TY4255 . . . . . . . . . . . . . . . . . Pendent
TY4355 . . . . . . . . Horizontal Sidewall
MAY 2024
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL and C-UL Listed
Note: For more information, see Table A and
Table B.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1 in. NPT
ISO 7-R 1
Discharge Coefficient
K=8.0 gpm/psi ½ (115,2 lpm/bar
Temperature Ratings
See Table A and Table B
Finishes
Sprinkler: See Table D
Escutcheon: See Table D
Physical Characteristics
Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Yoke . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Casing . . . . . . . . . . . . . Galvanized Carbon Steel
Bulb Seat . . . . . . . . . . . . . . . . . . . Stainless Steel
Bulb (5 mm dia.) . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Guide Tube . . . . . . . . . . . . . . . . . Stainless Steel
Water Tube . . . . . . . . . . . . . . . . . Stainless Steel
Spring . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Sealing Assembly . . Beryllium Nickel w/TEFLON
Escutcheon . . . . . . Brass Plated, Chrome Plated
Polyester, or Stainless Steel
½ )
TFP503
