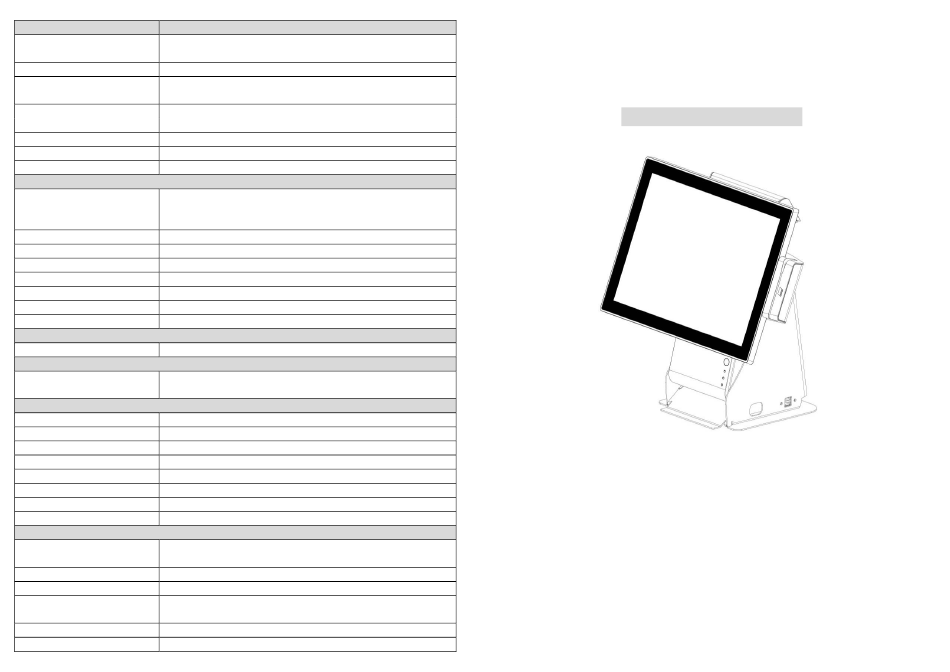

Tysso AP-3115-RK3399 Quick Installation Manual


Specifications
Model Name
Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz +
Core Logic
System Memory
Storage
LCD Panel
Touch Panel
Speaker
Wi-Fi
I/O Expansion
USB
LAN
COM
HDMI
Audio
Cash Drawer 1 x RJ11 port supports 1 cash drawer with 12V or 24V
DC Power Out
DC Power In
Integrated Peripheral
Thermal Printer (PRP-250X) Thermal Printer with cutter, 203 dpi and 250 mm/s
Power Management
Power Adapter
Mechanical & Environmental
Dust and Water
Tilt Adjustment
Dimension
Weight
Certification
Operation System
0°C to +40°C / 20 to 80% without condensation
Operation Condition
Storage Condition -20°C to +55°C / 20 to 85% without condensation
Optional Accessories
2nd Display
Customer Display
MSR
Bi-directional, comply with ISO 7811 and Track 1 & 2 & 3 supported
MSR - Comply with ISO 7811/JISII and Three Track
Combo Card Reader
RFID - Comply Mifare, ISO14443AB-4 and Felica
i-Button
4G LTE
*The product information and specifications are subject to change without prior notice.
AP-3115-RK3399
Quad-core Cortex A53 up to 1.4GHz
Onboard 4GB LPDDR4 1866MHz
Onboard 32GB eMMC 5.1 (Max. 64GB)
1 x Micro SD Card Slot (up to 128GB)
15-inch TFT LCD with LED Backlight
1024 (W) RGB x 768 (H)
True-Flat Projected Capacitive Multi Touch
1 x 2W High Quality Speaker
Wi-Fi IEEE 802.11 a/b/g/n/ac
- 2 x USB-A 3.0 and 1 x USB-C 3.0 (Bottom)
- 2 x USB 2.0 (Stand Side)
- 2 x USB 2.0 (Panel Side)
1 x RJ45 10/100/1000Mbps Giga Ethernet
2 x COM (RJ45), w/ RI/5V/12V by jump
1 x HDMI Port
1 x Line-out and 1 x MIC-in
1 x +12V Power Out
1 x Standard Mini-DIN 4PIN type
12V@5.0A 60W Adapter (System)
24V@2.5A 60W Adapter (Printer)
IP65 on Front Panel
15° ~ 85 °
355.3 (W) x 416.4 (H) x 296.1 (D) mm
8.3 kg
CE/FCC/LVD
Android 9.0*
10.1" (1280 x 800) LCD Display
Option : PCAP Touch Panel
VFD and LCD Customer Display
Dallas i-button Reader
4G LTE Mini-PCIe with External Antenna Rod
AP-3115-RK3399
15 Inches All-In-One POS System
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.
 Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified range
(100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are
firmly installed.
