Summary of Contents for DIVAR LWL2CXBALBI

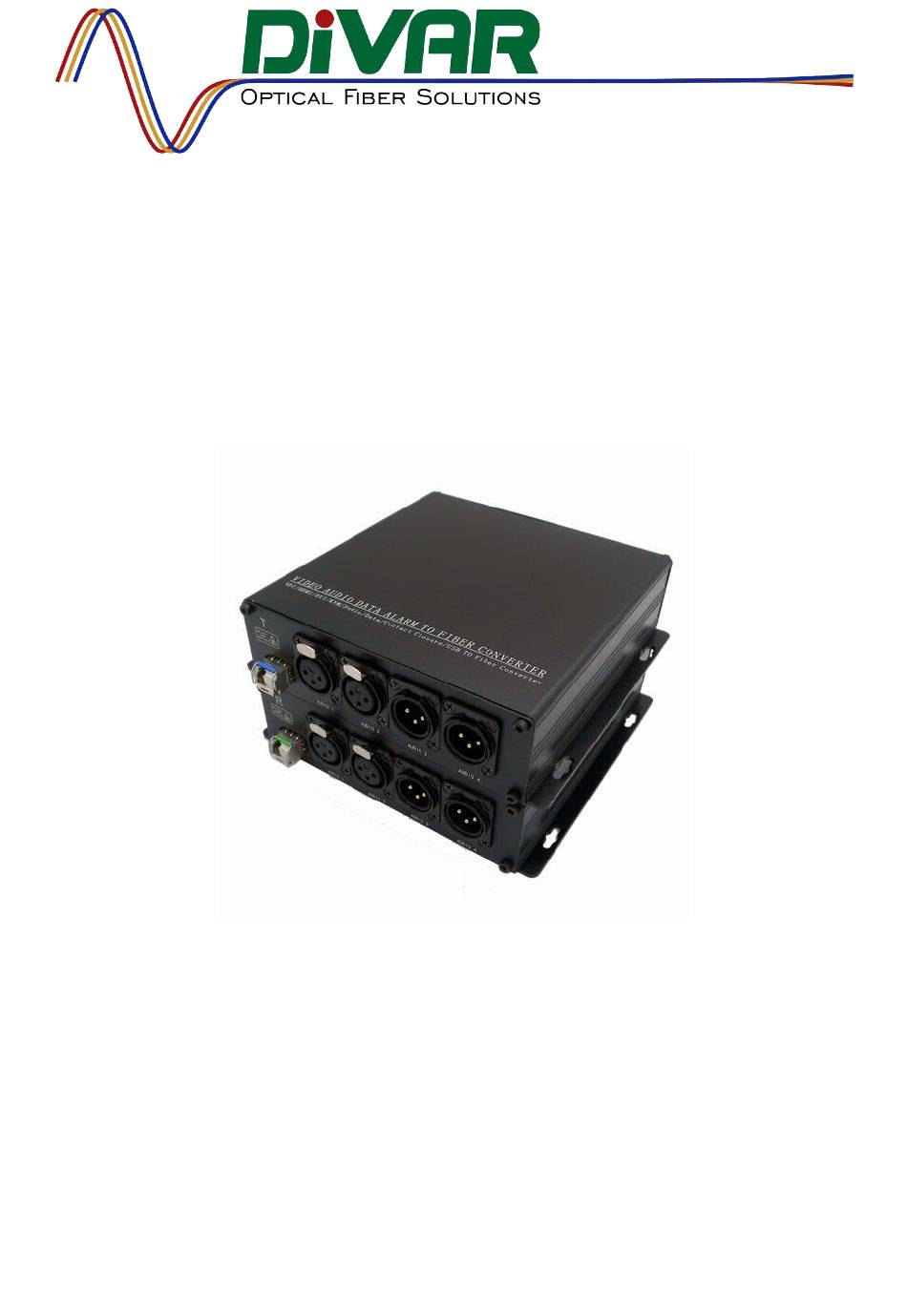

- Page 1 LWL2CXBALBI USER MANUAL Stereo Audio over Fiber - bi-directional Import, Manufacturing and Distribution by vuetec.tv UG (haftungsbeschränkt) Hasselbusch 124a | Henstedt-Ulzburg | Germany +49 - 4193 - 880 3405 | www.vuetec.tv...
- Page 2 Also, the technical information contained herein regarding the device features and specifications is subject to change without further notice. DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 2...
-
Page 3: Table Of Contents
LWL2CXBALBI Table of Content LWL2CXBALBI Stereo Audio over Fiber bi-directional................4 Includes.............................4 Features.............................4 Specifications............................5 Interfacing the LWL2XCBALBI ........................6 Transmitter............................6 Fiber I/O............................6 Status Indicator LEDs........................6 Audio I/Os.............................6 Power I/O............................6 Receiver............................7 Fiber I/O............................7 Status Indicator LEDs........................7 Audio I/Os.............................7 Power I/O............................7 XLR Connector ..........................8 Fiber Connector ..........................9... -
Page 4: Lwl2Cxbalbi Stereo Audio Over Fiber Bi-Directional
LWL2CXBALBI LWL2CXBALBI Stereo Audio over Fiber bi-directional The DIVAR LWL2CXBALBI fiber extender kit sends 2-channel, bi-directional, balanced line level audio over a single fiber. The system consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on multi mode or single mode optical fiber. This extender transmits a broadcast quality audio signal up to 500 m on multi mode fiber and up to 20 km on single mode fiber. -
Page 5: Specifications
Storage Temperature: -40°C ~ +85°C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours NOT FOR USE WITH IFB SYSTEMS WHERE AUDIO IS MODULATED WITH VOLTAGE NOT FOR USE WITH PHANTOM POWERED DEVICES DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 5... -
Page 6: Interfacing The Lwl2Xcbalbi
Power is supplied via a 5.5x2.5 mm DC plug on the back of the device. If necessary, a protective earth can be connected to the Ground screw next to the DC socket. DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 6... -
Page 7: Receiver
Power is supplied via a 5.5x2.5 mm DC plug on the back of the device. If necessary, a protective earth can be connected to the Ground screw next to the DC socket. DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 7... -
Page 8: Xlr Connector
See pin-out below. XLR Connector Pin Female Male Pin 1 Audio Ground Audio Ground Pin 2 Balanced Audio + Balanced Audio + Pin 3 Balanced Audio - Balanced Audio - DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 8... -
Page 9: Fiber Connector
LWL2CXBALBI Fiber Connector All DIVAR Fiber Optic devices are available with different fiber connectors. The user can choose between the following connections when ordering. Type Description Order number SC is a snap-in connector with a 2.5 mm ferrule that LWLxxxxx-SC is widely used for it's excellent performance. -
Page 10: Power Supply
50/60 Hz input range], similar to the power supply shown below. Note: The LWL2CXBALBI features environmentally conscious packaging material to protect the LWL22CBAL system during transportation and can be used for temporary storage when better forms of storage are not available. -
Page 11: Set Up Instructions
SEEN BY THE NAKED EYE TO THE FIBER AGAIN RENDERING THE SYSTEM USELESS, PLEASE CLEAN THE FIBER OPTICAL CONTACTS EVERYTIME PRIOR TO INSERTING THE CONNECTOR INTO THE JACK ON THE UNITS !!! FIBER OPTIC CLEANING KITS ARE AVAILABLE FROM YOUR DEALER/SUPPLIER !!! DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 11... -
Page 12: Sicherheitshinweise
• Service: Do not attempt to open or service this unit yourself as opening or removing covers may expose you to dangerous voltage of other hazards. There are no user-serviceable parts inside the unit. If the unit requires service please contact your authorized dealer, or an authorized repair service company. DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 12... -
Page 13: Conformity Declaration
UG, Hasselbusch 124a, 24558 Henstedt-Ulzburg declares hereby, that the product: Product name: Audio Over Fiber Extender Model number: LWL2CXBAL | LWL2CBAL | LWL2CXBALBI | LWL2CXBALBI Year of construction: 2016 corresponds to the regulations of the guidelines described above: The following harmonized norms were used: •... -
Page 14: Eingeschränkte Garantie
Kabel müssen frei von Markierungen und Kratzern und sauber gewickelt sein. Limited Warranty Your DIVAR product was hand built, inspected and tested to ensure a high quality of workmanship and reliability. The MANUFACTURER warrants the product to be free from defects in the material and workmanship for 24 month from the date of purchase from the SELLER or an authorized dealer. - Page 15 LWL2CXBALBI DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 15...
- Page 16 LWL2CXBALBI DIVAR is a trademark of vuetec.tv UG Henstedt-Ulzburg Germany ©2016~2024 vuetec.tv UG – All Rights reserved DIVAR LWL2CXBALBI Stereo Audio over Fiber Page 16...
