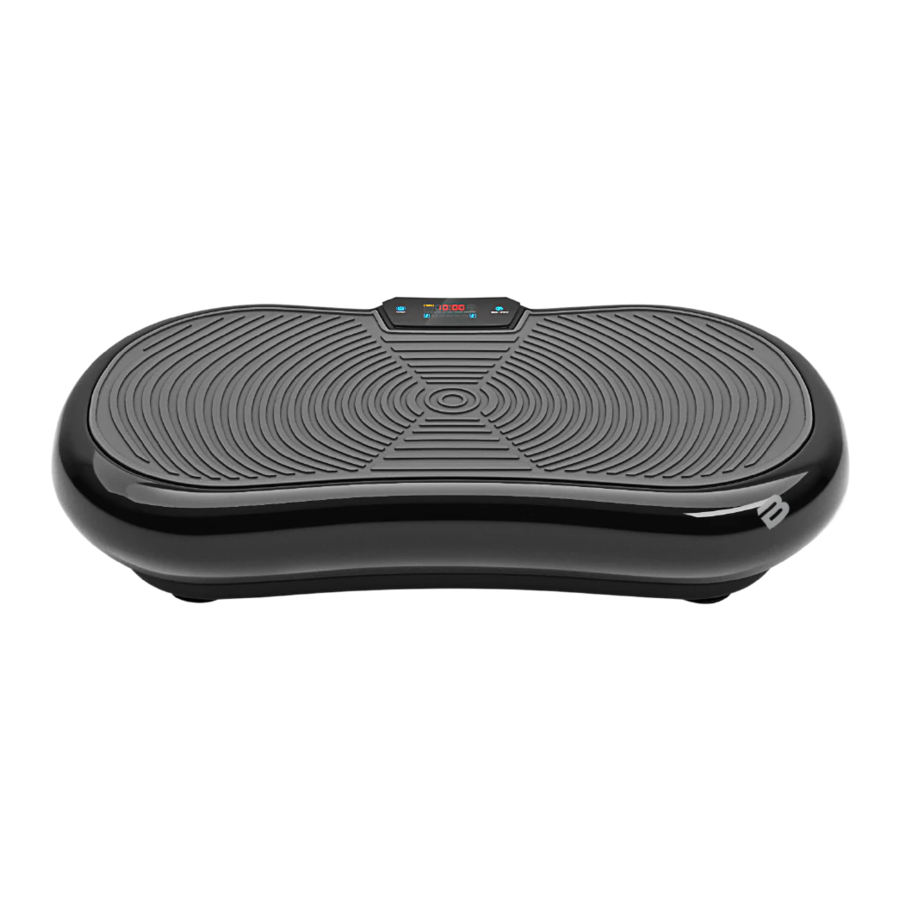

BLUEFIN Fitness Ultra Slim Manual

WHAT'S IN THE BOX

1 x Bluefin Ultra Slim Vibration Plate
1 x UK Power Cable
1 x EU Power Cable
1 x Instruction Manual
1 x Workout + Nutrition Guide
1 x Exercise Chart
2 x Workout Cables
1 x Remote Control

Using Accessories:
Your vibration plate comes with 2 bungee cables for use in upper body exercises in conjunction with the plate. Attach the silver clips on the bungees to the corresponding silver ring on either side of the bottom of the plate. Please do not attempt to attach or detach accessories from the plate while in use.

GETTING STARTED

1. Unbox your Bluefin vibration plate and place it on a flat, hard surface. If the surface is slightly uneven, adjust the feet under the plate. If you live in a flat or an apartment building we recommend placing a yoga mat or rug beneath the plate to absorb any noise. Bluefin fitness plates are very quiet but all vibration plates make at least some noise.
2. Insert 1x CR2032 battery into the remote control.
3. Insert the power cable into the back of the plate and plug the other end into the electrical outlet. Make sure the plate is close enough to the electrical outlet that the cord is not stretched. Ensure that the power switch next to the plug is turned on. If the switch is illuminated, the machine is on. When not in use, switch the machine off and ensure that this button is not illuminated.
4. Familiarise yourself with the screen and remote before stepping onto the plate. Place your feet on either side of the plate for more intensity and better balance. Please be sure to step on the plate slowly and carefully before starting any workout setting. We recommend beginning with speeds below 120 or using program setting P1.

CONTROLS

POWER
Keep power supply energized. press this key again, close the machine.

AUTO MODE
Automatic mode is activated once pressing this button. Press the button repeatedly to cycle through the "P1" "P2" "P3" "P4" "P5". Auto mode, humanized programming, automatically. Adjusting vibration frequency. In automatic mode, Speedand time is not adjustable.

S/T-
Speed or Time decrease:

1. Manual 1-180 press this button to decrease the speed when the machine is operating. In the standby mode, can adjust the time. Manual 1-20 press this button to decrease this time.

S/T+
Speed or Time increase:

1. Manual 1-180 press this button to increase the speed when the machine is operating. In the standby mode, can adjust the time. Manual 1-20 press this button to increase this time.

SHORTCUTS
Quick-key press the button repeatedy to through the "60" "120""180"NB/ Only available for Manual Program during workout.

Using Your Display

The display will show information for Time, Speed and Distance mid-workout.
Besides the remote control, you can also use the following display buttons to control your vibration plate.

POWER:
Press to start and stop your workout.

MODE/SPEED - prior to workout:

1. Scroll through Programs 1 to 5.
2. Once selected, press ON/OFF to start.

MODE/SPEED - during workout:
Press and/or hold to increase speed.
Speed can also be decreased once maximum speed level has been reached.

NB/Only available for Manual Program during workout.

WORKOUT SETTINGS

M
Manual Workouts:
The time can be programmed up to 20 minutes.
The speed level can be programmed up to 180.

Programmed Workouts:

P1
10 minute low-intensity program. Perfect for warming-up, gentle massage and recovery after exercise.
P2
10 minute low-to-moderate-intensity program. Perfect for gradual weight-loss and cellulite reduction.
P3
10 minute moderate-intensity program. Perfect for gradual weight-loss, muscle-toning and intensive massage.
P4
10 minutes high-intensity program. Perfect for muscle-toning and improving core-strength.
P5
10 minute ultra-high-intensity program. Perfect for all-round power and weight-loss training.

BLUETOOTH

1. Ensure your device has Bluetooth turned on and the device is 'discoverable'.

2. Turn your Bluefin Vibration Plate 'ON'. The Bluetooth module stimply turns on once the Vibration Plate has powered up.

3. The Vibration Plate will now appear in the Bluetooth devices list on your phone or tablet. You are now connected to the Vibration Plate and are ready to go!


CONTROL YOUR MUSIC & VOLUME DIRECTLY FROM YOUR DEVICE!

TECH SPECS

Program Chart

TECHNICAL CHARACTERISTICS

(EU)
Model Number: ULTRA SLIM
Rated Voltage: 220-240V~
Frequency: 50Hz
Rated Power: 200W

(US)
Model Number: ULTRA SLIM
Rated Voltage: AC100-120V~
Frequency: 60Hz
Rated Power: 200W

Bluetooth type: Bluetooth 2.4G
Bluetooth frequency: 2.402GHz - 2.480GHz
Maximum radio-frequency power: -5.80 dBm

Battery Type: 1 x Lithium CR2032
Don't dispose of in fire (Do not dispose of a battery into fire, mechanically crushing or cutting of a battery can result in an explosion.)
Don't store at temperature over 60°C (Do not leave battery in an extremely high temperature environment it can result in an explosion or the leakage of flammable liquid or gas; A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.)
Don't disassemble, crush or short-circuit.
Keep the appliance away from water.

SAFETY

• Please read this user guide before first using your Ultra Slim.
• It is important to keep these instructions for future reference.
• Keep the appliance away from children under the age of 8 years. If you have a known medical condition that may impact your ability to use this product, we strongly recommend you consult with your doctor or physician before using to avoid any risk of injury.
• Children shall not play with the appliance.
• Children and pets should be supervised at all times.
• Power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Only use accessory items recommended by the manufacturer.

  The instructions must be followed carefully in the assembly, use and maintenance of the equipment.
• Keep hair, fingers and loose clothing away from moving parts to avoid serious injury.
• Always consult your GP before undertaking any exercise programme.
• This product is not suitable for therapeutic purposes.
• This product is intended for home use only.
• Do not use the product in humid or dusty environments to avoid any risk of electric shock.
• Do not use the product if temperature exceeds 40°C/104°F.
• Ensure the product is on a flat and dry surface before use.
• Recommend to use with anti slip mat.
• Product size (max after assembly) 68 x 39 x 13.5 cm
• Footplate area dims 61.2 x 32.3 cm
• For consumer use only


Before using the Ultra Slim:
Wait an appropriate time after eating before using the appliance.
Ensure children under the age of 8 years and pets are kept away from the machine.
Make sure no fingers or foreign bodies are near the gap between the cover and the base of the unit whilst in operation.
The maximum user weight is 150 KG.
Only one person may be on the platform at a time.

Do not use the Ultra Slim if any of the following applies to you:
People who are undergoing medical treatment or have any medical concerns please consult your doctor prior to use.
Pregnancy
People with heart disease.
People with pacemakers or any other medical electronic instrument implanted.
People with artificial limbs.
People who are sensitive to vibration or strenuous exercise.

To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning.

To reduce the risk of burns, fire, electric shock, or injury to persons:
An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
Close supervision is necessary when this appliance is used by, on, or near children, or disabled persons.
Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service centre for examination and repair.
Do not carry this appliance by supply cord or use cord as a handle.
Keep the cord away from heated surfaces.
Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
To disconnect, turn all controls to the off position, then remove plug from outlet.

Stop using the Ultra Slim immediately if:

• Water comes into contact with the unit or the controller
• Any foreign bodies have been lodged inside the machine
• There is a power failure.
• There is an electrical storm.
• You feel unwell whilst using the unit.
• The power cord has any damage.

This product can expose you to chemical including [lead], which is known to the State of California to cause cancer, and [Bisphenol A], which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
