ENYA MUSIC Nova U Mini/ U / U Pro - Electric Guitar Manual

Table of Contents

Contents

1 ITEMS IN BOX
2 Specifications
3 HOW TO CHANGE STRINGS
4 INSTRUCTION OF ACOUSTICPLUS SYSTEM
5 CHARGING
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

ITEMS IN BOX

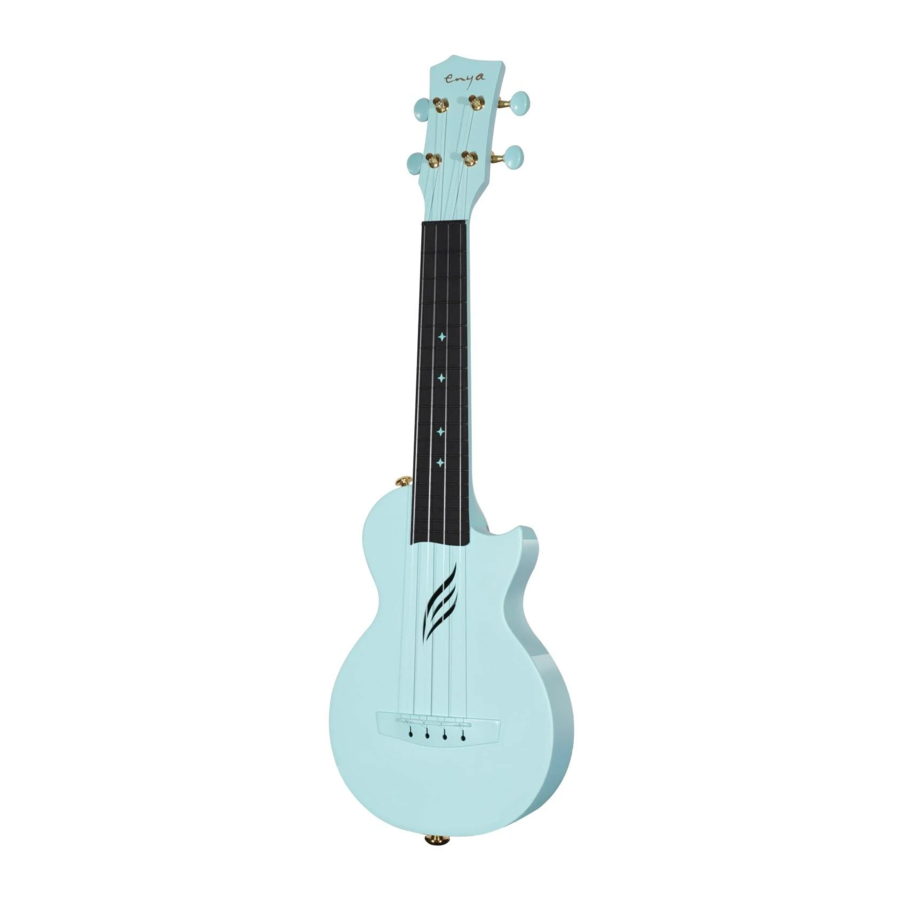

Nova U Ukulele
Case
Ukulele Strings
Ukulele Strap
Capo
Charging Cable (AcousticPlus^®
Model Only)
User's Manual

Specifications

Model	NovaUMini/NovaU/NovaUPro
Size	Soprano/Concert/Tenor
BodyThickness	1-3/4"/ 2"/ 2"
Weight	0.9 lbs/ 1.25 lbs/ 1.45 lbs
Top	CarbonFiberCompositePolycarbonate
Back & Sides	CarbonFiberCompositePolycarbonate
Neck	CarbonFiberCompositePolycarbonate
Fretboard	Radius(19.6")-CarbonFiber&Polycarbonate
Finish	Satin
TuningPegs	Open Classic
Nut & Saddle	CarbonFiberCompositePolycarbonate
Nut Width	1 - 3/8" / 1-3/8"/ 1-1/2"
Strings	EnyaFluorocarbon(S/C)/D'Addario®EJ87T(T)
Pickup	AcousticPlus®(Optional)

HOW TO CHANGE STRINGS

Loose the string by turning the tuning peg.
Note: Facing the tuner peg, turn clockwise to loose strings on left side; turn counterclockwise to loose strings on right side.
Remove the string by taking the end knot out of the slot.
Get the new strings ready and note the strings.
Make a knot at the end of string, the knot should be strong and big enough to not slip through the bridge.
Insert the string knot into the slot on the bridge.
Leave enough slack and cut the rest. Slack length is usually about double pegto-peg distance.
Wind the string by turning the tuning peg anti-clockwise.
Note: Avoid tightening the string excessively, use a tuner while tuning.

INSTRUCTION OF ACOUSTICPLUS^® SYSTEM

Please follow the instructions to explore the AcousticPlus^® features if you have purchased the Nova U AcousticPlus^® model.

HOW IT WORKS
INSTRUCTION OF ACOUSTICPLUS® SYSTEM
knob 1
Press and hold to turn on the AcousticPlus ® system, quick press to turn off. Turn to control volume.
knob 2
Turn to control sound effect.
knob 3
Turn to control sound effect.

The AcousticPlus^® uses as a regular acoustic-electric system as well. The output jack locates on the bottom of the ukulele body.

CHARGING

Please locate the micro USB charging port on the bottom of the ukulele body. Use a regular USB power source to charge the ukulele. Charging light turns into green from red once the battery is fully charged. The battery takes 2 hours to charge to full and provides a use time up to 6 hours.
