4.3.2 DLC location

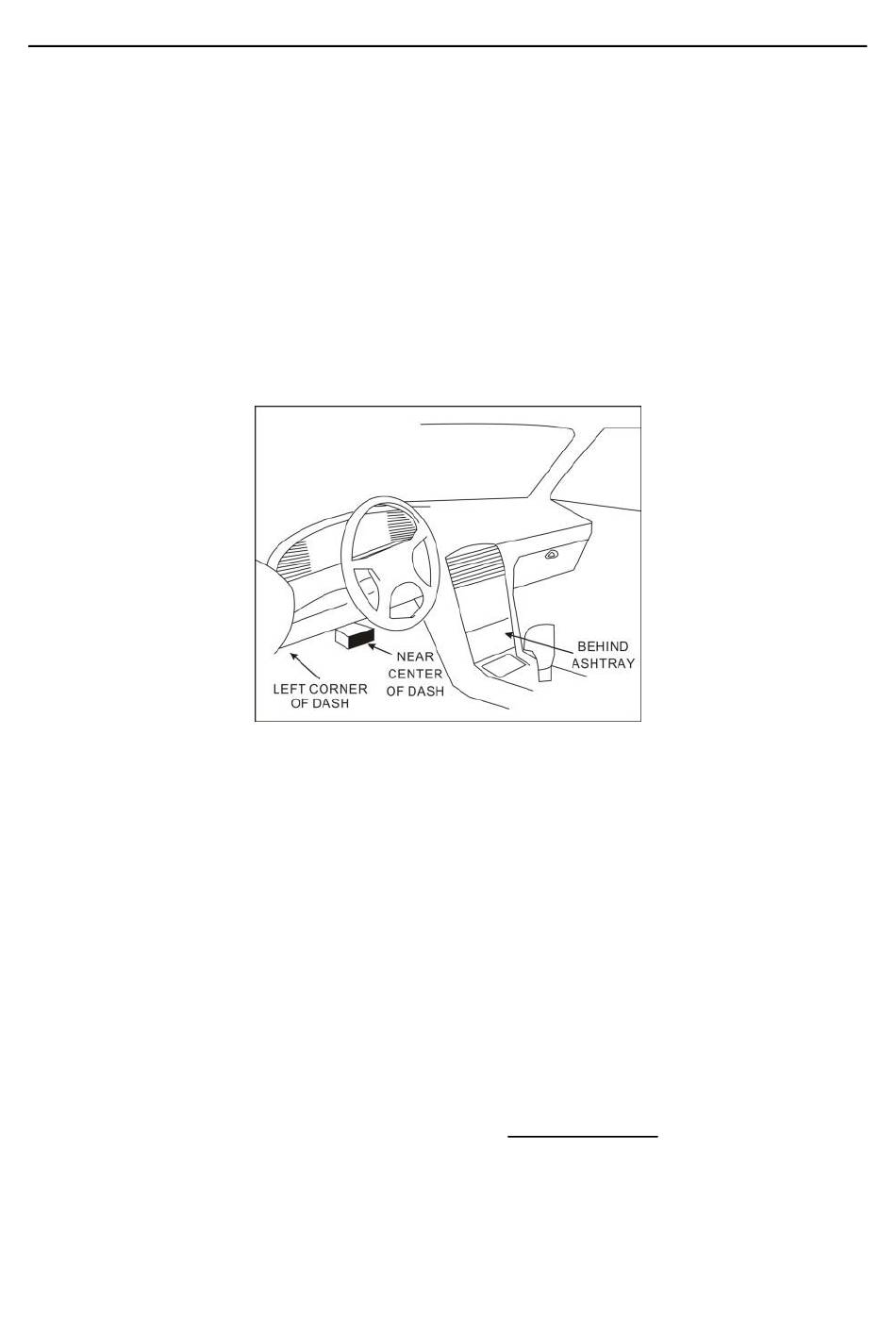

The DLC (Data Link Connector) is typically a standard 16-pin connector where
diagnostic tools interface with a vehicle‟s on-board control modules. The DLC is
usually located 12 inches from the center of the instrument panel, under or
around the driver‟s side for most vehicles. If DLC is not located under dashboard,
a label should be there telling location. For some Asian and European vehicles,
the DLC is located behind the ashtray and the ashtray must be removed to
access the connector. If the DLC cannot be found, refer to the vehicle‟s service
manual.

4.3.3 Vehicle connection

The method used to connect the VCI connector to a vehicle‟s DLC depends on
the vehicle‟s configuration as follows:
 A vehicle equipped with an OBD II management system supplies both
communication and 12 V power through a standardized DLC.
 A vehicle not equipped with an OBD II management system supplies
communication through a DLC connection, and in some cases supplies 12V
power through the cigarette lighter receptacle or a connection to the vehicle
battery.
Follow the steps mentioned below to connect OBD II vehicle:
1. Locate vehicle‟s DLC socket.
2. Plug the VCI connector into the vehicle‟s DLC socket (It is suggested to use
the OBD II extension cable to connect the VCI connector and DLC socket).
Creader Professional MOT III English User Manual
Fig. 4-7
