Tangible Waves VMIX-10 Quick Start Manual

VMIX-10
QUICK START GUIDE
Congratulations on your purchase of the VMIX-10 Audio Mixer!
This manual will guide you through the setup and operation of your new mixer, enabling you to
make the most of its features. Please read this manual carefully before using the mixer.
1
Overview

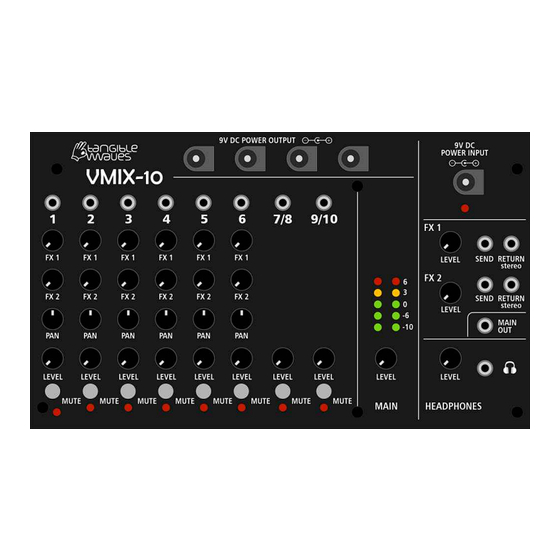

The VMIX-10 is an 10-channel audio mixer (6 mono channels, 2
stereo channels) designed for versatile audio mixing with special
focus on the Korg Volca series, sharing the mechanical
dimensions. It offers four isolated DC outputs to supply up to
four Volca synths. It features two FX send/return channels and a
built-in headphone amplifier for monitoring purposes. With its
straightforward controls and compact design, the VMIX-10 offers
convenience and flexibility in your audio setup.
2
Setup
Follow these steps to set up your audio mixer:
Ÿ
Connect the included power adapter to the VMIX-10 POWER INPUT socket and plug it into a wall outlet (use the
appropriate snap-on for your wall outlet type; included is EU, US, UK type; AU available upon request).
Ÿ
Connect your audio sources to the appropriate input jacks on the mixer via mono/stereo 3.5mm minijack cables.
Ÿ
Connect your audio output devices (amplifiers, speakers, etc.) to the MAIN OUT jack on the mixer.
Ÿ
Connect your effects unit(s): SEND on VMIX-10 to the input of the FX device (sends are mono); outputs of the FX
device to RETURN of the FX 1 / FX 2 section (stereo).
Ÿ
Connect your headphones to the dedicated headphone output on the mixer.
3
Channel controls
Each of the channels 1...6 on the VMIX-10 has various controls to adjust the audio signal.
Here is an overview of the controls:
Ÿ
FX Send Channels: The VMIX-10 features two dedicated FX send channels. These channels allow you to
route audio signals to external effects processors. Use the corresponding FX send controls to adjust the
level of the signal being sent to the effects processor.
Ÿ
PAN Control: The pan control adjusts the placement of the audio signal in the stereo field. Turn it
clockwise for right-channel dominance, counterclockwise for left-channel dominance, or leave it centered
for an equal distribution.
Ÿ
LEVEL Control: The level control adjusts the overall volume level of the channel.
Ÿ
The mute button silences the signal of the channel; when mute is active, the LED lights up.
The channels 7/8 and 9/10 are stereo input channels; these only have a level control knob.
www.tangiblewaves.com
6-2023
