GE-80,PM-80,RA-80

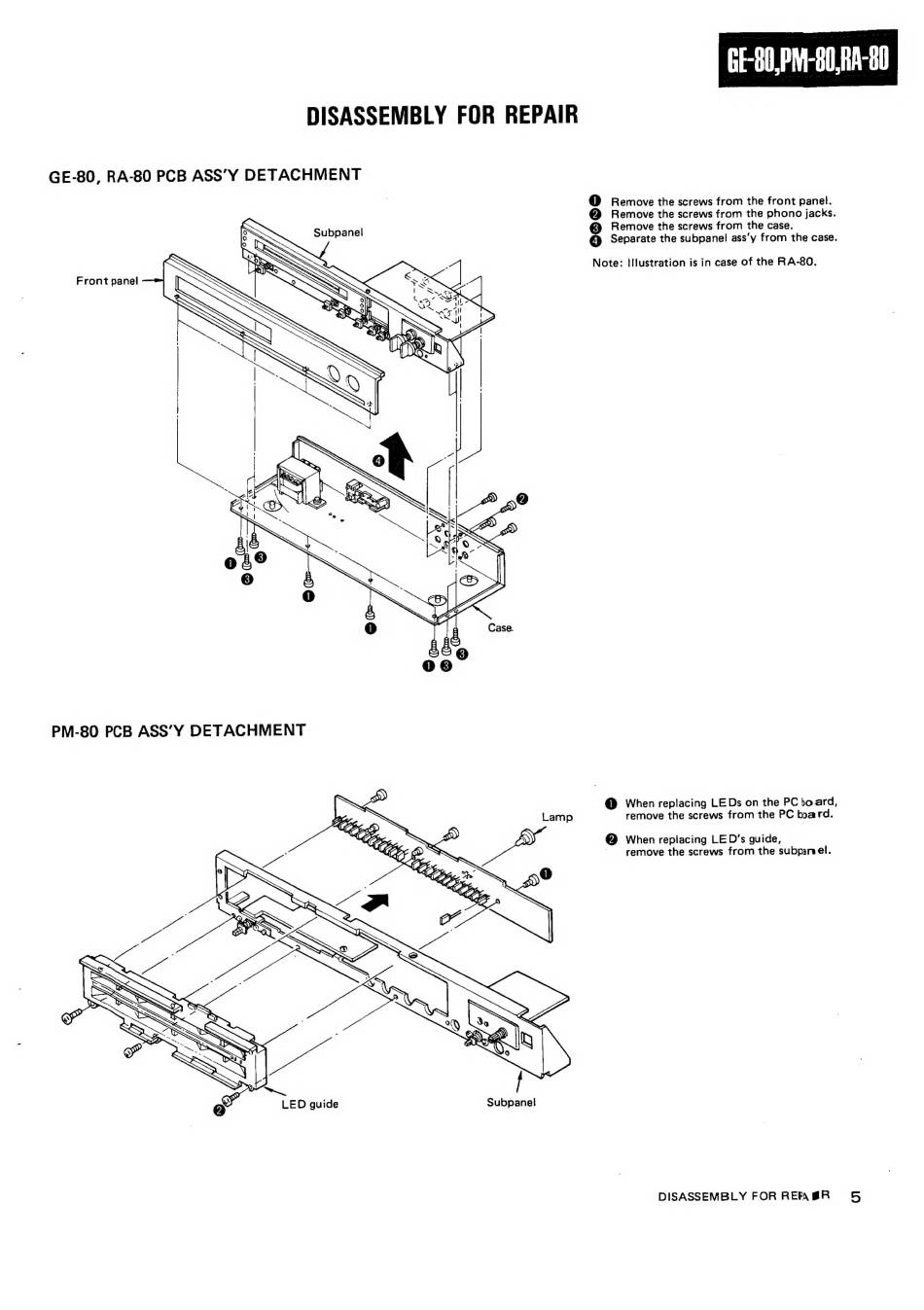

DISASSEMBLY FOR REPAIR
GE-80, RA-80 PCB ASS'Y DETACHMENT
@
Remove the screws from the front panel.
@
Remove the screws from the phono jacks.
Remove the screws from the case.
@
Separate the subpanel ass''y from the case.
Subpanel
Note: Illustration is in case of the RA-80.
Front panel
PM-80 PCB ASS'Y DETACHMENT
a)
|
Ps
@ When replacing LEDs on the PC board,
LE
ok
Lamp
remove the screws from the PC board.
"igen
aN
es
|
pu
@ When replacing LED's guide,
DISASSEMBLY
FOR REA BR
5
