Summary of Contents for Dunsch DU30020-10ATF

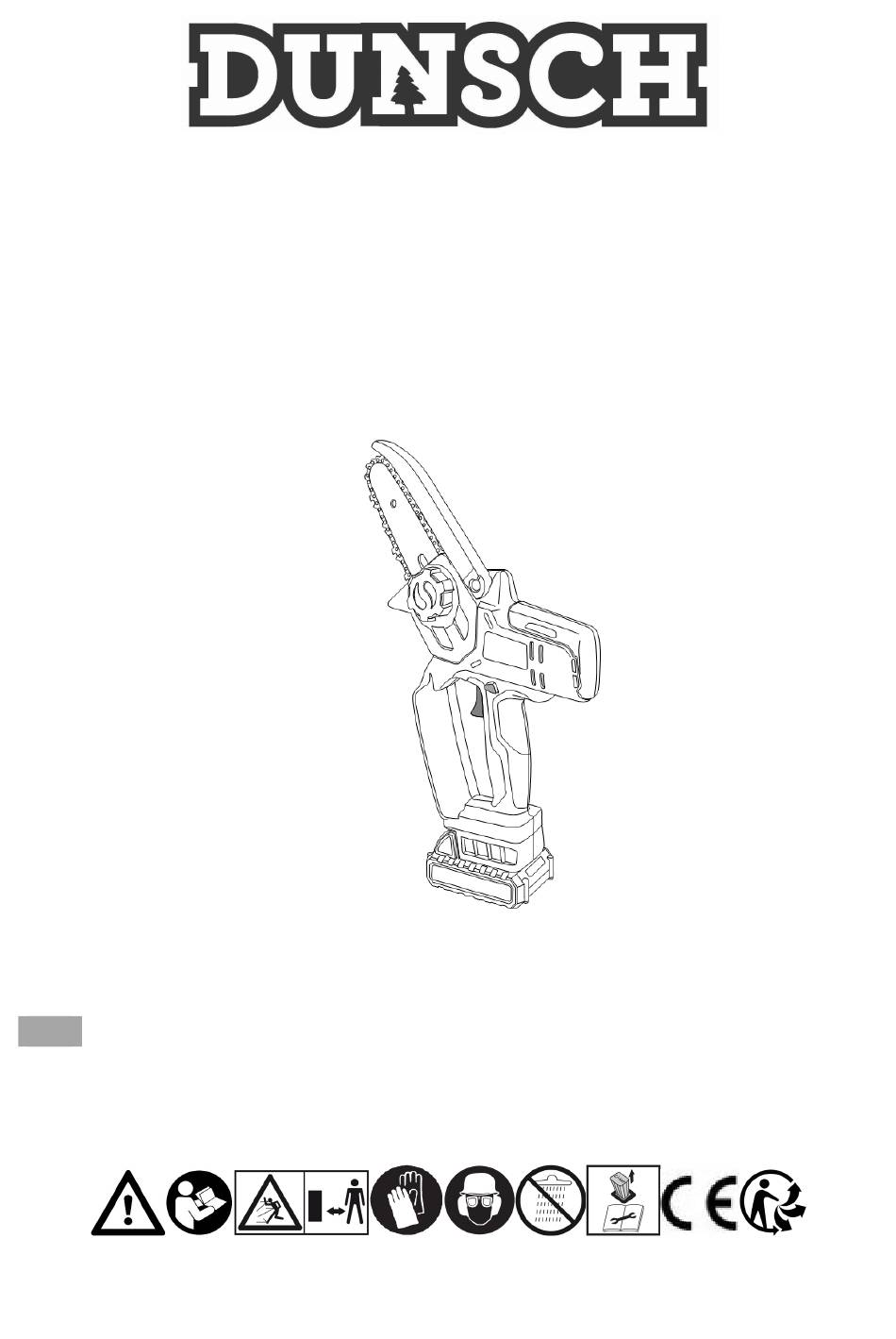

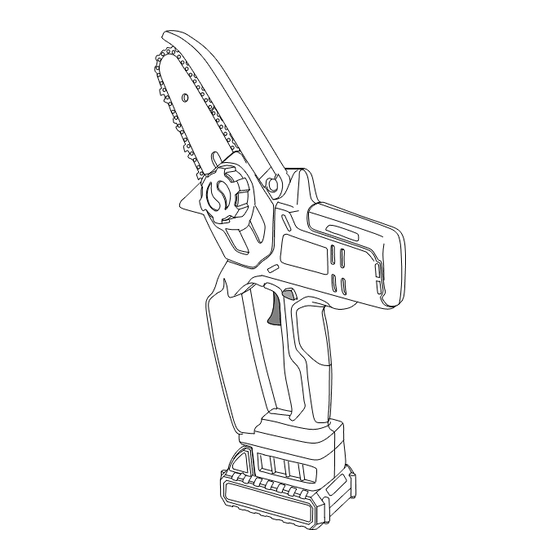

- Page 1 CORDLESS CHAIN SAW DU30020-10ATF MADE IN CHINA Original instructions...
-
Page 2: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. -
Page 3: General Safety Instructions
The charger is only suitable for indoor use. Do not dispose of batteries in household waste, fire or water. Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45°C). Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. - Page 4 balance. Operation Operate the machine only in daylight or in good artificial light. Please always place the appliance on even and stable surfaces. Do not operate or store the appliance in wet or humid surroundings. Always be sure of your footing on slopes. Walk, never run.
- Page 5 and accessories. Never disassembly the guards for cutting attachments. Always store the metal elements in cool and dry place, never use rusted chain or guide. It may cause serous injure during working. SPECIAL SAFETY WARNINGS FOR THE TOOL 1. Keep all parts of the body away from the saw chain when the chain saw is operating.
- Page 6 are slippery causing loss of control. 11. Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.
-
Page 7: Intended Use
negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire. • Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. -
Page 8: Technical Data
TECHNICAL DATA Model DU30020-10ATF Motor Voltage 20 V DC Max.cutting speed 4m/s Cutting length 80 mm Gudie bar 4“ Chain 4“ Chain pitch 6.35mm(1/4“) Chain gauge 1.1mm Net weight (including battery) 1.4 Kg Sound pressure level, L 77.9dB (A) K= 3dB (A) Sound power level, L 88.9dB (A) K= 3dB (A) - Page 9 Fig.1 ASSEMBLY Installing guide bar and saw chain 1) Loosen the fixing screw (8). Fig.2 2) Mount the guide bar then fit the saw chain around the bar and sprocket. Fig.3 WARNING: pay attention to the correct direction of the saw chain. 3).
- Page 10 Fig.4 4). Lubricate the saw chain Lubricate every 15-20 minutes of use. Fig.5 Tensioning the saw chain Caution: Before performing any maintenance or cleaning work, Always pull out the battery pack! Always wear protective gloves when working on the chainsaw to protect yourself against injury.
-
Page 11: Operation
Insertion the battery Fig.7 Put the battery pack into the chainsaw. Push down into battery compartment until the battery clicks into place. Remove battery pack Fig.8 Press and hold the battery latch button. Remove battery pack from the chain saw. ... -
Page 12: Working With The Chainsaw
Battery capacity indicator Fig.10 There are battery capacity indicators on the battery pack, you can check the capacity status of the battery if you squeeze the button Before using the machine, please press switch trigger to check if the battery is full enough for properly working. - Page 13 Tension of the saw chain, condition of the cutting elements. The sharper the chainsaw, the easier and more controllable it is to operate the chainsaw. The same also applies to the chain tension. Again, while working also check the chain tension every 10 minutes in order to increase your safety.
-
Page 14: Troubleshooting
Check that the saw chain are undamaged and show no signs of cracking or other damage. Replace the saw chain if necessary. Check that nuts and screws are tight. Check the chain brake is work correctly. Check the oil supply is work correctly. Before performing any maintenance or cleaning work, always pull out the battery pack! Cleaning:... - Page 15 Problem Possible cause Remedy No battery Put the battery into the battery. motor The battery is not properly Firmly insert the battery pack into does not inserted into battery holder. the battery holder. start. Overload protection Wait until the overload protection motor switched off.
- Page 16 CONFORMITY DECLARATION DECLARATION DE CONFORMITE DECLARACIÓN DE CONFORMIDAD DICHIARAZIONE CE DI CONFORMITÀ DECLARAÇÃO DE CONFORMIDADE GB-The undersigned DUNSCH EUROPE SRL（ITALY） FR -Nous soussignés Via dell’Artigianato n. 10, 29010 IT-Il sottoscritto GRAGNANO TREBBIENSE ES-El abajo firmante PT-Nós GB-hereby certifies that the units described below, Cordless chain saw FR-en notre qualité...
- Page 17 Dunsch Europe SRL Via dllArigianato Gaepien 10 1-29010 Gragnane Trebbiense(PC)ITALY Phone:+39 0523 787272 www.dunsch-europe.com...
