RIGHT END FRAME
HARDWARE
STEP-II

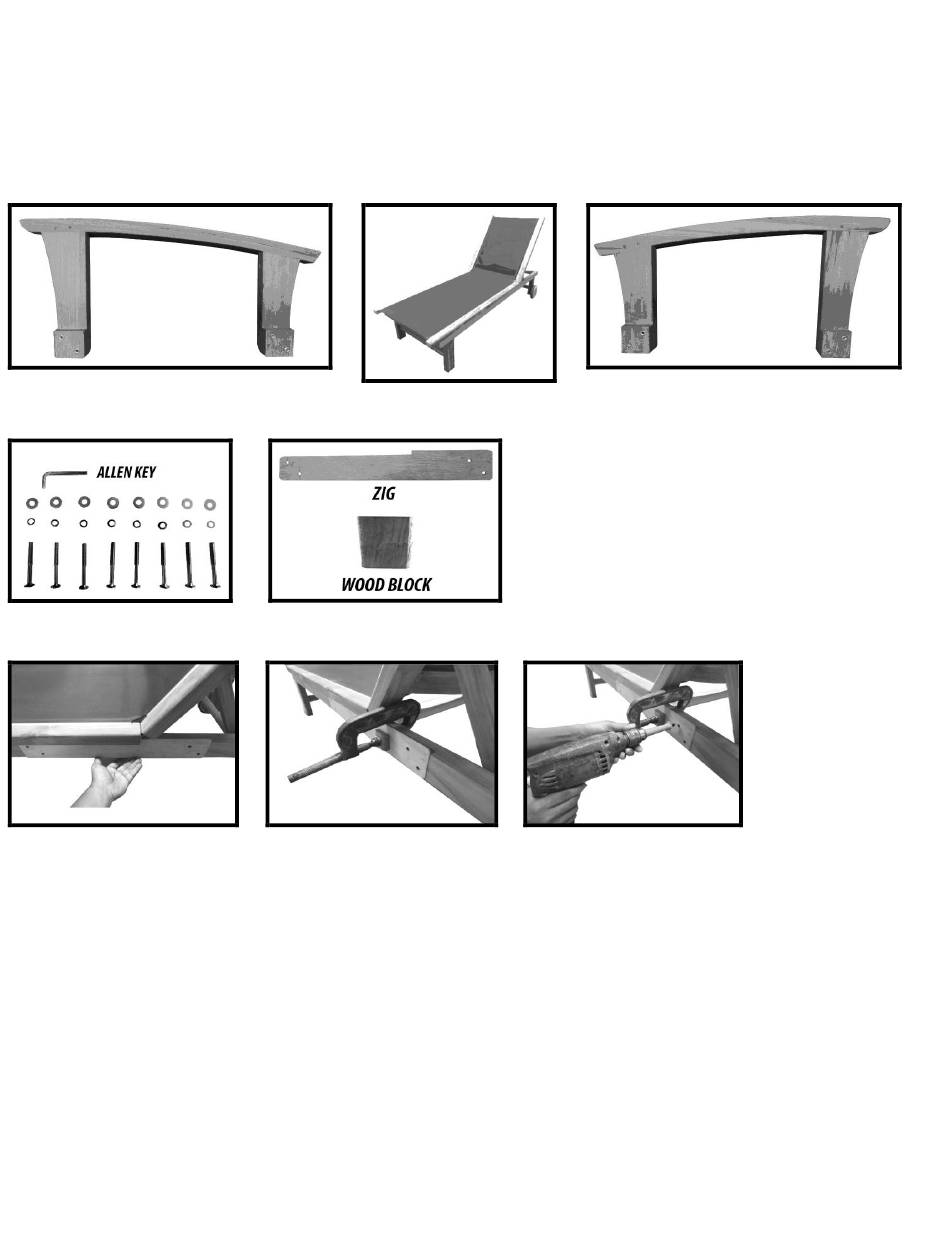

Place the TEMPLATE on the chaise body outer side rail as shown in the photograph;
TEMPLATE will slide into place and push up against SEAT FRAME. Use the WOOD
BLOCK and a standard C Clamp to secure TEMPLATE to side frame (wood block is to
protect the Teak from the clamp). Drill your holes slowly and evenly using 8mm diameter
drill bit.
KINGSLEY~BATE
Fine Garden Furniture
ASSEMBLY INSTRUCTIONS FOR THE ST-01
ST70
STEP-I
Unpack, inspect and lay the parts on a
clean, flat, soft surface to avoid marring
the wood.
