- Page 1 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/RED1800.1 RED2500.1/REA600.4/RED1800.5 User Manual WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
-
Page 3: General Precautions
RED600.1/RED1200.1/RED1800.1/RED2500.1/REA600.4/RED1800.5 INTRODUCTION Thank you for purchasing a Recoil ampli er for your car audio system. You have chosen Recoil because you deserve the best! Please thoroughly read through this manual before getting started. If you have any questions and require additional assistance, please contact support@recoilaudio.com. - Page 4 Connect the remote turn on cable to the REM( remote ) terminal. SPEAKER TERMINAL BLOCK Connect the speaker wire from ampli ers' speaker terminals to subwoofers or speakers. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
- Page 5 The Protect LED lights up when there is a problem with your ampli er. If the CLIP LED keeps ashing indicates clipping is present. At this point, please lower the ampli er's gain level until the CLIP LED only ashes at peak power. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
- Page 6 The CLIP LED is When ashing indicates clipping is present while playing source material At this point it is suggested to adjust the ampli ers gain level until the CLIP LED is only ashing on peak notes. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
-
Page 7: Rca Inputs
These lights indicate when the ampli er is powered up normally and when there is a protection fault. The Protect LED lights up when there is a problem with your ampli er. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are... - Page 8 The range of adjustment is limited between 50-250 HZ. REMOTE This port is for the remote level control. The control is intended to allow the user to control the level of bass from your driver's seat. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
- Page 9 Fully adjusted signal is transferred from master to slave amp via RCA cable. Master ampli er controls all crossover and remote control over Slave ampli er SLAVE AMPLIFIER Set switch on INPUT SLAVE WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
- Page 10 Connect Positive of slave amp's terminal to Negative of Subwoofer's terminal SLAVE AMPLIFIER CAUTION!! In strappble connection, Minimum working impedance is 2 ohm. Impedance lower than 2 ohm can damage the ampli ers. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
- Page 11 SPEAKER CONNECTION DAGRAM RED600.1 & RED1200.1 & RED1800.1 & RED2500.1 Caution !! Minimum working impedance is 1 Ohm. SPEAKER CONNECTION DAGRAM REA600.4 Caution !! REA600. 4 minimum working impedance is 2 Ohm. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...

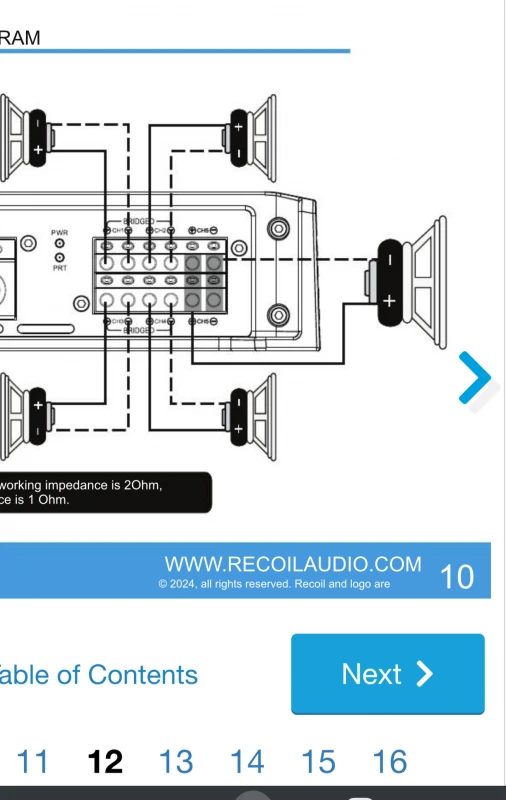

- Page 12 REA600. 4 minimum bridge working imededance is 4 Ohm. SPEAKER CONNECTION DAGRAM RED1800.5 Caution !! RED1800. 5 CH1&CH2&CH3&CH4 minimum working impedance is 2Ohm, CH5 minimum working impedance is 1 Ohm. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
-
Page 13: Troubleshooting
Engine noise is caused by poor grounding of ampli ers, headunit, other components, battery or alternator, so please check all grounding connection. POOR BASS RESPONSE • Please check speaker cables and reverse polarity. WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are... - Page 14 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/RED1800.1/RED2500.1/REA600.4/RED1800.5 WWW.RECOILAUDIO.COM © 2024, all rights reserved. Recoil and logo are...
- Page 16 User Manual WWW.RECOILAUDIO.COM COPYWRITE© 2024 RECOIL ALL RIGHTS RESERVED. RECOIL, AVS INDUSTRIAL CO. LTD AND DOMESTIC INVESTMENT GROUP, LLC ASSUME NO RESPONSIBILITY OR LIABILITY FOR FINES OR DAMAG- ES INCURRED AS A RESULT OF IMPROPER USE OF THIS PRODUCT.
