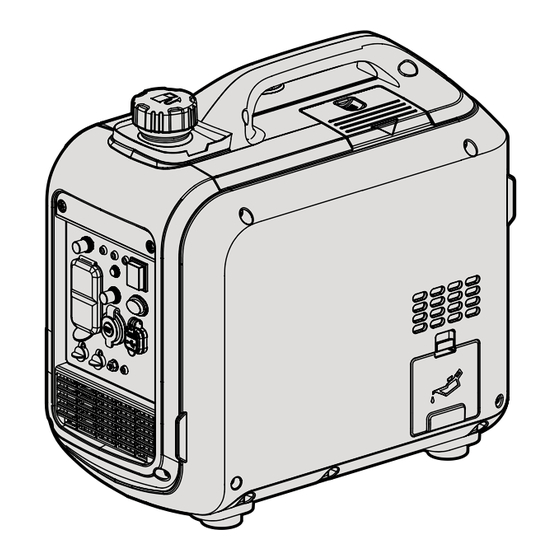

Wen 56280iX Instruction Manual

2800w portable inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL 56280iX
2800W PORTABLE
INVERTER GENERATOR
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-847-429-9263 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56280iX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 56280iX

Summary of Contents for Wen 56280iX

  • Page 1 1-847-429-9263 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Specifications ....................3 Introduction ..................... 4 SAFETY Safety Information ................... 5 Generator Safety Warnings ................6 BEFORE OPERATING Unpacking & Packing List ................9 Know Your Inverter Generator ................ 10 Generator Preparation ..................12 OPERATION & MAINTENANCE Starting Your Generator ................. 16 Using Your Generator ..................

  • Page 3: Welcome

    SPECIFICATIONS GENERATOR Rated Wattage 2250 Watts Surge Wattage 2800 Watts AC: 120V Rated Voltage DC: 12V / 5V USB AC: 18.7A Rated Amperage DC: 8.3A (12V Outlet), 2.1A / 1A (USB) Phase Single Frequency 60 Hz Decibel Rating 60 dBA (No Load) Length: 19.7 Inches Product Dimensions Width: 11.6 Inches...

  • Page 4: Service Record

    INTRODUCTION Thanks for purchasing the WEN 2800-Watt Inverter Generator. Refer to the illustration below for the location of the serial number on the specifications label. Record the generator information in the spaces provided below. If assis- tance for information or service is required, please contact customer service by calling 1-847-429-9263, M-F 8-5 CST;...

  • Page 5: Safety

    WEN reserves the right to change this product and specifications at any time without prior notice. At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual, please visit wenproducts.com for the most up-to-date manual or contact customer service at 1-800-232-1195, M-F 8-5 CST.

  • Page 6: Generator Safety Warnings

    GENERATOR SAFETY WARNINGS DANGER! CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.

  • Page 7: Operating Environment

    GENERATOR SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. BUTTON OR COIN CELL BATTERY SAFETY OPERATING ENVIRONMENT INFORMATION 1.

  • Page 8: Generator Operation

    GENERATOR SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a month for 20 to 30 minutes.

  • Page 9: Before Operating

    UNPACKING & PACKING LIST UNPACKING With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed.

  • Page 10: Know Your Inverter Generator

    KNOW YOUR INVERTER GENERATOR TOOL PURPOSE Inverter Generators provide you with clean and quiet power, when and where you need it most. Refer to the fol- lowing diagrams to become familiarized with all the parts and controls of your Generator. The components will be referred to later in the manual for assembly and operation instructions.

  • Page 11: Control Panel

    KNOW YOUR INVERTER GENERATOR CONTROL PANEL BREAKER ENGINE SWITCH PRESS TO RESET OVERLOAD RESET ECO-MODE NEMA 5-20R AC 120V 1. AC Circuit Breaker, 20A 8. Indication Lights Press to reset the NEMA 5-20R outlets. Low Oil (Yellow), Overload (Red), & Output (Green). 2.

  • Page 12: Generator Preparation

    GENERATOR PREPARATION The following section describes the necessary steps to prepare the generator for use. If you are unsure about how to perform any of the steps please call 1-847-429-9263 M-F 8-5 CST for customer service. Failure to perform these steps properly can damage the generator or shorten its life.
  • Page 13 Indicator TIP: Your WEN generator is compatible with the WEN GNA273 Magnetic Oil Dipstick (not included), available for purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from your generator’s oil tank to help preserve the engine and extend your generator’s lifespan.
  • Page 14 GENERATOR PREPARATION STEP 2 - ADD / CHECK FUEL WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead to explosion even if not directly in contact with gasoline.

  • Page 15: Step 3 - Ground The Generator

    This kit should be installed by a qualified mechanic. You can order the kit at wenproducts.com by searching part 56280iX-HA36 for 3000 to 6000 feet above sea level or 56280iX-HA68 for 6000 to 8000 feet above sea level. Refer to the instructions included with your altitude kit for more information about installation.

  • Page 16: Operation & Maintenance

    STARTING YOUR GENERATOR Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation” section of this manual. If you are unsure about how to perform any of the steps in this manual please call 1-847- 429-9263 M-F 8-5 CST for customer service.

  • Page 17: Before Starting The Generator

    STARTING YOUR GENERATOR BEFORE STARTING THE GENERATOR Fig. 8 1. Verify that the generator is outside on a dry, level surface. Allow at least two feet of clearance on all sides of the generator. 2. To maximize safety, check that the generator is properly grounded. See page 15, “GROUND THE GENERATOR.”...

  • Page 18: Using Your Generator

    USING YOUR GENERATOR CALCULATING THE WATTAGE OF YOUR DEVICE(S) Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run- ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the capacity of your generator and the capacity of each individual outlet.
  • Page 19 USING YOUR GENERATOR CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How- ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage listed on the electrical device before consulting this chart.

  • Page 20: Connecting Electrical Devices

    USING YOUR GENERATOR CONNECTING ELECTRICAL DEVICES When the rated wattage requirement of each electrical device has been determined, add these numbers to find the total rated wattage needed. If this number exceeds the rated wattage (2250W) of the generator, DO NOT connect all these devices.

  • Page 21: Eco-Mode Switch

    1685W. PARALLEL OPERATION The parallel connection ports allow you to connect two WEN generators to increase the total available electrical power. The WEN Parallel Connection Kit can be purchased from wenproducts.com. Follow the instructions in- cluded with your parallel connection kit for proper installation and operation.

  • Page 22: Some Notes About Power Cords

    USING YOUR GENERATOR SOME NOTES ABOUT POWER CORDS Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords, allow for a slightly higher rated wattage requirement by the electrical device. Device Requirements Max.
  • Page 23 • The CO sensor has a lifetime of about 7 years, and is capable of monitoring its lifetime. If your generator shows an error light several years after purchase, it may be time to replace the CO sensor. Contact WEN customer service...

  • Page 24: Shutting Off Your Generator

    SHUTTING OFF YOUR GENERATOR SHUTTING OFF THE GENERATOR 1. Turn off all electrical devices and then unplug the devices from the generator. CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec- trical devices connected and running. 2.

  • Page 25: Cleaning The Generator

    MAINTENANCE Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance checks and operations according to the schedule in Table 4. CAUTION! Never perform maintenance operations while the generator is running. Before maintaining or servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.

  • Page 26: Checking/Adding Oil

    6. Reinstall the oil access cover. TIP: Your WEN generator is compatible with the WEN GNA273 Magnetic Oil Dipstick (not included), available for purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from your generator’s oil tank to help preserve the engine and extend your generator’s lifespan.

  • Page 27: Draining The Carburetor

    MAINTENANCE DRAINING THE CARBURETOR We recommended draining the carburetor after every use (not necessary if the generator is shut off using the “FUEL OFF” option), and before storing the generator. Draining the carburetor can prevent the fuel from clogging up the carburetor and preventing the generator from starting. 1.

  • Page 28: Air Filter Maintenance

    If the air filter element has been damaged, replace it with a new one. Replacement air filters can be ordered from wenproducts.com by searching part no. 56280iX-183. 4. Reinstall the air filter element, air filter cover and side panel. WARNING! Running the engine with a dirty, damaged or missing air filter element can result in danger to the...
  • Page 29 MAINTENANCE DRAINING/CHANGING OIL Fig. 18 Change the oil according to the Recommended Maintenance Schedule in Table 4. Change the oil MORE OFTEN if operating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if it has become contaminated with water or dirt.

  • Page 30: Spark Plug Maintenance

    We recommend replacing with a NGK CR6HSA/Torch A5RTC spark plug (part no. 56280iX-158), available for purchase at wenproducts.com. 5. If re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base, then re-gap the spark plug.

  • Page 31: Spark Arrestor Maintenance

    3. Carefully clean and remove the carbon deposits from the spark arrestor screen with a wire brush. Replace the spark arrestor if it is damaged (replacement spark arrestors can be purchased from wen- products.com by searching the part no. 56280iX-119.1).

  • Page 32: Product Disposal

    TRANSPORTATION & STORAGE TRANSPORTING THE GENERATOR To prevent fuel spillage when transporting, be sure to perform the following: 1. Tighten the fuel cap and turn the vacuum relief valve to “OFF”. 2. Set the engine switch to “OFF”. 3. Drain the fuel tank if possible (see “DRAINING THE FUEL TANK”). 4.

  • Page 33: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING! Stop using the generator immediately if any of the following problems occur or risk serious personal injury. If you have any questions, please contact our customer service at 1-(800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com. PROBLEM POSSIBLE CAUSE SOLUTION...

  • Page 34: Wiring Diagram

    WIRING DIAGRAM...

  • Page 35: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST GENERATOR...
  • Page 36 Hose Clamp, 12mm 56280iX-012 3-in-1 Knob GN5600-030 Hose Clamp, 10mm 56280iX-013 Recoil Starter Handle GN5600-041 Combination Clamp Control Panel Phillips-head Screw, 14 56280iX-014ASM 56280iX-042 Assembly M4x12 56280iX-015 Control Panel Cover Combination Phillips- Control Panel Wiring 56280iX-043 and Slot-head Screw, 56280iX-016...
  • Page 37 EXPLODED VIEW & PARTS LIST GENERATOR PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 56280iX-057 Engine Assembly LED Indicator Light 56280iX-066 Assembly 56280iX-058 Fuel Gauge 56280iX-067 Reset Button 56280iX-059 Parallel Outlet, Black 56280iX-068 Eco-Mode Switch 56280iX-060 Parallel Outlet, Red 56280iX-069...
  • Page 38 EXPLODED VIEW & PARTS LIST ENGINE...
  • Page 39 EXPLODED VIEW & PARTS LIST ENGINE PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. Recoil Starter Flanged Hex Bolt, 56280iX-101 GN5600-101 Assembly M6x16 Flanged Hex Bolt, 56280iX-130 Crankshaft 56280iX-102 M6x14 56280iX-131 Bearing, 6204 Flanged Hex Bolt, 56280iX-132 Crankcase 56280iX-103 M6x16...
  • Page 40 EXPLODED VIEW & PARTS LIST ENGINE PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 56280iX-160 Stud, M6x88 Carburetor Insulator 56280iX-177 Plate Carburetor Insulator 56280iX-161 Gasket 56280iX-178 Stepper Motor 56280iX-162 Valve Rocker Set 56280iX-179 Carburetor Gasket 56280iX-163 Valve Oil Seal 56280iX-180...

  • Page 41: Warranty Statement

    (3) years from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for profes- sional or commercial use.
  • Page 42 NOTES...
  • Page 43 NOTES...
  • Page 44 THANKS FOR REMEMBERING V. 2024.04.29...
