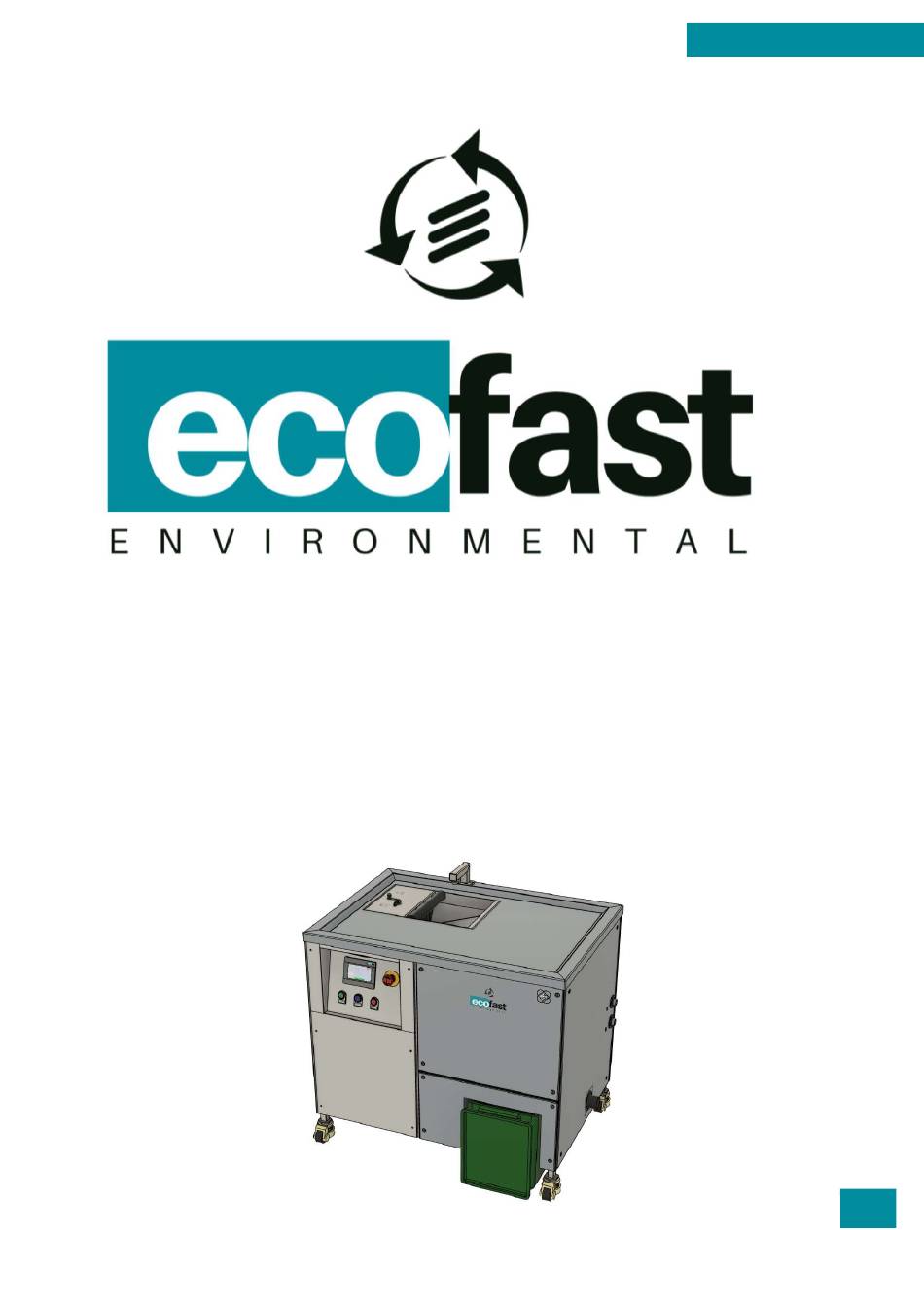

- Page 1 Ecofast Environmental UK Ltd Product Manual D1000 – Food Waste Dehydra WasteStation VERSION 1.8...
-
Page 2: Table Of Contents
Ecofast Environmental UK Ltd Model Number D1000-0 / D1000-1 / D1000-2 Customer / Site INSERT CUSTOMER NAME Serial Number EXAMPLE – 10-1022-002 Table of contents PRODUCT DIMENSIONS IMPORTANT NOTICE HEALTH & SAFETY INSTALLATION INSTRUCTIONS WATER & WASTE CONNECTIONS ELECTRICAL INSTALLATION... -
Page 3: Product Dimensions
Ecofast Environmental UK Ltd Product Dimensions Baffle & noise reduction cover Heavy including safety duty Water interlock Airbreak mechanism with cutlery saver as standard Recovered Wastewater Food waste receptacle / collection bin Operator Control Panel... -
Page 4: Important Notice
These signs are actively used in this Product manual and on the product itself. Attention Live parts Isolate the power and unplug the machine Wear gloves Wear foot protection Technical Details (Covers model numbers D1000-0/1/2) D1000 – Food WasteStation Mark III (DxWxH) D1000 Dewaterer Dimensions (mm) 700x1000x900 Water connections –... -
Page 5: Installation Instructions
Ecofast Environmental UK Ltd Installation Instructions After Unpacking and locating the machine to its operation area. Ensure the foot mechanism is lowered into the correct position ensuring the WasteStation wheels are not in contact with the floor and the unit cannot move. -
Page 6: Electrical Installation
Ecofast Environmental UK Ltd Should a grease trap or separator be used solely for the WasteStation, it must be specified by the supplier to suit the output of the WasteStation. If the unit outlet is positioned below tabling, it is important to use fittings, which give at least the minimum 220 mm clearance, required for service access. - Page 7 These holes on the underside of the WasteStation are for the power cable and the ethernet cable if fitted. The D1000 WasteStation is supplied with a mains cable measuring 2m long. If the supply cord becomes damaged, it must be replaced by qualified electrician in order to avoid a hazard.
-
Page 8: Operator Instructions
Ecofast Environmental UK Ltd The machine is now ready to operate! Operator Instructions (THIS WALL PLAQUE IS SUPPLIED WITH THE MACHINE) WARNING – DO NOT Tamper with the machine in any way Insert anything but food waste into the hopper. - Page 9 Correct positioning of the operator the machine. when using this machine. Operation of the Ecofast products must by a competent operator who has read this manual or undertaken the online training (the link is available by emailing info@ecofastuk.com). Starting the Machine To start the machine press and hold the start (green) button until the water starts running.
- Page 10 Ecofast Environmental UK Ltd Dos and Don’ts Poster ✔✔✔ ✗✗✗ Fibrous fruit & vegetables Plate scrapings (ie pineapple crowns, corncobs & artichokes) Large bones Vegetable & fruit in large peelings quantities Large volumes of Fish cooked starchy products Drink & Sauce...
- Page 11 Ecofast Environmental UK Ltd The machine is intended to process food waste only. Always process a mixture of materials and not just one type, especially if it is a dry material. Dry material must be fed into the hopper slowly to avoid blockages.
-
Page 12: Warranty Details
This product comes with a 2-year parts and labour warranty in the UK and 2 years parts only in exported regions. The warranty period is based on fair industry usage, regular service reviews in line with Ecofast recommendations or a maximum run time of 2,200 hours over the warranty period. -
Page 13: Spares Parts & Exploded Diagrams
Ecofast Environmental UK Ltd Liquid leaks under the Check macerator emergency drainpipe. If the macerator’s machine emergency drain (pag.11) is leaking, replace the macerator. Water falls into the bin Run one or several cleaning cycles. Unplug power cord and during working cycle remove possible clogging along the material’s path. - Page 14 Ecofast Environmental UK Ltd Water Delivery Assembly – (parts highlighted used on both cold & warm water assemblies) EC070062 – Flow sensor Hot Water Cold Water EC070038 – Solenoid valve EC070102 – Y-type Filter Macerator / Disposer Exploded diagram & Spare parts EC030056 –...
- Page 15 Ecofast Environmental UK Ltd Pump Exploded Diagram & Spare Parts EC050902 – Impellor Seals EC050903 – O-Ring EC00297 – Motor (0.75kW) EC050901 – Pump Impellor EC00999 – Pump Assembly EC00315 – Motor Gearbox...
- Page 16 Ecofast Environmental UK Ltd Dehydra (Dewaterer) & Spare Parts EP090117 Lip Seal 45x58x7 EC090123 Upper Bearing EP090116 Lip Seal 45x65x8 EP090116 Lip Seal 45x65x8 EC050001 Dehydra Motor 1.1kW 400-3-50Hz EC090122 Lip Seal 50x68x8 EC090121 Lip Seal 50x65x8 EC090124 Bottom Bearing...
-
Page 17: Ukca & Ce Certificate Of Conformance 16 +17
• 2011/65/EU – RoHS Directive Name and address of the person authorized to manage the technical file: Ecofast Environmental UK Ltd, Maesbrook, Oswestry, SY10 8QN The main technical standards applied are UNI EN ISO 12100:2010 Safety of machinery — General principles for design — Risk assessment and risk reduction UNI EN ISO 13857:2008 Safety of machinery —... - Page 18 • 2014/30/EU – EMC Directive • 2011/65/EU – RoHS Directive Name and address of the person authorized to manage the technical file: Ecofast Italia S.r.l. - Piazza Franco Martelli, 5 - 20162 Milano Main technical standards applied: • UNI EN ISO 12100:2010 •...
-
Page 19: Testing & Approvals
Ecofast Environmental UK Ltd MAINTENANCE MENU - RESTRICTED AREA – LOGIN The display features a maintenance restricted area. Restricted area features orange background screens and a key on the left. To enter proceed as follows: 1 Touch the orange lock... - Page 20 Ecofast Environmental UK Ltd RESTRICTED AREA – FEATURES Use black arrows on the bottom of the page to navigate the pages. In routine maintenance page, touching the left arrow will exit restricted area, back to main screen. Hereafter available screens are explained.
-
Page 21: Maintenance
Ecofast Environmental UK Ltd Maintenance – Any maintenance should be undertaken by an approved Ecofast service agent. When the display shows MAINTENANCE NEEDED, that must be carried out as soon as possible. Maintenance times are reliant on the correct use of the machine, type of food waste, available water. Thus it’s operator’s duty to follow the timeframes of regular maintenance times based on these parameters. -
Page 22: Non-Routine Maintenance
Ecofast Environmental UK Ltd Non-routine maintenance In the event of a breakdown of the machine, to prevent damage ensure the following actions are undertaken: Clean the machine as well as possible unplug the power cord apply an OUT OF ORDER / LOCK OFF label warning to the machine Control panel removal 1. - Page 23 Ecofast Environmental UK Ltd Macerator maintenance Remove rear panel, disconnect macerator wires and pipes. Pull the macerator out towards machine’s back and once macerator is clear of the WasteStation. 1. Loosen all 6 bolts to release the top cone 2. Lift the top cone 3.
- Page 24 Ecofast Environmental UK Ltd Accessing the Dewaterer belt & pulleys 1. Remove the rear panel to access the underside of the dewaterering unit 2. Remove the dewatering service panel by unscrewing the two bolts and the panel will drop down, this will...
-
Page 25: Where To Find Further Help / Contact Details
EC090124 Bottom Bearing Where to find further help / contact details We at Ecofast are here to help! Within the UK we have over 20 years of Food Waste Management design, project installation and servicing knowledge. We have offices in the UK, Italy, Dubai and China. Our Research and Design facility is based in Milan, Italy and the production facility is spread between the UK and Italy. -
Page 26: Disposal Of Machine / End Of Life Actions
2. deliver the machine to a special collection centre for electric and electronic waste. Illegal disposal of the machine implies financial sanctions as stated by the laws in force. Ecofast Environmental UK Ltd partner with LOOPCYCLE who are specialists in end-to- end asset disposal services; providing businesses and government institutions with a simple, compliant and sustainable solution. - Page 27 Ecofast Environmental UK Ltd Maintenance Record Data Task & description of work Next service date Service company Signature Data Task & description of work Next service date Service company Signature Data Task & description of work Next service date Service company...
