Rapid Spray ABSC050 Operator's Manual

Boomless spray kit
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
BOOMLESS SPRAY KIT
OPERATORS HANDBOOK
ABSC050

Advertisement

loading
Need help?

Need help?

Do you have a question about the ABSC050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rapid Spray ABSC050

Summary of Contents for Rapid Spray ABSC050

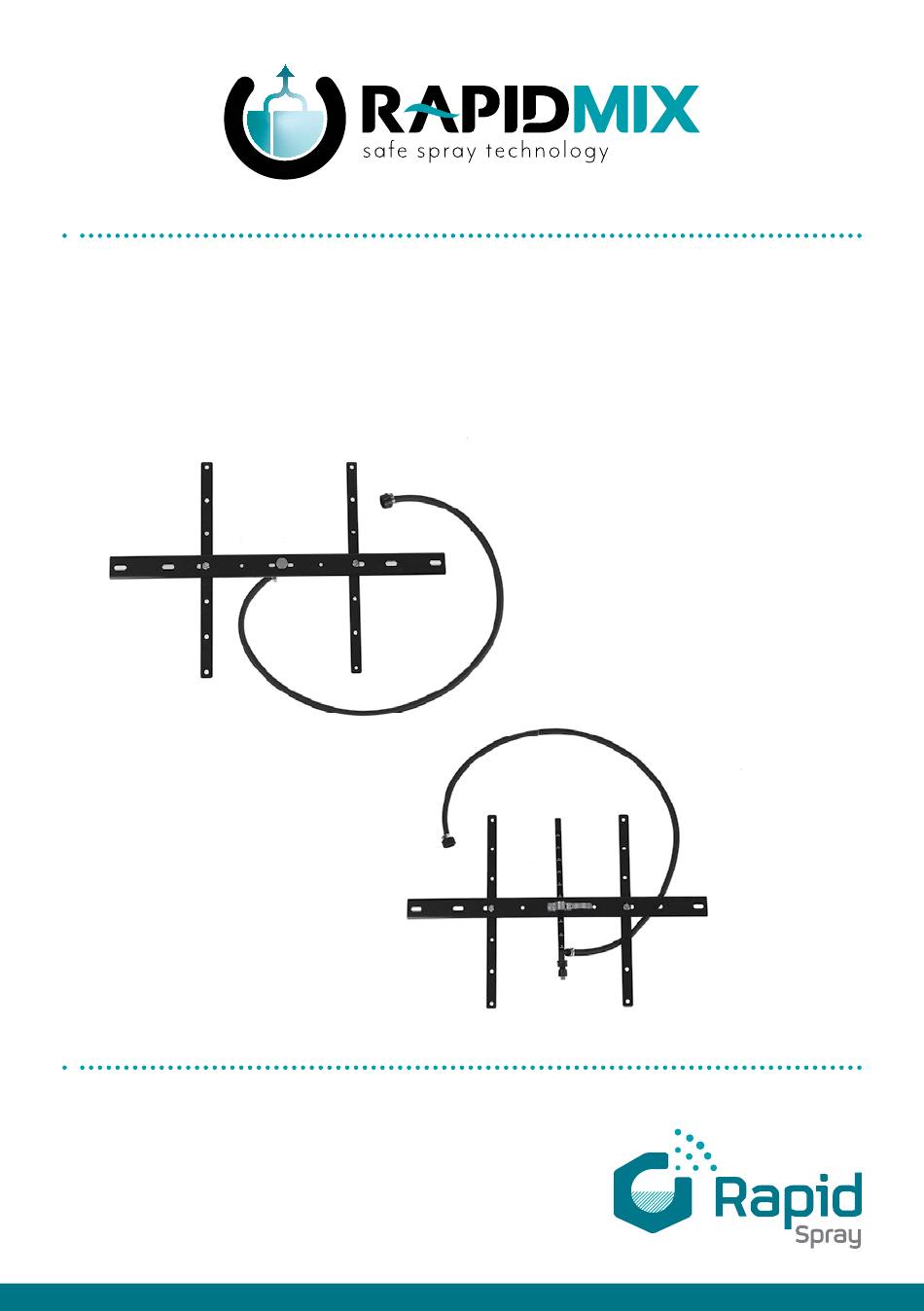

  • Page 1 BOOMLESS SPRAY KIT OPERATORS HANDBOOK ABSC050...
  • Page 2 Thread the swivel nut (item 5) to the water source. NOTE: with the blue stock nozzle it is recommended to not use boom assembly with a system of less than 6.4L/min and no less than 3.7L/min with the green nozzle. RapidMix by Rapid Spray...
  • Page 3 Disengage the camlock and insert the height adjustment tube (item 9) into the adjustable height camlock clamp (item 8). Fine tuning of the camlock handle bolt may be necessary for desire clamping force. RapidMix by Rapid Spray Jan 2020...
  • Page 4 Reinstall o-rings and anti-drip valve (items 10 & 11) into the hose elbow and capture with gray nozzle (item 12) and retaining nut (item 13). NOTE: with gray stock nozzle, it is recommended to not use boom assembly with a system of less than 3.7L/min. Completed Assembly RapidMix by Rapid Spray...
  • Page 5 Generally, the proper height will be from 33 - 45cm off the ground. Reference the product you’re spraying for desired mix ratio. NOZZLE PRESSURE (PSI) FLOW (L/MIN) Brass Flood Tip Grey P/N 015194 NOTE: all flow rates are per nozzle. RapidMix by Rapid Spray Jan 2020...

  • Page 6: Cleaning And Storage

    Never use metal objects to open clogged nozzles. Clean sprayer thoroughly before storing at the end of the spraying season. Permanent type anti-freeze added to the final rinse will leave a rust inhibiting film in parts of the sprayer. RapidMix by Rapid Spray...

  • Page 7: Replacement Parts

    REPLACEMENT PARTS REF NO. PART NO. DESCRIPTION CUY30010M Rubber Hose, 10mm 6-9103 Hardware Bag 6-9099 Upright Attachment Bracket, w/ Camlock Assembly 6-9102 Spray Boom Bracket ATPXP25105 Swivel Nut 6-9104 Height Adjustment Tube 6-9101 Nozzle Assembly RapidMix by Rapid Spray Jan 2020...
  • Page 8 Spray Boom Kit Operators Handbook See https://www.rapidspray.net/resources/warranty-registration to register your Rapid Spray product for warranty or call 1800 011 000. www.rapidspray.net 35 Enterprise Cres, Singleton NSW 2330 PO BOX 3119 Singleton NSW 2330 Telephone: 1800 011 000 Facsimile: 02 6571 2951...
