- Page 1 700 Emlen Way • Telford, PA 18969 Phone: 215.723.8155 Email: infofhs@onececo.com www.cecoenviro.com...
- Page 2 INDEX S S e e t t h h c c o o W W a a r r r r a a n n t t y y O O p p e e r r a a t t i i n n g g I I n n s s t t r r u u c c t t i i o o n n s s ( ( c c o o n n t t . . ) ) S S a a f f e e t t y y R R u u l l e e s s Inspection O O p p e e r r a a t t i i n n g g I I n n s s t t r r u u c c t t i i o o n n s s...
-
Page 3: Warranty
SETHCO WARRANTY WARRANTY SETHCO pumps are warranted by the Company, insofar as the same are of its own manufacture, against defects in materials and workmanship under proper and normal use and service, for a period of one year from the date of original shipment from the factory. SETHCO's obligation is limited, however, to furnishing without charge, F.O.B. - Page 4 SAFETY RULES FOR SETHCO VERTICAL PUMP MODEL ZDX Congratulations: You have just purchased a SETHCO PUMP, a quality industrial product manufactured to exacting standards. Thank you for choosing a SETHCO product. We look forward to serving your future requirements for quality industrial corrosion resistant pumps and filter supplies.

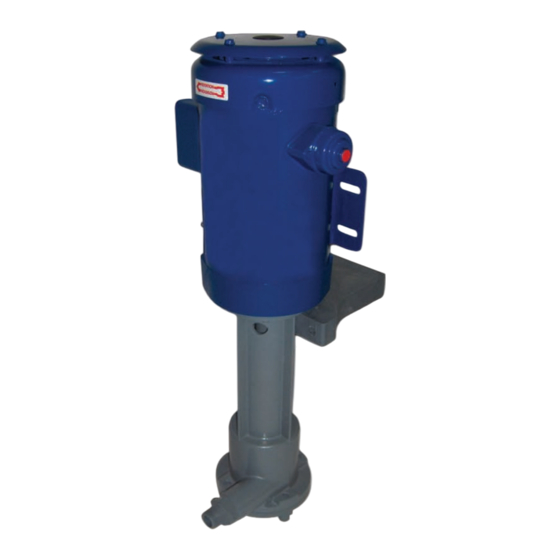

- Page 5 OPERATING INSTRUCTIONS FOR SETHCO ZDX VERTICAL PUMPS GENERAL DESCRIPTION Sethco close coupled vertical pumps are centrifugal type pumping units designed for installation inside or outside of an open tank. All pump parts in contact with the fluid are CPVC. PRE-INSTALLATION All Sethco pumps are tested at the factory for proper operation.
- Page 6 OPERATING INSTRUCTIONS FOR SETHCO ZDX VERTICAL PUMPS ELECTRICAL CONNECTIONS All electrical work to the unit should be performed by a qualified technician. All local, state and federal electrical codes should be followed. ROTATION All pumps operate in a clockwise direction when facing the motor fan guard/drip shield assembly. Connect electric motor to power supply and jog motor to check rotation.
- Page 7 OPERATING INSTRUCTIONS FOR SETHCO ZDX VERTICAL PUMPS TROUBLESHOOTING Refer to the following diagnostic section if hydraulic problems are encountered in the pump operation. NO DISCHARGE • Pump not primed • Speed too low • System head too high • Suction lift higher than that for which pump is designed •...
- Page 8 ZDX 1/3ES OPERATIONAL START-UP CHECKLIST Pump mount is level and plumb. Mounting bolts are tight. Motor mounting bolts tight. Suction and discharge connections secure. Electrical connections secure and covered. Turn motor fan by hand, ensure that it does not bind. Jog motor/ heck rotation.
- Page 11 ZDX 1/3ES CURVES (3500 RPM) 3500 RPM 3500 RPM...
- Page 13 NOTES...
- Page 14 700 Emlen Way • Telford, PA 18969 Phone: 215.723.8155 Email: infofhs@onececo.com www.cecoenviro.com ©COPYRIGHT 2009 CECO ENVIRONMENTAL, SETHCO DIVISION REGISTERED TR DEM RK OF CECO ENVIRONMENTAL SETH O ® OM-354-02-CPVC309...
