Clas Ohlson TG201 Manual

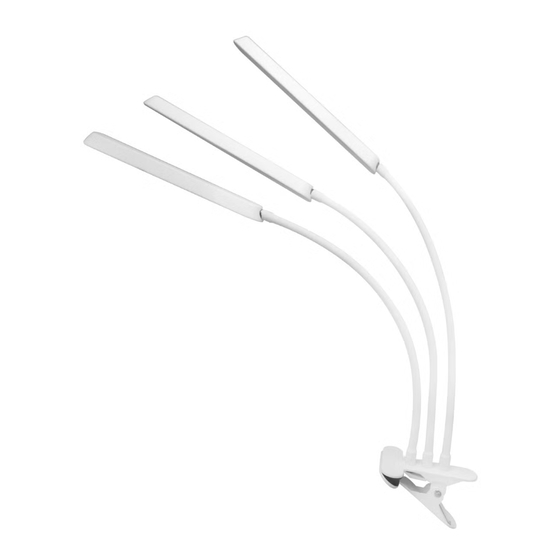

LED grow light with clamp
Art. no. 31-6665 Model TG201
Please read the entire instruction manual before using the product
and then keep it for future reference. We accept no liability for
any errors in the text or images and we reserve the right to make
any necessary changes to technical data. If you have technical
problems or other questions, please contact our customer
service team.
Safety
Warning:
For indoor use only.
Class II product. Double-insulated.
This product is not intended for use as a
general light source.
• Do not expose the product to high temperatures near stoves
or fireplaces etc.
• Never immerse the product in water or other liquid.
• Never let water or other liquid come into contact with
the light source.
• Never try to open, repair, dismantle or modify the product
in any way.
• The mains lead must never be replaced. The product must
be discarded if it is damaged in any way.
• The light source may only be replaced by authorised
service technicians.
Cleaning and care
• Always unplug the product from the wall socket before
cleaning it.
• Clean the product by wiping it with a damp cloth.
Use only mild cleaning agents. Never use solvents or
corrosive chemicals.
Buttons and functions
A) LED indicator for
timer setting
B) [ ] Timer
C) [ ] Light intensity
D) [ ] ON/OFF
Using the product
1. Press [ ] to switch the light on.
2. Set the timer using [ ].
- Press [ ] once to set the timer for 8 hours on/
16 hours off. The LED indicator will show 8H.
- Press [ ] a second time to set the timer for 12 hours on/
12 hours off. The LED indicator will show 12H.
- Press [ ] a third time to set the timer for 16 hours on/
8 hours off. The LED indicator will show 16H.
- Press the button a fourth time to switch off the timer and
have the light on constantly.
3. Set the required light intensity by pressing [
Toggle between 5 different intensities: 100%, 80%, 60%,
40%, 20%.
4. Press [ ] to switch the light off. Note: As long as the light
is connected to an electricity supply, the last setting will be
remembered. The memory will be erased when the light is
unplugged.
Responsible disposal
This symbol indicates that the product should not
be disposed of with general household waste.
This applies throughout the entire EU. In order to
prevent any harm to the environment or health
hazards caused by incorrect waste disposal, the
product must be handed in for recycling so that the
materials can be disposed of in a responsible way.
To recycle the product, take it to your local recycling facility or
contact the retailer. They will ensure that the product is disposed
of in a way that does not harm the environment.
Specifications
Rated voltage
8H
A
12H
Mains lead
16H
Light source
Photosynthetic photon flux
B
PPF
PPFD @20 cm
C
Wavelength
Blue
D
Red
Power
IP rating
Operating temperature -20−40°C
Dimensions
113.5 mm
] repeatedly.
76 mm
English
220–240 V AC, 50–60 Hz
2 m
LED
29 μmol/s
188 μmol/m²/s
460 nm
630 nm
24 W
IP20
18 mm
716.5 mm
30 mm
265 mm
