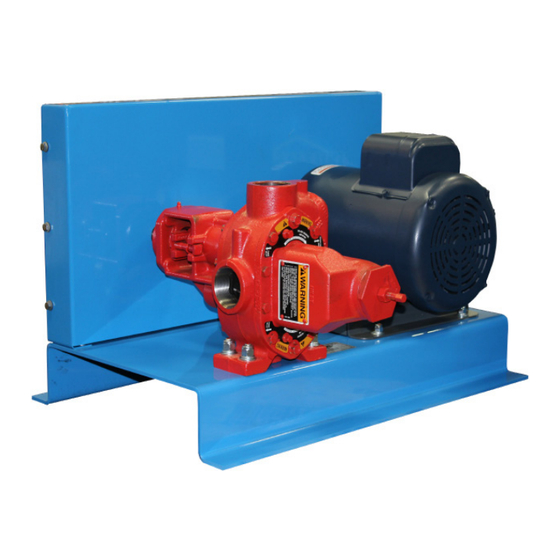

- Page 1 Wash Prep Units featuring CAT Pumps® DU PM290-21 Owner’s Manual #0828 011613 Serial Number: Installation Date:...
- Page 2 Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. Some of the pictures in this manual may differ slightly from the actual product as well. Dultmeier Sales reserves the right to update designs and / or change the specifications at any time without incurring any obligation to install them on units previously sold.
-
Page 3: Burn Hazard
To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage. -
Page 4: System Features
Wash Prep Units Specifications DU PM290-21 Model(s) ............Style..............High Pressure Piston Pump Capacity............4.83 GPM ..............2300 Maximum Inlet Pressure ........40 PSI Maximum Inlet Temperature ......160° F Motor ............... CEL3516T 2 HP, 1 PH Volts: Amps: Common Specifications Pump ............... - Page 5 Parts Breakdown: PM 290-21 Item Part Number Description 1.... CE L3516T ....2 HP/ 1 PH Baldor Motor 2.... GA AX35 ....38* A-Belt 3.... CC 290 ....... Cat Piston Pump 4.... CE L3609T ....3 HP / 1 PH Motor 5....
-
Page 6: Customer Checklist
Production Checklist Accessories Oil Level Clamps Tight Safety Pop Off Valve Bolts Tight & Anti-Seized Trigger Gun Belts Tight High Pressure Hose Pulleys Aligned & Torqued to Specifications Injector / Injector Hose Fittings Straight Gauge Pop-Off Valve Set __________ PSI ________________________________________ Unloader Valve Locked ________________________________________... - Page 7 Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available.
- Page 8 NOTES...
