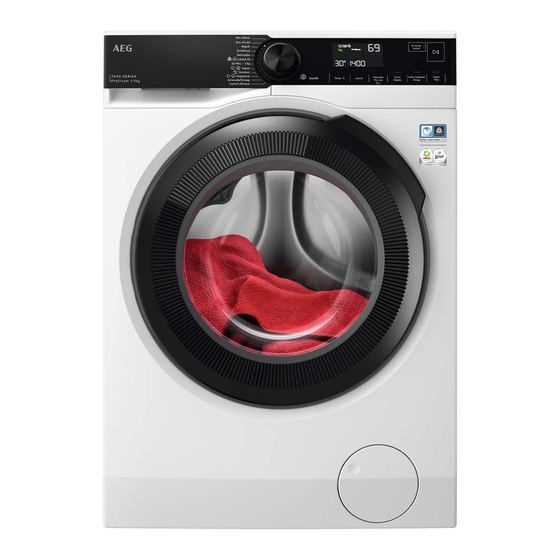

  • Page 1 EN User Manual | Washing Machine LFR7304L4B aeg.com\register...

  • Page 2: Table Of Contents

    Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. PRODUCT DESCRIPTION................6 4. TECHNICAL DATA..................7 5.

  • Page 3: General Safety

    the use of the appliance in a safe way and understand the hazards involved. • Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised. •...

  • Page 4: Safety Instructions

    • The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering. • The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.

  • Page 5: Water Connection

    2.4 Use • Always use a correctly installed shockproof socket. • Make sure that the parameters on the WARNING! rating plate are compatible with the Risk of injury, electric shock, fire, burns electrical ratings of the mains power or damage to the appliance. supply.

  • Page 6: Product Description

    • The ProSense technology detects the • The AEG Steam Fragrance, thanks to the laundry load size defining the programme steam programmes offers the perfect duration in 30 seconds. The washing...

  • Page 7: Appliance Overview

    3.2 Appliance overview 11 12 Worktop Drain hose Detergent dispenser Inlet hose connection Control panel Mains cable Door handle Transit bolts Rating plate Hose support Drain pump filter Feet for levelling the appliance The rating plate reports: model name product number Mod.

  • Page 8: Installation

    Water supply pressure Minimum 0.5 bar (0.05 MPa) Maximum 10 bar (1.0 MPa) Cold water Water supply Maximum Load Cotton 11.0 kg Spin Speed Maximum spin speed 1400 rpm Connect the water inlet hose to a water tap with a 3/4'' thread. 5.

  • Page 9: Positioning And Levelling

    7. Remove the polystyrene protection from 10. Remove the three bolts by using the the bottom. spanner supplied with the appliance. 8. Pull up the appliance in vertical position. 11. Pull out the plastic spacers. 12. Put the plastic caps, that you find in the user manual bag, in the holes.

  • Page 10: The Inlet Hose

    2. Loosen or tighten the feet to adjust the level. If you install the appliance on a plinth that is not an accessory supplied by AEG, secure WARNING! the appliance with the fixing plates. This Do not put cardboard, wood or equivalent...

  • Page 11: Water Drainage

    If this occurs, close the water tap and contact WARNING! the authorized service centre to replace the hose. The inlet water shall not exceed 25 °C. 5.6 Water drainage CAUTION! The drain hose should be positioned at a Make sure that there are no leaks from height of not less than 60 cm and not more the couplings.

  • Page 12: Electrical Connection

    It is possible to connect the drain hose in different ways: min.600 mm max.1000 mm • Connect the drain hose to the spigot and tighten it with a clamp. • Position the hose directly to a built-in drain The end of the drain hose must always pipe in the room wall and tighten it with a be ventilated , i.e.

  • Page 13: Control Panel

    Connect the appliance to an earthed The power supply cable must be easily socket. accessible after installing the appliance. For any electrical work required to install this appliance, contact our Authorised Service Centre. The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.
  • Page 14 6.2 Display Door locked indicator. Washing phase indicator. It flashes during pre-wash and wash phase. Rinsing phase indicator. It flashes during rinse phase. Spinning and draining phase indicator. It flashes during spin and drain phase. Steam phase indicator. Anti-crease phase indicator. Eco programme indicator: it lights on when the selected programme and options have an eco profile.

  • Page 15: Dial And Buttons

    The digital indicator can show: • Programme duration (e. g. The time shown when the programme is set could not correspond to effective duration and change after ProSense phase. • Maximum load. • Finish in time (e. g. • Cycle end ( ). •...

  • Page 16: Plus Steam

    7.3 Introduction 7.6 Plus Steam This option adds a steam phase followed by a short anti-crease phase at the end of the washing programme. The options/functions are not selectable with all washing programmes. Check the The steam phase reduces fabric creasing and compatibility between options/functions facilitates the fabric ironing.
  • Page 17 It is suggested when you use the fabric This option is recommended for heavily softener. soiled laundry, especially if containing sand, dust , mud and other solid particles. Useful for people allergic to detergents and in areas where the water is soft. This option increases the programme The options can increase the programme duration.

  • Page 18: Settings

    7.11 Temperature • No Spin Set this option to deactivate all spin When you select a washing programme, the phases. The display shows the indicator appliance automatically proposes a default temperature. . The appliance performs the only draining phase of the selected washing Touch this button repeatedly until the desired programme.

  • Page 19: Factory Defaults

    8.5 Factory Defaults e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and This function allows to restore the factory hundreds) for 2 seconds and 76 (tens and default options. To activate this option follow units).
  • Page 20 Programme Programme description Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results. Eco 40-60 White and coloured cotton fabrics. Ideal for normal and heavy soil. Cottons Synthetic items or mixed fabric items. Normal soil. Synthetics Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing.
  • Page 21 Programme Programme description White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of bacteria and viruses keeping Hygiene the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase en‐ sures a proper removal of detergent and micro-organism residues.
  • Page 22 Fragrance) The cycle duration can be reduced till 15 minutes by means of the Time Save option. The AEG Steam Fragrance allows you to DO NOT set this mode with the following type refresh even your delicate clothes, removing of items: wrinkles and adding freshness with a gentle •...
  • Page 23 Read carefully the instructions supplied with the fragrance. DO NOT: • Tumble dry the garments treated with The fragrance is available on AEG web fragrance. Its benefit would evaporate. shop or by authorised dealer. • Use the fragrance with different purposes than those here described.

  • Page 24: Daily Use

    ■ ■ Prewash ■ ■ ■ ■ Time Save Extra Rinse ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Plus Steam Finish In ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ If you set the No Spin option, the appliance performs draining only. This option is not available with temperature lower than 40 °C.

  • Page 25: Loading The Laundry

    11.3 Filling the detergent and 2. Open the water tap. additives 3. Press the On/Off button for a few seconds to activate the appliance. A short tune sounds. The appliance automatically proposes a default programme. The relevant indicator illuminates. The display shows the cycle duration, the maximum load (for a few seconds), the default temperature, the default spin speed and the indicators of the phases making up...

  • Page 26: Setting A Programme

    2. Press the lever down to remove the 5. Measure out the detergent and the fabric dispenser. conditioner. 6. Carefully close the detergent dispenser. 3. To use powder detergent, turn the flap Make sure that the flap does not cause a blockage when you close the drawer.

  • Page 27: Starting A Programme With The Finish In Option

    The programme starts, the door is locked. accordingly the load detected, the number of bars indicates the load in The display shows the indicator quarter (from 1 to 4, 4 bars in case of overload), the maximum declared load indicator comes on again. After further 30 The drain pump can operate shortly seconds, the water filling starts.

  • Page 28: Interrupting A Programme And Changing The Options

    11.12 Opening the door - Adding E.g. the washing or pre wash phase is garments running: While a programme or the delay start operates, the appliance door is locked. When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

  • Page 29: Draining Water Out After End Of Cycle

    2. Remove the laundry from the appliance. 4. Press the On/Off button a few seconds to 3. Make sure that the drum is empty. deactivate the appliance. 4. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

  • Page 30: Stubborn Stains

    • Wash stubborn stains with a special Special stain removers are available. Use the detergent. special stain remover that is applicable to the • Be careful with curtains. Remove the type of stain and fabric. hooks and put the curtains in a washing Do not spray stain remover on garments near bag or pillowcase.

  • Page 31: Water Hardness

    • When using detergent tabs or pods, • With adequate pre-treatment, stains and always put them inside the drum, not in limited soiling can be removed; the the detergent dispenser and follow the laundry can then be washed at a lower manufacturer's recommendations .

  • Page 32: Removing Foreign Objects

    13.2 Removing foreign objects 13.5 Maintenance wash The repeated and prolonged use of low temperature and short programmes can cause detergent deposits, fluff residues, Make sure that pockets are empty and all bacterial growth and biofilm formation inside loose elements are tied up before the drum and the tub.

  • Page 33: Cleaning The Detergent Dispenser

    Clean the drum with special products for stainless steel. Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool. For a thorough clean: 1.

  • Page 34: Cleaning The Drain Pump

    2. Place a suitable bowl below the drain 13.9 Cleaning the drain pump pump access to collect the water that flows out. 3. Open the chute downwards. Always keep WARNING! a rag nearby to dry up any water spillages Disconnect the mains plug from the when removing the filter.

  • Page 35: Cleaning The Inlet Hose And The Valve Filter

    7. Turn the filter anti-clockwise to remove it. 12. Close the pump cover. 8. If it is necessary, remove fluff and objects from the filter recess. 9. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

  • Page 36: Emergency Drain

    45° 20° 2. Remove the inlet hose from the appliance 13.11 Emergency drain by loosening the ring nut. If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump. When you drain the water with the emergency drain procedure, you must activate the drain system again:...

  • Page 37: Troubleshooting

    14. TROUBLESHOOTING WARNING! Refer to Safety chapters. 14.1 Alarm Codes and Possible failures The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables). WARNING! Deactivate the appliance before carrying out any check. With some problems, the display shows an alarm code and the Start/ Pause button may flash continuously:...
  • Page 38 • Make sure that the sink spigot is not clogged. • Make sure that the drain hose has no kinks or bends. The appliance does not • Make sure that the drain filter is not clogged. Clean the filter, if necessary. Re‐ drain the water.

  • Page 39: Emergency Door Opening

    Problem Possible solution • Make sure that a washing programme that ends with water in tub, has not been selected. • Make sure that the washing programme is finished. • Set the drain or the spin programme if there is water in the drum. You cannot open the appli‐...

  • Page 40: Consumption Values

    Make sure that the water level inside the drum is not too high. If necessary, proceed with an emergency drain (refer to «Emergency drain» in «Care and cleaning» chapter). To open the door, proceed as follows: 1. Press the On/Off button to switch the appliance off.
  • Page 41 Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme. 15.3 According to Commission Regulation Eu 2019/2023 Eco 40-60 pro‐...

  • Page 42: Quick Guide

    Programme rpm 1) Litres hh:mm °C Wool 0.300 70.0 01:15 30.00 30.0 1200 30°C Maximum spin speed. Suitable for washing heavily soiled textiles. Suitable for washing lightly soiled cottons, synthetic and mixed fabrics. It also performs as quick washing cycle for lightly soiled laundry. 16.

  • Page 43: Cleaning The Drain Pump Filter

    16.2 Cleaning the drain pump filter 180˚ Clean the filter regularly and, especially, if the alarm code appears on the display. 16.3 Programmes Programmes Load Product description Cotton and synthetic items. This programme ensures a good washing performance in a short time. The standard program duration has been developed on a laun‐...

  • Page 44: Environmental Concerns

    Programmes Load Product description All fabrics, except woollens and very delicate fabrics. Pro‐ 11.0 kg gramme for rinsing and spinning. Rinse To spin the laundry and to drain the water in the drum. All fab‐ 11.0 kg rics, except woollens and delicate fabrics. Spin/Drain Washing programme.
