Long Range Remote Start Security System
With Plug-In Shock Sensor
IMPORTANT ! In order to provide you with the highest level of security to your
vehicle, this system is equipped with selectable manual override circuitry. It is
possible that you will need to override you security system if the transmitter
becomes lost, or inoperative due to battery failure. Reading the sections on
"Manually Overriding Your System" is necessary to fully understand the procedure
required to enable your vehicle in such situations. In addition, the chart on the last
page of this manual has a section for the particular features and options installed
in your vehicle as well as the override method selected. Although the default
mode is "Valet Switch" operation, the system can be configured for "Custom
Code" operation for enhanced security. Confirm the override mode selected on
the last page of this manual, and familiarize yourself with the section on it's opera-
tion.
FEATURES :

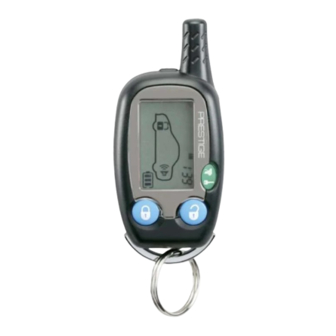

1 Two Way 6 Button LCD Remote Control & 1 One Way 5 Button Remote
Control
Seven Channel Code Learning Programmable Receiver
External Superheterodyne Transceiver Antenna
Single Or Two User Programmable W/Separate Control Outputs
Single Button Lock/Unlock or Separate Button Lock/Unlock or Both
Remote Keyless Entry With Optional Access Guard (must have power door
locks)
Selectable Manual Override Mode
New Enhanced Panic Feature (Any button other than unlock stops siren, no
change to the units state)
Smart Disarm (If triggered, elect to shut off siren, or disarm entire unit )
Adjustable Shock Sensor Via The Transmitter (Pre-Detect Off, Pre & Full Detect
Off, City Mode)
Safe Start Output Controlled From Channel 3 (Option Channel 3 For Trunk, Or
For R/S)
24 Hour Time Start Mode
Cold Temperature Start Mode
2 or 4 Hour Automatic Start Mode
Parking Meter Count Down Timer On LCD Remote
Additional Count Down Timer Mode
Remote Panic In All Modes (Press & Hold Lock /Unlock Button For 3 Seconds
To Engage)
Improved Custom Code Override, User Selectable and Programmable
Protected PBLED, (Push Button LED Valet/Program/Manual Override Switch )
7-Function LED-Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
Model PRO9801XR
& Starter Disable
Page 1
Owner's Manual
128-7867
1 of 20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prestige Pursuit Series
Summary of Contents for Prestige Pursuit Series
- Page 1 Model PRO9801XR Owner’s Manual Long Range Remote Start Security System With Plug-In Shock Sensor & Starter Disable IMPORTANT ! In order to provide you with the highest level of security to your vehicle, this system is equipped with selectable manual override circuitry. It is possible that you will need to override you security system if the transmitter becomes lost, or inoperative due to battery failure.
-
Page 2: Your "Code Hopping" Transmitters
Intrusion Alert With Memory Instant Siren Activation Starter Disable Output Additional Engine Immobilizer Output, (Optional Relay Required) True Last Door Arming (Hardwire Only) Defective Zone By-Pass Defective Zone Chirp Confirmation (Unit Chirps To Report Zone Cleared) 6 Tone Mini Siren Car Horn Output For Additional Alarm Response (Improved Timing To Minimize RF Interference.) Additional Negative Trigger Input (Hood and Trunk) -
Page 3: Arming The System - Active
button is pressed, so when a thief grabs then re-transmits your signal, the alarm system will not respond. If your transmitter button is pressed more than fifty times while it is out of range of the vehicle (children playing with your keys), the transmitter will not operate when you return to the vehicle, and will need to be re-aligned to the receiver. -
Page 4: Arming The System - Passive (Automatic)
Parking Lights flash one time. Siren will not sound. If the siren "chirped" three times, sometime after arming, the exclusive delayed dome light learn circuit has been programmed and the system detected a open entry point after the learned delay expired. Closing the hood, trunk, or doors will correct the problem and you do not need to disarm the system to make the correction. -
Page 5: Disarming The System
Any mild impact to the vehicle’s glass will cause the alarm to sound a short series of warning tones. Any strong impact to the vehicle’s glass will cause the alarm to trigger for the full 30 second alarm cycle. NOTE: If the optional interior illumination circuit was installed, the interior light will flash as well for the full 30 second alarm cycle. -
Page 6: While The System Is Sounding
Parking Lights flash two times. If the parking lights flashed three times, then the alarm was triggered in your absence. Before turning the key on, examine the LED to identify which zone was triggered. Siren will not sound. If the siren sounds 4 chirps, then the alarm was triggered in your absence. Before turning the key on, examine the LED and refer to the INTRUSION WARNING SIGNALS section of this manual to identify which zone was triggered. - Page 7 NOTE: Always remember to return the vehicle to the valet off position. This will ensure that the vehicle remains protected at all times. MANUALLY OVERRIDING YOUR SYSTEM: USING THE PBLED OVERRIDE SWITCH Your Security System can be disarmed without the use of the keychain transmitter. This is necessary, since you will need the ability to operate your vehicle if the transmitter is lost or its battery fails.
-
Page 8: Eliminating The Normal Arm/Disarm Chirps
4. Within 10 seconds turn the ignition switch off, on, off, on, off, on. (The siren or horn will beep and the lights will flash one time.) 5. Within 10 seconds, begin to press and release the PBLED switch to set the tenths digit. -
Page 9: Remote Panic Operation
NOTE: Your system must be programmed by the installation center to en- able this feature. REMOTE PANIC OPERATION The Lock or Unlock button on your keychain transmitter also functions as a panic switch for use in emergency situations. To use remote panic, 1. -
Page 10: Remote Starting The Vehicle
2. Within 2 seconds of step 1, press and release the ARM button 2 times, to defeat the pre and full detect stages of the shock sensor. (The lights will flash and the siren will chirp twice.) 3. Within 2 seconds of step 1, press and release the ARM button 3 times to enter the "City Mode"... -
Page 11: Operating On Automatic Start Up Timer Mode
motor to engage with the already running engine which could result in damage. Step on the brake pedal to disengage the remote start unit. The vehicle will continue to run but now on it's own power. NOTE: The engine will stop running before the expiration of the pre-programmed run timer if you complete any of the following: 1. - Page 12 ADDITIONAL REMOTE FUNCTION (CHANNEL 3) This system has an additional feature that can be connected to a number of different optional accessories. Some of the more common uses for this channel are: Remote Trunk Release Remote Window Closure Remote Garage Door Interface To activate the optional accessory, press and hold the trunk/key button on the keychain transmitter for four seconds.
-
Page 13: Turbo Timer Mode
TURBO TIMER MODE This system provides a means to cool down the vehicles turbo charger, if so equipped, by allowing the vehicle to continue to run for a prescribed period of time every time the vehicle's engine is turned off. This feature requires the system to be set up for turbo timer during installation. - Page 14 When the Key Icon Button is pressed 2 times in succession The three puffs of smoke are displayed on the LCD screen while the vehicle is running. The exhaust indication will flash and the hour glass will indicate count down timer based on the 5, 10, 15, or 20 minute run time set up by your installation cen- ter.
- Page 15 ADDITIONAL ICONS THAT MAY BE DISPLAYED ARE: If the arm/disarm chirp tones have been turned off at the vehicle, when you arm, or disarm, the display will indicate this as shown and there will be no arm/disarm chirps at the transmitter. This is true if the transmitter is set for vibrate mode.
- Page 16 ADDITIONAL REMOTE FEATURES: The two way remote control unit allows you to access status information from the vehicle, check temperature, light the display, toggle the transmitter from beep tones to vibrate mode, initiate daily start timer, and temperature start. Selection of these and other features are shown below: NOTE: Transmitter must be within operating range of the vehicle, approximately 1000 ft.
- Page 17 activated at the vehicle, you can toggle the feature on simultaneously pressing the Lock + Option buttons of the transmitter. The 24 hour icon will appear and the transmitter will emit a tone confirming the feature is active. Note: the unit will start once and run for the prescribed time. If you require more frequent starting please refer to auto start up timer mode shown earlier in this guide.
- Page 18 Battery Indicator: Your transmitter has a battery indicator that is shown in the upper right corner of the screen as shown left. This icon indicates a new battery shown with 3 bars. As the battery deteriorates, the bars will disap- pear.
- Page 19 Page 19 128-7867 19 of 20...
- Page 20 PRO9801XR SYSTEM FUNCTIONS AT A GLANCE DASH LED INDICATORS RAPID FLASHING PASSIVE ARMING/ACTIVE REARMING SLOW FLASHING ARMED DISARMED ON SOLID VALET MODE 3 FLASH...PAUSE INTRUSION ZONE 3 2 FLASH...PAUSE INTRUSION ZONE 2 1 FLASH...PAUSE INTRUSION ZONE 1 SIREN CHIRP INDICATORS 1 CHIRP * 2 CHIRPS * DISARM...
