- Page 1 Install Guide AD64 Door Reader with Keypad...
-
Page 2: Product Models
Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. - Page 3 Ratings IP65, IK08 Operating -40° to 65°C (–40° to 149°F) Temperature 5-90% RH non-condensing Controller Requires an RS-485 connection to a Verkada access Compatibility controller Power 12V, 250mA max Consumption Included Mount Plate, T10 screwdriver, 2 wall mount screws, 2 M3...
-
Page 4: Introduction What's In The Box
What you’ll need Placement A working internet connection Mount product on wall with RS485 cable ● A smartphone or laptop routed and plugged into Verkada Access ● A #2 Phillips driver (screwdriver or Controller. ● power drill) 1/8 inch (3mm) drill bit for pilot holes Connect ●... -
Page 5: Keypad Functions

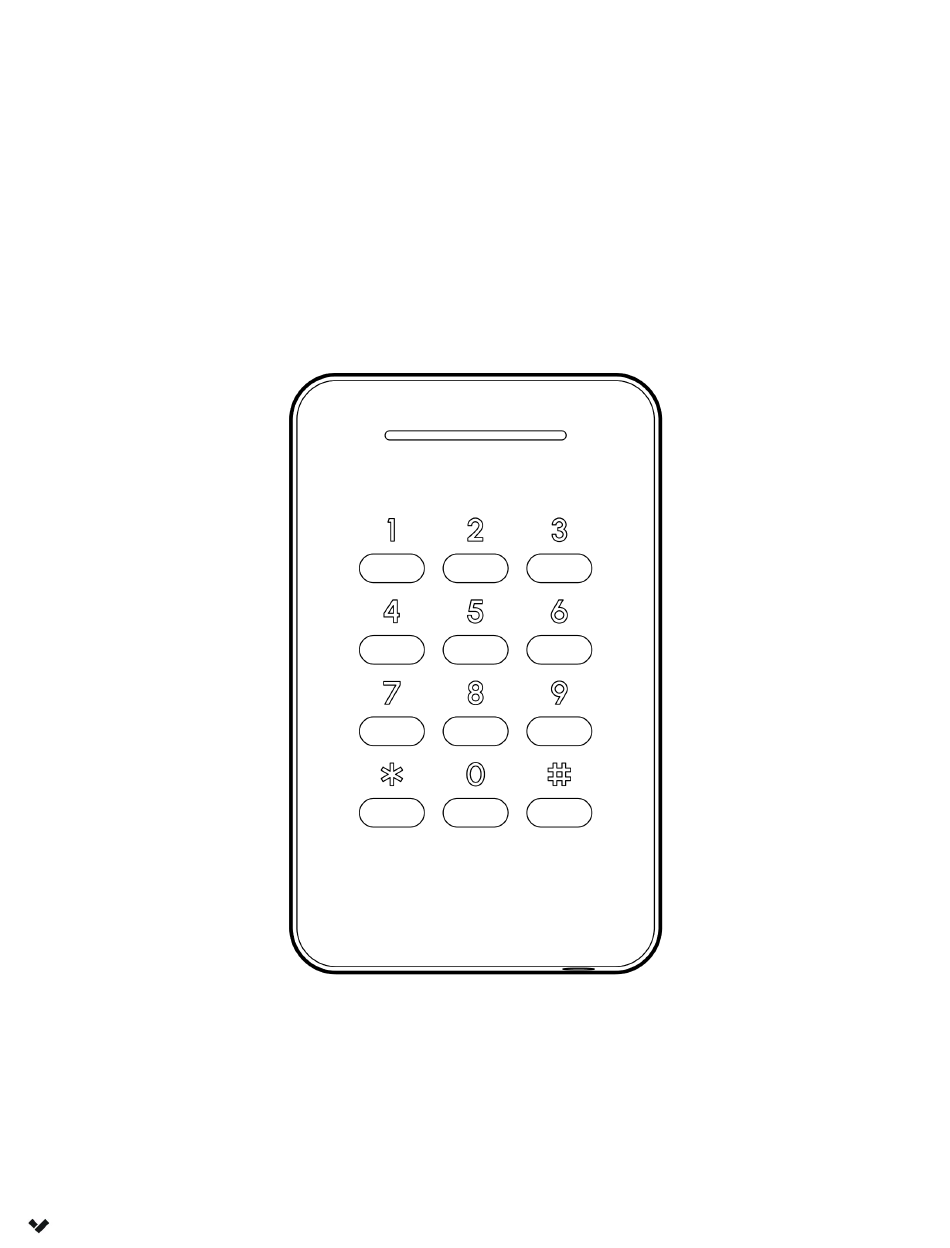

Introduction Overview Feedback LED Glow-through Numerical Keypad #-Key ✱-Key Reset pin input Submit pin input Security Screw Keypad Functions Pin Input Input the pin, using the numerical keypad. The ‘#’ key is used to submit after a pin input. Timeout & Reset If the keypad is left mid-input, the keypad will flash and beep twice when it resets. - Page 6 Introduction LED Behaviors Keypad LEDs Cascading Static Booting up. Powered and connected to the ACU Flash 2x Pin reset from inactivity or correction. Pulsing For instances of Two Factor and Quorum. This signifies that the reader is ready to scan the second credential (badge or pin input).
- Page 7 If excess cables, trim to reduce slack. Avoid pinching the cable Trim cable of excess Shield Wiring and Grounding Red: +12V Black: GND White: A Green: B Drain Wire AD64 Cable Installed Cable...
- Page 8 Installation Best Practices Critical Wiring Requirements You must use shielded wiring with the AD64: ● Connect the drain wire (bare metal) from the reader cable bundle to the drain wire in the shielded cabling. Then, connect the drain wire at the other end of the shielded cabling to Earth ground.
- Page 9 Installation Preparation Pull keypad reader and pulp tray out of packaging. Mounting hardware can be found under IN card. Use pull tab to remove mount from keypad reader in preparation for mounting.
- Page 10 Installation Mounting (1/4) Using the mount plate as your template, mark and drill two ⅛ inch (3mm) pilot holes at the top and bottom. Drill a 1/2 inch (12.7mm) center hole for cable routing. Secure the mount plate to a single gang junction box using the 2 provided M3 machine screws.
- Page 11 Route the installed cable through center opening on mount plate. Connect the wires using the diagram below or the table on the back of the AD64 Keypad Door Reader as reference. Wiring (RS-485 & Drain Wire) Red: +12V Black: GND...
- Page 12 Installation Mounting (3/4) Tow in the AD64 keypad reader into mount plate, and rotate device down. Once in position, press the AD64 keypad reader into the mount until an audible snap is heard.
- Page 13 Installation Mounting (4/4) Secure the security screw on the bottom of the reader using the provided T10 Security Torx hand tool. The screw is positioned at an angle for ease of install against a mullion frame or wall.
- Page 14 Appendix AD64 Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Statement (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 15 AD64 Compliance Caution Only use with Verkada Access Controllers certified under UL62368-1 (compliant with LPS) and UL294 À utiliser uniquement avec les contrôleurs d'accès Verkada certifiés sous UL 62368-1 (conforme à LPS) et UL294. UL 294 Attack Level/Grade: Level 1...
- Page 16 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
