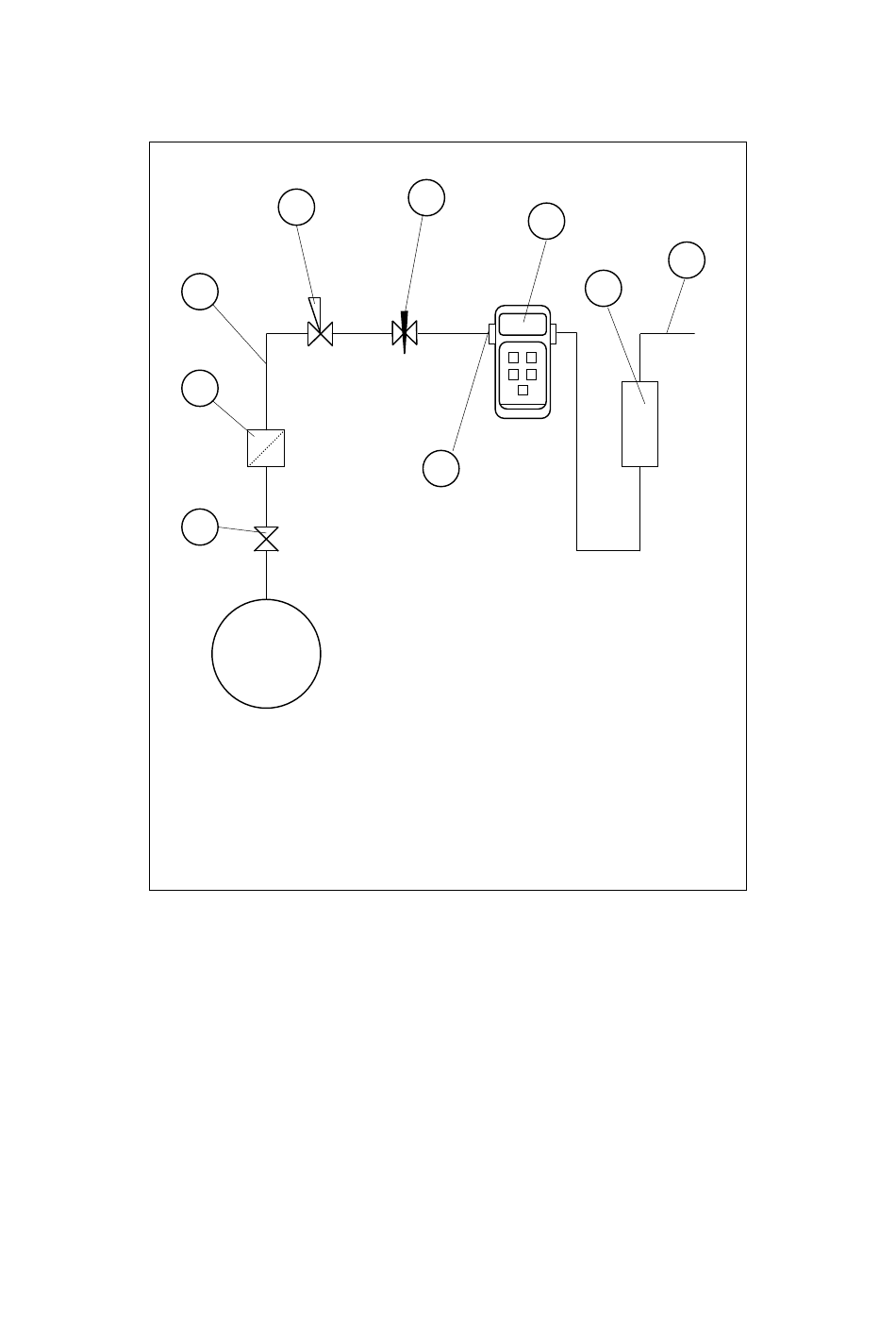

4.1 Piping installation Schematic

2
3
1
Notes
a.
b.

4.2 Piping Schematic Component Index

1. Sample Isolation Valve - This is a recommended item as it allows access to the
sample system without interrupting the main process line.
2. Sample Tube – This should be stainless steel for dry air or gas applications but copper
or carbon steel can be used where wetter gases are to be measured. If any section of
the sample tube must be flexible then PTFE should be used. In most cases, 3mm OD
(1/8") is sufficient as it provides good system response time with minimum flow.
6mm OD (1/4") tube can be used where pressure drops across the 3mm tube are too
high
3. Filter Unit – A filter unit is recommended when the samples are likely to contain
particulate matter. If the air/gas sample contains heavy hydrocarbon condensate, the
4
Main
Process
Line
The sample point should be on the upper surface of the horizontal pipe, or from a
vertical section of pipe, wherever possible.
The sample tube should run upwards from the sample point. If this is not possible,
then an inspection port or drain tap should be installed at the lowest point in the
sample system.
Page 4 of 33
5
7
6
9
8
