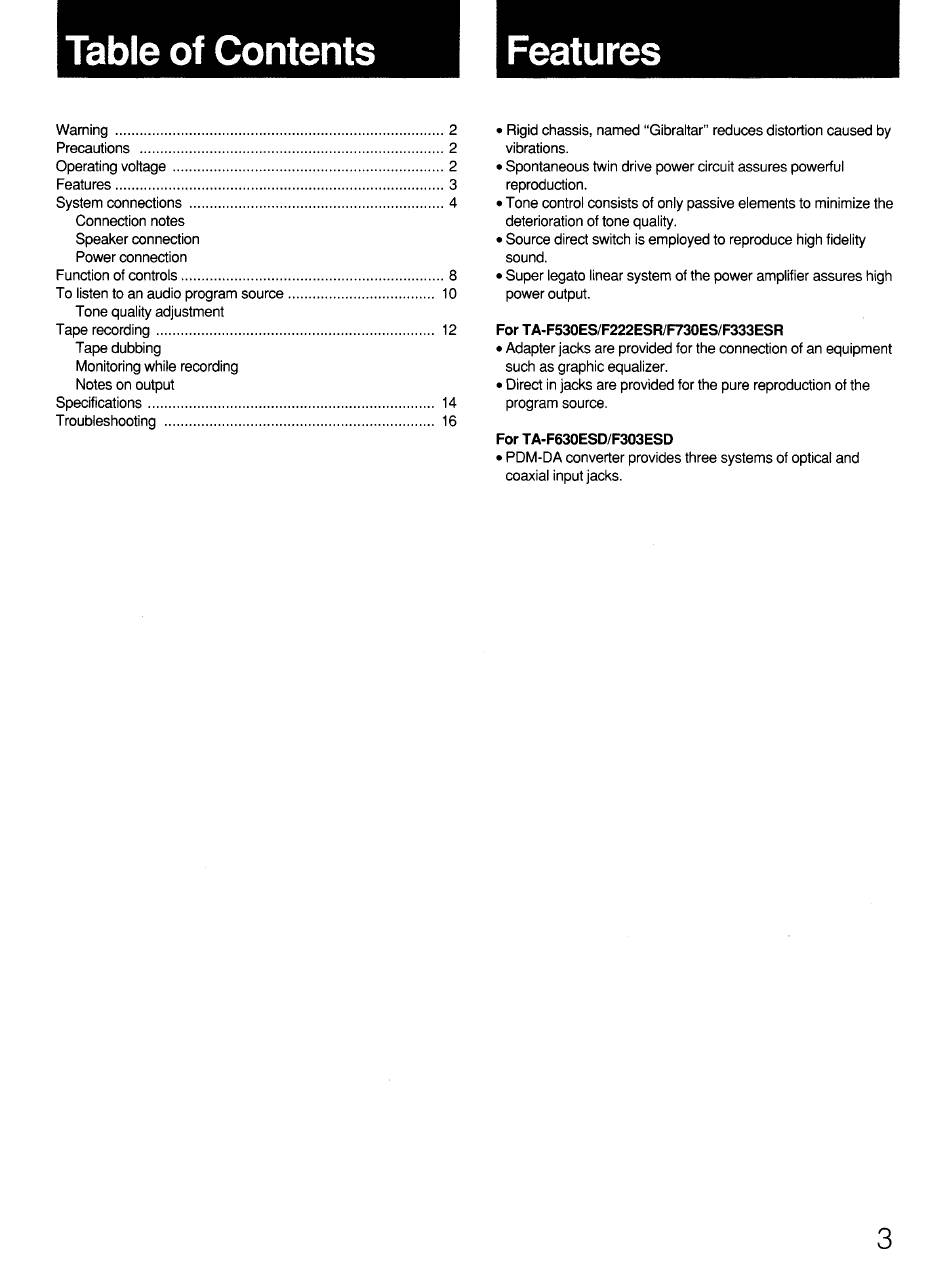

Table Of Contents; Features - Sony TA-F530ES Operating Instructions Manual

Table of Contents
Warning ................................................................................ 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operating voltage .................................................................. 2
Features ................................................................................ 3
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connection notes
Speaker connection
Power connection
Function of controls ................................................................ 8
To listen to an audio program source .................................... 10
Tone quality adjustment
Tape recording .................................................................... 12
Tape dubbing
Monitoring while recording
Notes on output
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting .................................................................. 16
Features
• Rigid chassis, named "Gibraltar" reduces distortion caused by
vibrations.
• Spontaneous twin drive power circuit assures powerful
reproduction.
• Tone control consists of only passive elements to minimize the
deterioration of tone quality.
• Source direct switch is employed to reproduce high fidelity
sound.
• Super legato linear system of the power amplifier assures high
power output.
For TA-F530ES/F222ESR/F730ES/F333ESR
• Adapter jacks are provided for the connection of an equipment
such as graphic equalizer.
• Direct in jacks are provided for the pure reproduction of the
program source.
For TA-F630ESD/F303ESD
• PDM-DA converter provides three systems of optical and
coaxial input jacks.
