Daktronics NPN-46 0 Series Service Quick Manual

NPN-46X0 Series Panel Installation & Service Quick Guide
Warnings and Disclaimers
• Ensure that all electrical work meets or exceeds all local or national
electrical codes.
• Provide the required power to the display as listed on the product
labels, specifications, or site-specific riser drawings. The conductor size
may vary based on the length of the power run.
• Consider implementing a separate circuit for the display using an
isolation transformer or dedicated transformer.
• Daktronics assumes no liability for any issues caused by line voltage
fluctuations or other improper power conditions.

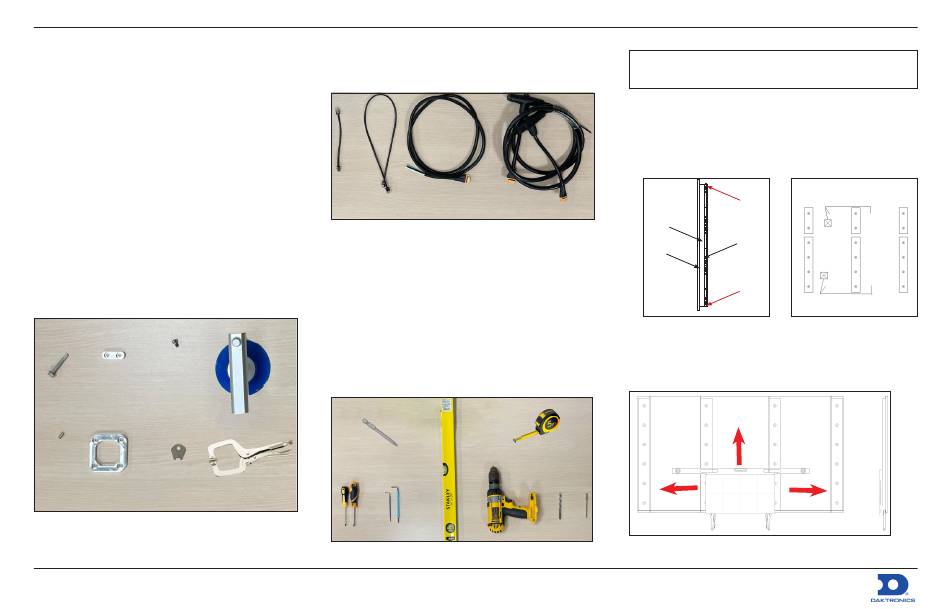

Display Accessories
Daktronics provides the following standard display accessories. Refer to
Figure 1.
• Module Removal Tool
• Flatness Bar – 2 Holes
• Flatness Bar – 4 Holes
• M5x8 Socket Head Screw
• ST6.3x38 Self-Drilling Screw
• M5x12 Set Screw
• Magnetic Adjustment Tool
• C-Clamp
Flatness Bar – M5x8 Socket
2 Holes Head Screw
ST6.3x38 Self-
Drilling Screw
M5x12 Set
Screw
Magnetic
Flatness Bar –
Adjustment
4 Holes
Tool
Figure 1: Daktronics-Provided Accessories
DD5378604
Rev 00
20 December 2023
Daktronics provides the following cables. Refer to Figure 2.
• Signal Jumper Cable
• Power Input 1-In-1
• Power Input 1-In-2
Signal Jumper Cable
Figure 2: Daktronics-Provided Cables
Customer provides the following tools for installation and service. Refer to
Figure 3.
• Phillips Screwdrivers
• M3 Allen Key, and 4mm Allen Key (to remove a M5 bolt).
• 4mm hex ball end driver bit (Greatly speed up the process to install
screws from the front)
• Level
• Cordless Drill
• 6mm Drill Bits
• Tooling Bits - Philips head PH1-3.0
• Tape Measure
4mm Hex Ball End
Driver Bit
Module
Removal Tool
Phillips
Screwdrivers
C-Clamp
M3
Allen Key
Figure 3: Customer-Provided Tools
Power Input
Power Input
1-In-1
1-In-2
Level
Tape
Measure
Cordless
Drill
Drill Bits
4mm
Allen Key
201 Daktronics Drive
Brookings, SD 57006-5128
www.daktronics.com/support
800.325.8766
Mechanical Installation
Note: Steel tubes are not recommended for the substructure, as metal
filings can accumulate on the magnets and cause module flatness
issues.
Power/Signal Input Identification & Routing
1. Identify which panels will require power and/or signal inputs. Refer to
the contract-specific Shop and Riser Drawings for details.
2. Route power/signal inputs around the structure prior to panel
installation. Use the designed gaps between the substructures and at
the top and bottom of the display to run the cables horizontally across
the display. Refer to Figure 4 and Figure 5.
Location to Route
Power/Signal Input
Vertical
Cables
Tube
Display Panel
Plywood
Location to Route
Power/Signal Input
Cables
Figure 4: Power & Signal Routing Figure 5: Power & Signal Routing
(Left View with Panels) (Front View without Panels)
First Panel Installation
Start with the bottom-center panel, which will be the foundation of other
panels. Then, work outward and upward to install the rest of the panels.
Refer to Figure 6.
4
1
2
3
Figure 6: Typical Cabinet Installation Order
