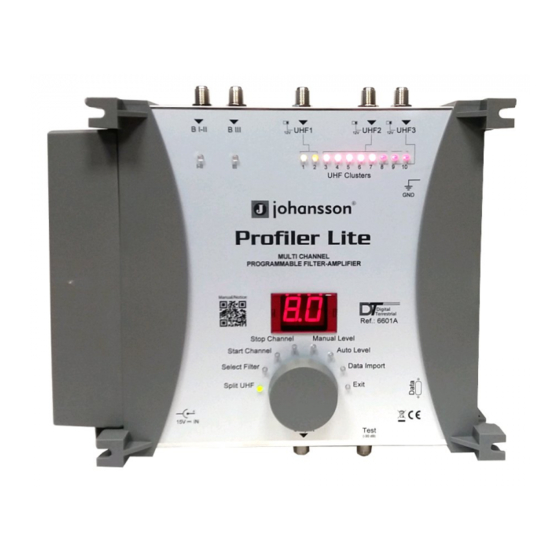

Johansson Profiler Lite 6601 User Manual

Multi channel programmable filter-amplifier
Hide thumbs Also See for Profiler Lite 6601:

Advertisement

Table of Contents

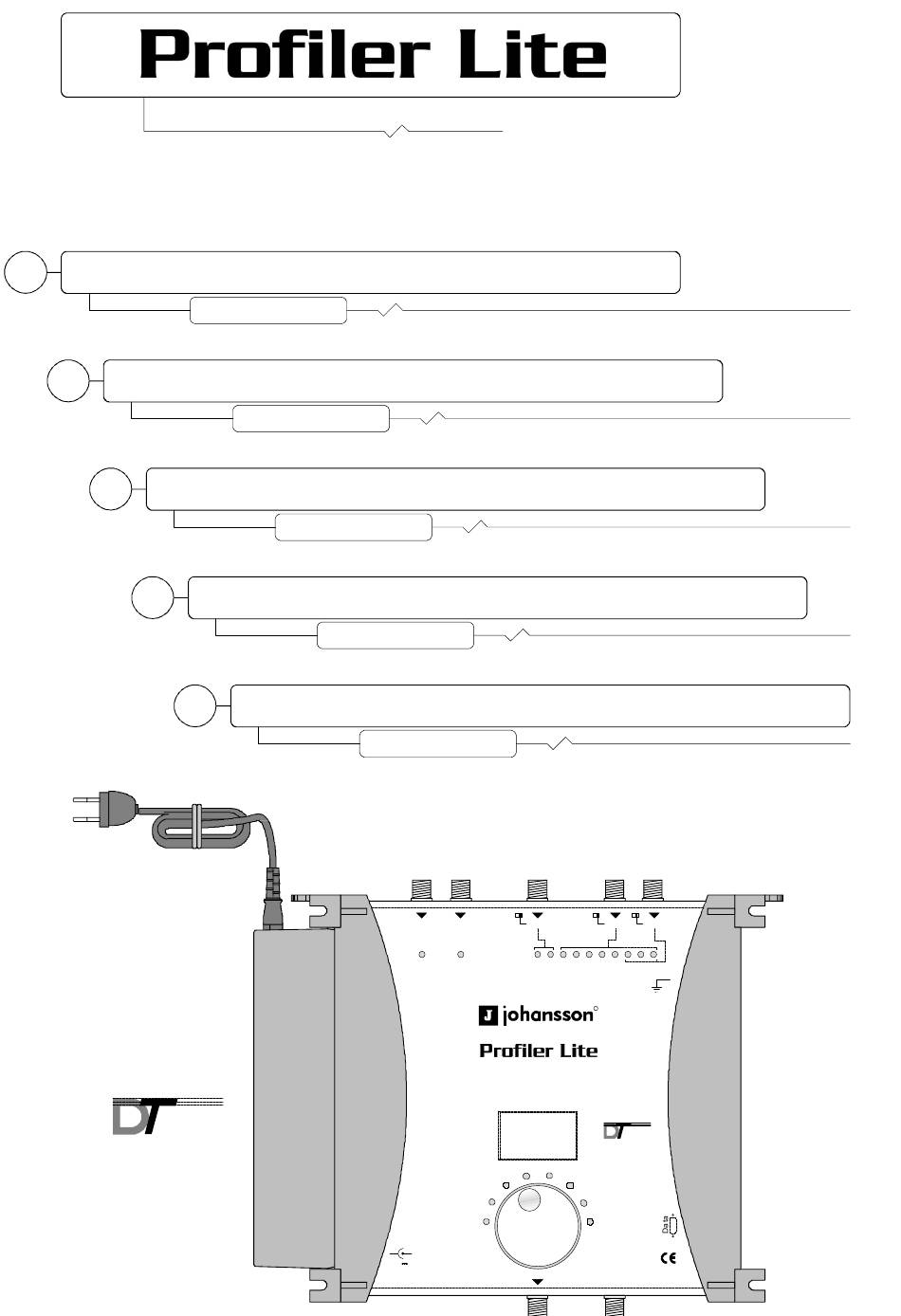

Multi Channel Programmable Filter-Amplifier
GB
Filtre-amplificateur Programmable Multi-Canaux
F
Filtro-Amplificador Programable Multicanal
ES
FI
Dig ital
T erres trial
User Manual
Mode d'emploi
Manual de Usuario
Kiinteistön ohjelmoitava vahvistinkeskus
Käyttöohje
Programmierbarer Mehrkanal-Filter-Verstärker
DE
10 clusters: 6601 / 6601A / 6601UK
9 clusters: 6607
8 clusters: 6606
Bedienungsanleitung
B I-II
B III
UHF1
24V
I-II
III
1
MULTI CHANNEL
PROGRAMMABLE FILTER-AMPLIFIER
Stop Channel
Start Channel
Select Filter
Split UHF
+
15V
IN
Output
UHF2
UHF3
24V
24V
2
3
4
5
6
7
8
9
10
UHF Clusters
GND
R
Digital
T erres trial
Ref.: 6601
Manual Level
Auto Level
Data Import
Exit
Test
(-30 dB)
3
21
39
57
75

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profiler Lite 6601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johansson Profiler Lite 6601

Summary of Contents for Johansson Profiler Lite 6601

  • Page 1 10 clusters: 6601 / 6601A / 6601UK 9 clusters: 6607 8 clusters: 6606 Multi Channel Programmable Filter-Amplifier User Manual Filtre-amplificateur Programmable Multi-Canaux Mode d'emploi Filtro-Amplificador Programable Multicanal Manual de Usuario Kiinteistön ohjelmoitava vahvistinkeskus Käyttöohje Programmierbarer Mehrkanal-Filter-Verstärker Bedienungsanleitung B I-II B III UHF1 UHF2 UHF3...
  • Page 3 Multi Channel Programmable Filter-Amplifier User Manual B I-II B III UHF1 UHF2 UHF3 I-II Dig ital UHF Clusters T erres trial MULTI CHANNEL PROGRAMMABLE FILTER-AMPLIFIER Digi tal T erres trial Ref.: 6601 Stop Channel Manual Level Start Channel Auto Level Select Filter Data Import Split UHF...
  • Page 4 UK-version 6601UK Multi Channel Programmable Filter-Amplifier User Manual B II B III UHF1 UHF2 UHF3 Digital Terrestrial UHF Clusters MULTI CHANNEL PROGRAMMABLE FILTER-AMPLIFIER Digital Terrestrial Ref.: 6601UK Stop Channel Manual Level Start Channel Auto Level Select Filter Data Import Split UHF Exit Output Test...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS Read carefully these instructions before connecting the unit. The operating voltage is indicated on the adapter. To prevent fire, short circuit, shock hazard: Do not expose the unit to rain or moisture. Install the unit in a dry location without infiltration or condensation of water. Do not expose it to dripping or splashing.
  • Page 6 DESCRIPTION BI-FM BIII / DAB UHF1 UHF2 UHF3 (UK version = FM) Mains 230-240V~ LEDs for Inputs and Clusters Grounding 2 Digit Display DSUB9 Connector Rotary / Push Button Mode / Function LEDs Output Test Output Ref. 6601 - 6607 : 3 x UHF / Ref.

  • Page 7: Operation

    OPERATION All parameters are set with the rotary push button. Each function and parameters are shown on 2 digits display and different LEDs . Programming Enter programming mode - Make all the necessary connections and connect amplifier to mains. The software version is displayed, followed by a dot.
  • Page 8 Repeat this section to set all parameters - Turn the button to select the desired mode. = green LED Mode is indicated with a GREEN colored LED. = red LED - Push the rotary button to enter the selected mode. The LED is now RED colored.
  • Page 9 CLUSTER PROGRAMMING Setting clusters / UHF input The amplifier Ref. 6601 has 3 UHF inputs which are splitted over 10 clusters Ref. 6607 has 3 UHF inputs which are splitted over 9 clusters Ref. 6606 has 2 UHF inputs which are splitted over 8 clusters There are three possible configurations : 6601 6607...
  • Page 10 Setting channels / cluster Each cluster has a bandwidth which can be programmed from 1 to 7 channels : To set the channel(s) per cluster : In the following example cluster 1 is set for channel 22 to channel 26. - Turn the button to select the Select Filter mode.
  • Page 11 Notes : - Single channel mode : When the Start Channel is selected, the Stop Channel is automatically set at the same value. Start Channel - Park function : to switch off the cluster, select Start Channel and set 00. The Stop Channel goes automaticaly to 00.
  • Page 12 To check the channel settings of each cluster : - Turn the rotary button to select Select Filter. Select Filter The LED is GREEN. - Push the rotary button to enter the selected mode. Select Filter The LED is now RED colored. - Turn the button to choose the cluster to be checked.

  • Page 13: Level Adjustment

    LEVEL ADJUSTMENT Levels are manually set for each input and / or automatically for the UHF clusters. Automatic level setting The levels of BI-II / BIII are not processed in the Auto Level function. - Turn the button to choose the Auto Level. Auto level The LED is GREEN.
  • Page 14 After automatic level setting procedure, the general level of the UHF signals can be adjusted from +10 dB to -9 dB in steps of 1 dB. General UHF level setting - Select all the clusters. - Turn the button to choose the Select Filter mode. Select Filter The LED is green.
  • Page 15 Manually level setting To set manually the level. - Select the desired input or cluster. Example : setting the level of BI-II (UK version = BII) - Turn the button to choose the Select Filter mode. Select Filter The LED is green. - Push the rotary button to enter the selected mode.
  • Page 16 To switch off the UHF input amplifier. - Select the input to be attenuated. - Turn the button to select the Select Filter mode. Select Filter The LED is GREEN. - Push the rotary button to enter the selected mode. Select Filter The LED is now RED colored.

  • Page 17: Copy Function

    COPY FUNCTION This function allows to transmit all settings from one unit to another unit or import from the memory stick (optional). Copy from unit to unit. B I-II B III UHF1 UHF2 UHF3 B I-II B III UHF1 UHF2 UHF3 I-II I-II...
  • Page 18 Copy from Memory Stick ref. 6604 (optional). B I-II B III UHF1 UHF2 UHF3 I-II UHF Clusters MULTI CHANNEL PROGRAMMABLE FILTER-AMPLIFIER Data Digital Terrestrial Ref.: 6601 Stop Channel Manual Level Start Channel Auto Level 6604 Select Filter Data Import PROFILER Split UHF Exit Orange :...

  • Page 19: General Reset

    GENERAL RESET This function can reset all clusters and attenuators to zero. Note : security code is not reset. - Disconnect the mains power. B I-II B III UHF1 UHF2 UHF3 I-II 9 10 UHF Clusters MULTI CHANNEL PROGRAMMABLE FILTER-AMPLIFIER D igital Terrestrial Ref.: 6601...

  • Page 20: Technical Specifications

    BLOCK DIAGRAM BI-II* BIII UHF 1 UHF 2 UHF 3 20 dB input amplifier Att. 20 dB Att. Auto Level 30 dB Ref. 6601 : 10 Clusters UHF 1/2/3 General Ref. 6607 : 9 Clusters UHF 1/2/3 Att. 20 dB Ref.

This manual is also suitable for:

Profiler lite 6601aProfiler lite 6601ukProfiler lite 6607Profiler lite 6606
