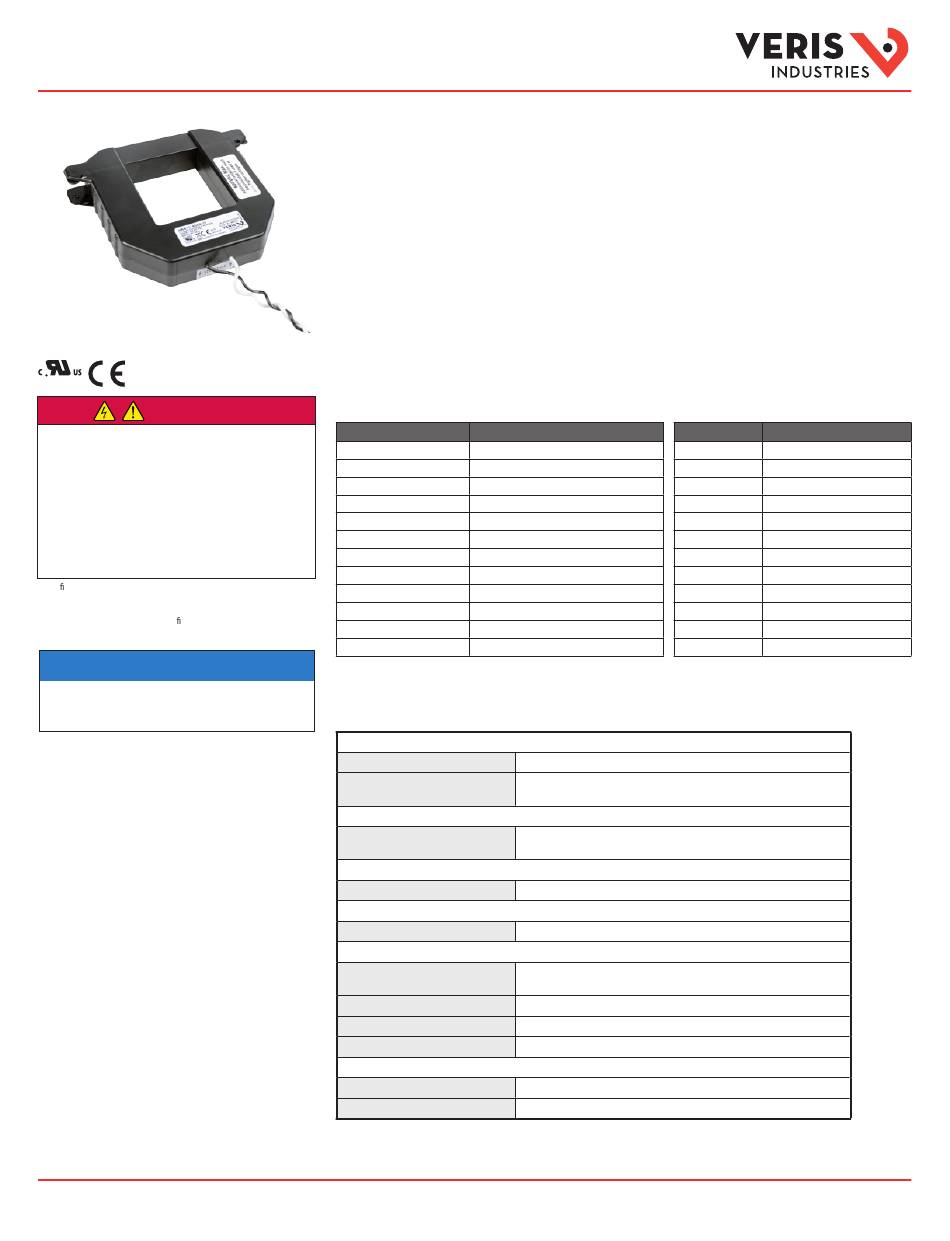

Veris H681 V Series Installation Manual

Installation Guide
Power Metering CTs
E207042
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Product may use multiple voltage/power sources. Disconnect ALL sources before
servicing.
• Use a properly rated voltage sensing device to confirm that power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION.
• Current transformer secondaries must be shorted or connected to a burden at all times.
• Products rated only for basic insulation must be installed on insulated conductors.
• Replace all doors, covers and protective devices before powering the equipment.
Failure to follow these instructions will result in death or serious injury.
A quali ed person is one who has skills and knowledge related to the construction and
operation of this electrical equipment and installations, and has received safety
training to recognize and avoid the hazards involved.
If this product is used in a manner not speci ed by the manufacturer, the protection
provided by the product may be impaired. No responsibility is assumed by the
manufacturer for any consequences arising out of the use of this material.
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
Z202815-0K Page 1 of 2
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Split-Core Current Transformers, Voltage Output
Product Overview
The H681x-V series of 1 volt and 0.333 volt split-core current transducers (CTs) provide secondary AC voltage
proportional to the primary (sensed) current. For use with power meters, data loggers, chart recorders, and other
instruments, the H681x-V series CTs provide a cost-effective means to transform electrical service amperages to a
voltage compatible with monitoring equipment.
Product Identification
0.333 V Models*
H6810-100A-.3V (R20)
H6810-200A-.3V (R20)
H6810-300A-.3V (R20)
H6811-400A-.3V (R20)
H6811-600A-.3V (R20)
H6811-800A-.3V (R20)
H6812-800A-.3V (R20)
H6812-1000A-.3V (R20) Split-Core CT, Large, 1000A:0.333V
H6812-1200A-.3V (R20) Split-Core CT, Large, 1200A:0.333V
NEC Article 100
H6812-1600A-.3V (R20) Split-Core CT, Large, 1600A:0.333V
H6812-2000A-.3V (R20) Split-Core CT, Large, 2000A:0.333V
H6812-2400A-.3V (R20) Split-Core CT, Large, 2400A:0.333V
*Models ending with R20 have 20 ft (6 m) leads. Example: H6810-100A-.3VR20.
Specifications
Frequency Range
Output at Rated Current
Operating Temp Range
Storage Temp Range
Humidity Range
Altitude of Operation
Agency Approvals
Installation Category
©2016 Veris Industries
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
H681x-V Series
Description
Split-Core CT, Small, 100A:0.333V
Split-Core CT, Small, 200A:0.333V
Split-Core CT, Small, 300A:0.333V
Split-Core CT, Medium, 400A:0.333V
Split-Core CT, Medium, 600A:0.333V
Split-Core CT, Medium, 800A:0.333V
Split-Core CT, Large, 800A:0.333V
INPUTS
50/60 Hz
Leads 6 ft (1.8 m)
20 ft (6 m)
ACCURACY
Accuracy ±1% of reading from 10% to 100% of rated current, specified with
the primary conductor(s) centered in the CT window.
OUTPUTS
1 V or 0.333 V
MECHANICAL
Insulation 600 Vac
ENVIRONMENTAL
2400 A models only: -15 to 50 °C (5 to 122 °F);
All other models: -15 to 60 °C (5 to 140 °F)
-40 to 70 °C (-40 to 158 °F)
0 to 95% non-condensing
3 km max.
COMPLIANCE INFORMATION
UL61010-1, EN61010-1
Category III, Pollution Degree 2
1 V Models Description
H6810-100A-1V Split-Core CT, Small, 100A:1V
H6810-200A-1V Split-Core CT, Small, 200A:1V
H6810-300A-1V Split-Core CT, Small, 300A:1V
H6811-400A-1V Split-Core CT, Medium, 400A:1V
H6811-600A-1V Split-Core CT, Medium, 600A:1V
H6811-800A-1V Split-Core CT, Medium, 800A:1V
H6812-800A-1V Split-Core CT, Large, 800A:1V
H6812-1000A-1V Split-Core CT, Large, 1000A:1V
H6812-1200A-1V Split-Core CT, Large, 1200A:1V
H6812-1600A-1V Split-Core CT, Large, 1600A:1V
H6812-2000A-1V Split-Core CT, Large, 2000A:1V
H6812-2400A-1V Split-Core CT, Large, 2400A:1V
