Non contractual photo

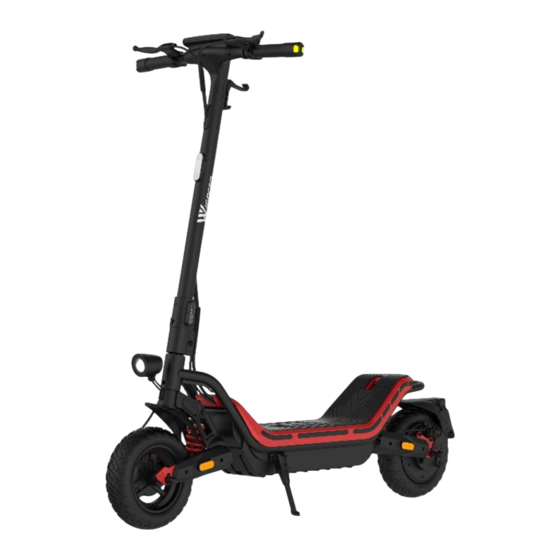

Electric Scooter WISPEEDSUVPILOT 150
USER MANUAL
Original
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUVPILOT 150 and is the answer not in the manual?

Questions and answers

Related Manuals for WISPEED SUVPILOT 150

Summary of Contents for WISPEED SUVPILOT 150

  • Page 1 Non contractual photo Electric Scooter WISPEEDSUVPILOT 150 USER MANUAL Original Instructions...
  • Page 2 WISPEED sur notre site internet www.wispeed.net en flashant le QR code ! Find all the latest versions of the MULTI LANGUAGE instructions for WISPEED products on our website www.wispeed.net by flashing the QR code ! Encuentre todas las últimas versiones de las instrucciones MULTI IDIOMA para productos WISPEED en nuestro sitio web www.wispeed.net mostrando el código QR !
  • Page 3 READ BEFORE ANY USE IMPORTANT Please read carefully and keep for future reference. This product is considered a class 2 light personal electric vehicle (PLEV) according to EN17128 WARNING: Never use this vehicle outside of areas authorized by regulations Before using your scooter, you must read the precautions for use and safety instructions.
  • Page 4 1- Precautions for use and safety instructions 1.1 General Read these instructions carefully  Save these instructions  Follow all instructions  Heed the warnings  Do not attempt to disassemble the device or modify it, otherwise it will no ...
  • Page 5 prior instructions relating to the use of the device in complete safety and that all risks involved are understood. Children should not play with the device. This scooter is not a toy. The  device is not intended for acrobatic use. Check regularly that your scooter is in good condition, read this manual ...
  • Page 6 Use on public roads is regulated.You must use the cycle paths. In the  absence of these, you can drive exclusively on roads limited to 50 km/h. Outside urban areas, you can only ride on greenways and cycle paths.  On sidewalks, pedestrian zones, within buildings or any other place ...
  • Page 7 The use of headphones or headphones while riding is prohibited.  It is forbidden to ride with several people on your scooter.  The maximum weight supported bytherescooter is120kg.  The minimum weight to use the scooter is50kg.  Failure to follow these weight recommendations will impair the ...
  • Page 8 cause a loss of grip and result in personal injury and property damage. Braking distances are significantly extended in the event of wet roads,  rainy weather or the presence of water on the road. Avoid riding on steep slopes.Do not useyour scooteron slopes that are too ...
  • Page 9 It is mandatory to wear suitable, closed shoes for the entire time you use  your scooter. The external battery charger flex cable cannot be replaced. If the cord is  damaged, the transformer should be discarded. Be sure to unplug the mains plug before disconnecting the power cable. ...
  • Page 10 these obstacles become dangerous due to their shape, their height or the risk of skidding that they present. For more information regarding the battery charging procedure, please go  to §5.1 “Charging the battery”. Keep the printed instructions for future reference and read them carefully ...
  • Page 11 Do not leave the battery on prolonged charge when not in use.  Do not attempt to disassemble this product to access the battery.  The battery is non-removable. Do not disassemble, open or shred battery cells. Do not throw the ...

  • Page 12: Package Contents

    2- General presentation of the product 2.1 About the WISPEED SUVPILOT 150 The WISPEED SUVPILOT 150 is a two-wheeled electric scooter. Its simple operation, its accessible controls, its resistance to splashes and its respect for the environment make it an adequate means of transport in an urban environment.
  • Page 13 2.3 Description of the scooter 1. L/R turn signals 2. Handlebar (Description P.16) 3. Brake cable 4. Front reflector 5. Folding hook 6. Scooter folding mechanism 7. Headlight 8. Rear brake light 9. Crutch 10. Front/rear shock absorbers 11. Rear motor 12.
  • Page 14 14. Charging connector 15. Footrest 16. Folding loop 17. Side reflectors 18. Rear mudguard 19. Brake handles 20.Accelerator 21.Doorbell 22.Left commodo (Description p.16) p.14...
  • Page 15 31.Right indicator switch 32.Speed ​ ​ mode selection switch Operating mode of the ON/OFF button Press 3s (approximately):Start/turn off the scooter Brief press 7 times: Set and reset password(Attention,this functioncan onlycarried out within 30 seconds after starting your SUVPILOT 150) p.15...
  • Page 16 Operating mode of the left switch Brief press1 timeon button: Turn on/off the front light Brief press1 timeon button: Turn the left turn signal on/off Brief press1 timeon button: Turn the right turn signal on/off Support 3s (approximately)on button : Turn on the hazard lights, then press the button once←...

  • Page 17: Assembling The Scooter

    2.4 Assembling the scooter 1°)Unfold the scooter (unfolding instructions p.19). 2°)Insert the handlebars into the stem tube, being careful not to pinch the cables (this should not force when inserted, and should slide easily). Don't forget to connect the cable between the stem and the handlebars. Orient the handlebars as shown below.

  • Page 18: Folding The Scooter

    2.5 Folding the scooter To fold the scooter, extend the kickstand then Press the gray lever (A) while turning the swivel mechanism clockwise (B).  Be sure to turn the mechanism all the way down to unlock the descent of the stem.
  • Page 19 To unfold the scooter: Release the stem hook from the deck loop to unfold the scooter.  (D) Reassemble the stem, making sure to hold the pivot locking mechanism  in the down position so that the stem can properly lock in the unfolded position.
  • Page 20 3- Instructions for use Your experiences riding bicycles, driving automobiles, skiing, and using other similar means of transportation can help you gain better control of your scooter and help you handle your scooter better. Before each trip, check that the tires are not damaged or deflated and that no ...
  • Page 21 Autonomy The range for a full charge can be up to 50km, but varies greatly depending on several factors, such as: Field :Dry,smooth, flat terrain increases travel distance. Sloping terrain (positive)  reduces autonomy. User weight:The user's body weight has an impact on autonomy. The heavier ...

  • Page 22: Speed Limits

    The maximum speed ofthereWISPEED SUVPILOT 150 pedestrian speed is 6 km/h. 3.4 Braking The WISPEED SUVPILOT 150 has two drum brakes, one at the front and one at the rear and a rear electronic brake, which gives it effective braking but must be well controlled.

  • Page 23: Light Indicators

    The rear mudguard is not a brakeand it is forbidden to pressof theknowsto brake. You risk damaging your scooter without being able to lower your speed Light indicators Blinkers :You must activate the desired turn signal by pressing the  corresponding button on the turn signal control located to the left of the handlebars, then press the same button again to remove it.

  • Page 24: Battery Use And Charging

    WARNING ! Do not useyour scooterwhen the battery is low or the system requests a safe shutdown. Battery life will be reduced if you continue to usethereWISPEED SUVPILOT 150 while the battery level is low. p.24...

  • Page 25: Battery Charging

    If the light is green, check that the cable is correctly connected to the scooter. Full charging of the WISPEED SUVPILOT 150 takes approximately 8 hours.  When the charger light changes from red to green, charging is complete.
  • Page 26 Keep the charging environment clean and dry.  Do not charge the battery if the charging socket is wet or damp.  WARNING !: The scooter cannot turn on when plugged into the mains. 5.2 Battery characteristics Battery Model JT-ESB10-05 Battery Type Lithium ion Loading time...

  • Page 27: Error Codes

    6- Error codes If a malfunction occurs while using your WISPEEDSUVPILOT 150, you will then see one of the following error codes appear on the screen: CODED Scree MEANING APPEARANCE APPEARANCE IN OPERATION n icon WHEN SWITCHING ON Engine Return after-sales Shutdown –...

  • Page 28: Maintenance And Storage

    Clean your scooter with a soft, dry cloth.  WARNING! Your WISPEED SUVPILOT 150 is IPX5 certified. This means that it is splash-proof. However, it should not be submerged or subjected to a jet of water. So never cleanthereWISPEED SUVPILOT 150 with high pressure water jets and never immerse it in any liquid.
  • Page 29 Storage Before storage, fully charge your scooter to prevent excessive battery  discharge due to prolonged non-use. Before storage, fully charge your scooter to prevent excessive battery  discharge due to prolonged non-use. If the scooter is stored for several months, remember to recharge it at least ...

  • Page 30: Maintenance

    If you see the wear marks below on your tires, please change your tires.  In the event of excessive wear, you can order new tires via our  sitehttps://www.wispeed.net/assistance section or contact the after-sales service to replace the tires. 7.4 Maintenance 7.4.1 Maintenance of the braking system: ...
  • Page 31 Assistance Our websitehttps://www.wispeed.net/can provide you with various supports via the assistance section. A list of photo tutorials that detail the maintenance process or replacing a ...
  • Page 32 Technical support via the dedicated email addressglis_urbaine@logicom-  europe.com A FAQ dedicated to your product  The possibility of ordering different elements (a second charger, an inflation  nozzle, a tire) (*) (*) The list of items available for sale is subject to change. Logicom reserves the right to modify without notice or justification all or part of this list, or even to suspend the sale of these elements at any time without this being considered as prejudice to the user.
  • Page 33 To activate the lock you must:  Turn on your scooter by pressing the start button for approximately 3 seconds, you will hear a beep and the display will be on. 2- Your scooter is on. To activate the lock code, quickly press the start button 7 times 3- the default code is 00.
  • Page 34 Enter the unlock code for your scooter below: Now that the code lock is activated, each time you start it, your scooter will ask you for your code (two digits). To unlock the scooter, turn it on by pressing 3 seconds, then enter your code, then press twice Disable passcode lock.

  • Page 35: Technical Informations

    9 – Odometer By turning on the scooter, the scooter displays the number of kilometers traveled during this session of use. By pressing the M button 4 times, you can view the total number of kilometers traveled. Just wait about 3 seconds and the display returns to your session screen. Technical informations Name Settings...
  • Page 36 Dimensions (L*W*H) 1280*620*1280mm Battery 36V/15.6Ah Operating temperature Min=0°C, Max=45°C Maximum tire pressure 2.4 Bar Minimum tire pressure 2 Bar Weighted sound pressure level <70dB(A) The total value of vibrations to which the hand-arm system is exposed does not exceed 2.5 m/s2 p.36...

  • Page 37: Eu Declaration Of Conformity

    Brand: WISPEED Trade name :SUVPILOT 150 Type: Electric Scooter (PLEV Class 2) To which this simplified declaration refers, it complies with the essential requirements and other relevant provisions of the Machinery Regulation (2006/42/EC) and the EMC Directive (2014/30/EU).

  • Page 38: Charger Information

    11- Charger information V03TB Manufacturer name JIANGXI FU DIAN YOU PIN TECHNOLOGY addressvsant CO.,LTD (Innovation and entrepreneurship park, Economic Development zone, Guixi City Jiangxi Province, CHINA) Model reference FY-4202000 Input voltage 100-240V Input alternating current (AC) 50-60Hz frequency Output voltage Output current Output power Average yield in active mode...

  • Page 39: Scope Of Warranty

    In case of problems : A contact form as well as a complete FAQ are available in the Support section of our website:https://www.wispeed.net/fr/ If none of these platforms have solved your problem, please contact your reseller (with your product and its charger).
  • Page 40 The warranty does not cover defects caused to the product by an accessory not  supplied by WISPEED. The warranty does not cover any damage caused to the battery.  p.40...
  • Page 41 The warranty does not cover the product or its accessories if it has been  disassembled or modified in any way. The warranty does not cover any product not identifiable by its serial number. If  elements have been removed, erased, modified or made illegible, the warranty does not apply.
  • Page 42 p.42...
