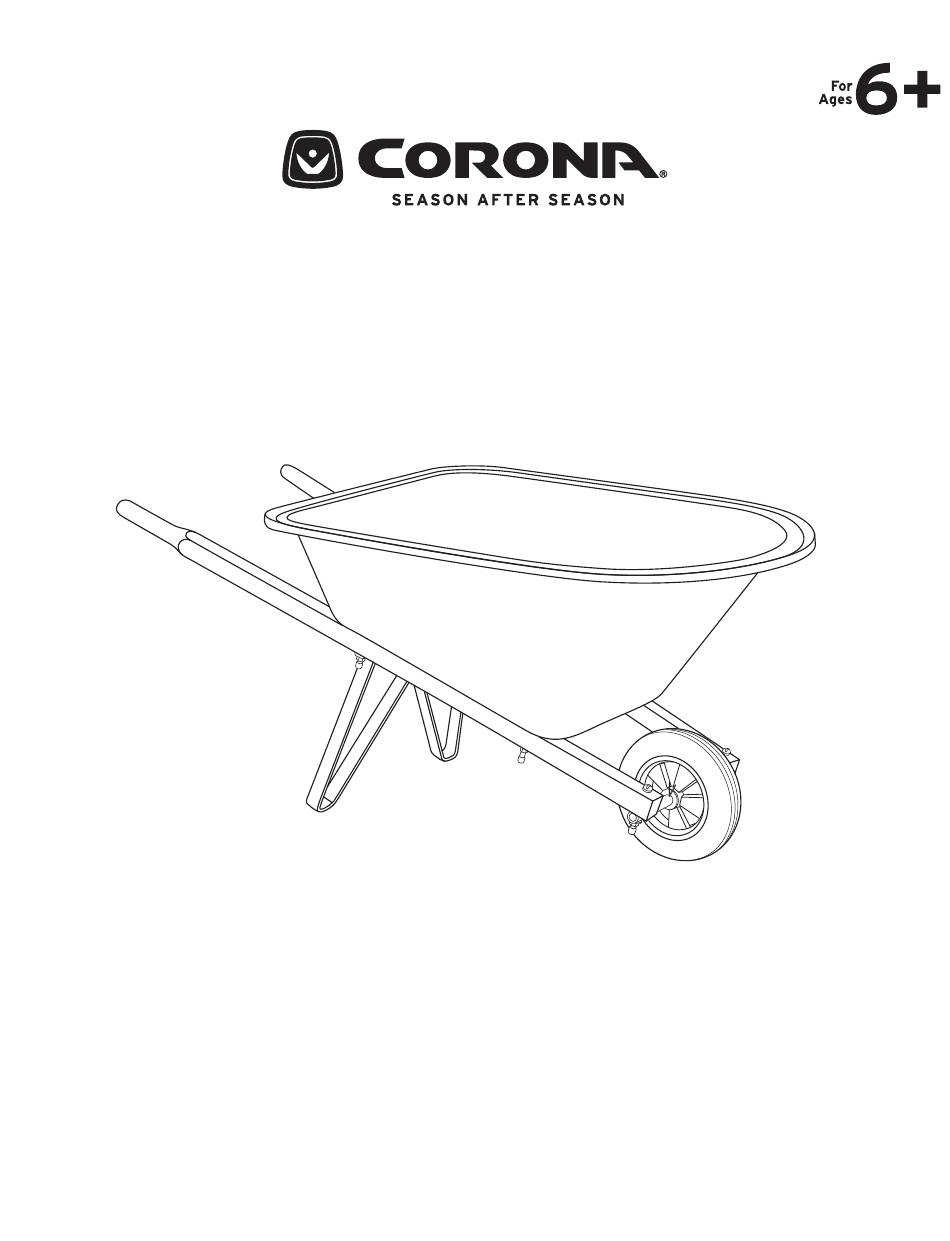

USE AND CARE GUIDE KIDS WHEELBARROW ADULT ASSEMBLY AND SUPERVISION REQUIRED Questions, problems, missing parts? Before returning to the store, call Corona Customer Service Mon - Fri, 7:30 AM - 4:30 PM PST (800) 847-7863 WWW.CORONATOOLSUSA.COM Retain this manual for future use.
Safety Information □ Assembly by an adult. DANGER: Changing tires can be dangerous and should be □ Wheelbarrow should be used by ages 6+ with the done by trained personnel only. supervision of an adult. □ The wheelbarrow can tip easily, load only with soft and light materials, under 10 pounds and evenly distributed.
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Tray Handle Legs Wheel Axle...
Page 4
Assembly Attaching Handles and Legs RECOMMENDED: All hardware should be installed only finger tight until wheelbarrow is completely assembled. □ Screw four 50 mm bolts (EE) into tray (A). □ Assemble handles (B) and legs (C) onto bolts. Be sure to orient the legs as shown.
□ Screw two 50 mm bolts (EE) into the ends of handle (B) and axle (E). □ Tightening with washers (CC), spring shim (DD), nuts (FF) and cap (GG) as shown. Tightening the Hardware □ Fully tighten all hardware prior to use. Warranty 1-YEAR WARRANTY For details, visit coronatoolsusa.com/corona-cs-warranty...
