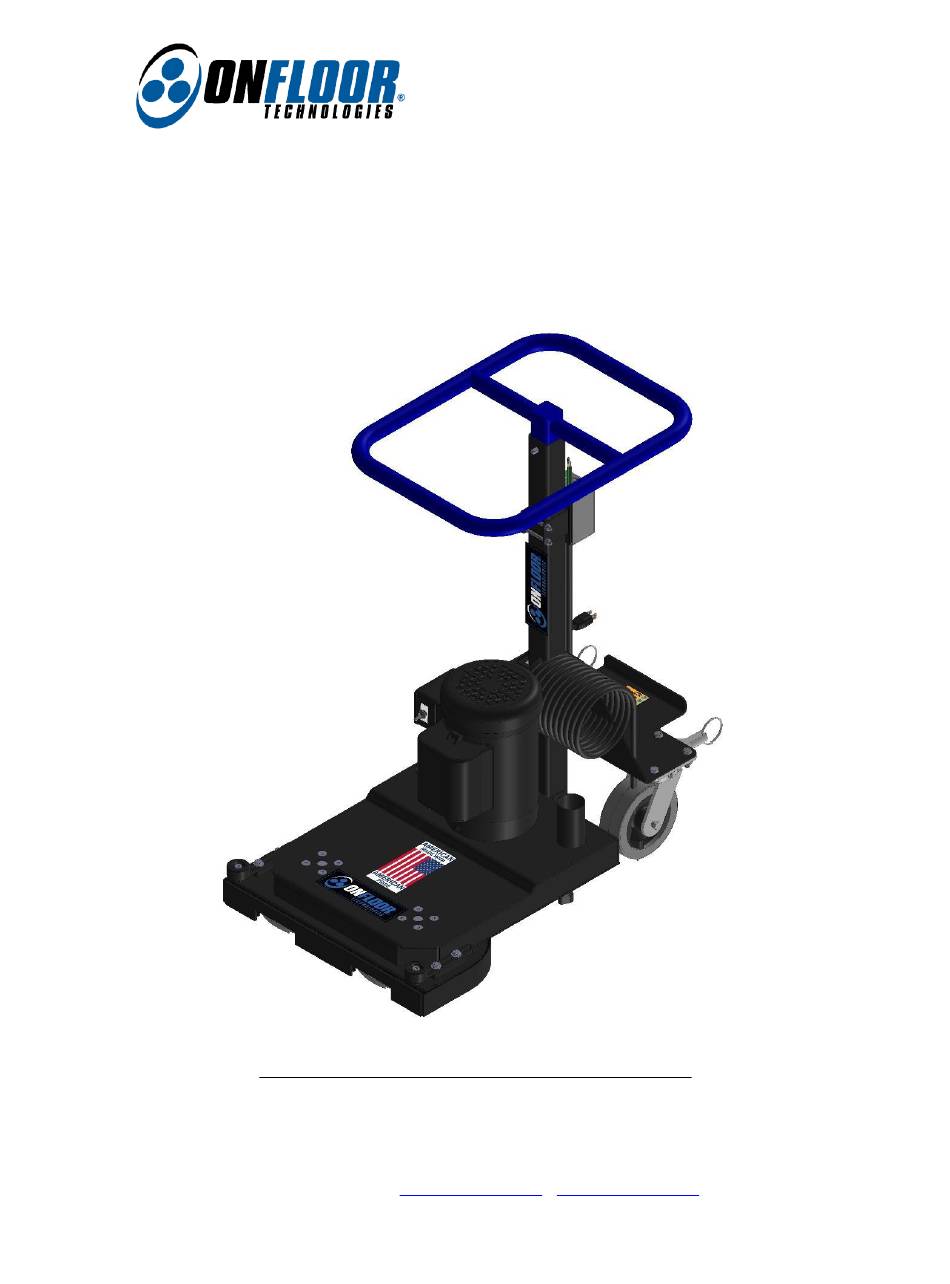

- Page 1 OPERATION MANUAL & PARTS LIST OF18 Edger Multi-Surface Floor Machine Single Speed SAVE THESE INSTRUCTIONS Address: 777 South Street, Newburgh, New York 12550-0606 TEL: 877.356.6703 / 845.565.6623 Internet Address: www.onfloor.com info@onfloor.com...
-
Page 2: Table Of Contents
Problem: Machine bogs down and runs slow..........................18 Problem: Motor runs, driver will not rotate..........................18 Problem: Noisy machine or vibration............................. 18 Warranty Information....................................19 Spare Parts and Accessories..................................20 OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 3: Specifications
Full Load Amperage 18 AMP/9 AMP Tool Speed 750 RPM Cutting Width 18" Weight 160 lbs Grinding Pressure 80 lbs Optional Weight 20 lbs Shipping Weight 180 lbs OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 4: Before First Use
Treat this floor machine as you would any other high-grade precision-made product. Throwing, dropping, unreasonable bumping across thresholds and other misuse may result in a damaged unit and invalidate the warranty. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 5: Silica Vacuum Warning
Onfloor equipment. To achieve a high level of dust collection, use an industrial HEPA vacuum cleaner. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 6: Important Safety Instructions
Floor sanding can result in an explosive mixture of fine dust and air. Use a floor sanding machine only in a well-ventilated area. This floor machine must be connected to a properly grounded outlet only. (See grounding method) OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 7: General Safety Precautions
Check the power cord for any breaks in the wire. Breaks will most likely occur near the plug or switch. Repair or replace any breaks immediately. Remove dust cover and vacuum out dust and debris from inner bowl. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 8: Grounding Instructions & Methods
If it will not fit the outlet, have a proper outlet installed by a qualified electrician. NOTE: In Canada, use of a temporary adaptor is not permitted by the Canadian Electrical Code. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 9: General Adjustments And Use
1.5” or 2” inside diameter vacuum hose fitting. Using a vacuum designed to pick up concrete dust will control the dust created from grinding. Only operate the machine while connected to a properly functioning vacuum designed for this purpose. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 10: Operating Instructions
OFF the machine and disconnect from the power source. Dustless Performance Hook up the vacuum hose to the 1.5” vacuum port for dustless performance as shown in Figure 1. Figure 1 OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 11: Reversing Tool Direction
Tools such as 8-way scrapers and Diamabrush tools are designed to operate in Forward direction ONLY. If you have questions about tool direction, please contact Onfloor or your Onfloor representative before using. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 12: Installation & Changing Of Accessory Tools
If the bubble appears toward the motor, rotate the knob counterclockwise to move the bubble to center. It will be easier to make this adjustment by lifting up on the handle while turning the knob. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 13: Belt Changing Instructions
This makes the machine stable and less likely to tip over. Remove the tools. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... - Page 14 The same 15/16” socket used to remove the nuts works well for this. You do not need to be cautious about damaging the old bearings during removal. See Figure 9a. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024...
- Page 15 When properly installed the last bearing will be below the retaining ring groove and the retaining ring should go in easily. See Figure 10a. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024...
- Page 16 Use a short piece of wood (or 15/16” socket) and a mallet/hammer to drive the old bearings from the pulley. See Figure 9b. Figure 9b. Removing old bearings from the pulley without a press. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024...
- Page 17 (don't forget this) then; repeat the same process with the top bearing. Then install the retaining ring. Reinstall drive pins, pulley, belts, keeper plates, dust cover in reverse order of removal. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024...
-
Page 18: Troubleshooting Guide
Attachment is not level or securely attached. Possible Solution: Level attachment and make sure all fasteners are secure. 2) Possible Cause: Defective motor. Possible Solution: Contact the manufacturer or authorized service center. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 19: Warranty Information
This Warranty is limited to repair or replacement of covered components and reasonable labor expenses. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024... -
Page 20: Spare Parts And Accessories
If your OF18 Edge S-4 machine (SOFT-MAX FLEX), SET OF 2 needs a replacement gel drive, Onfloor technologies have the best kit to keep it going. OF18 Edger Manual - Rev 1.0 - Printed in USA – 08/20/2024...
