Brook GEN-SX mini FIGHTING BOARD User Manual page 7

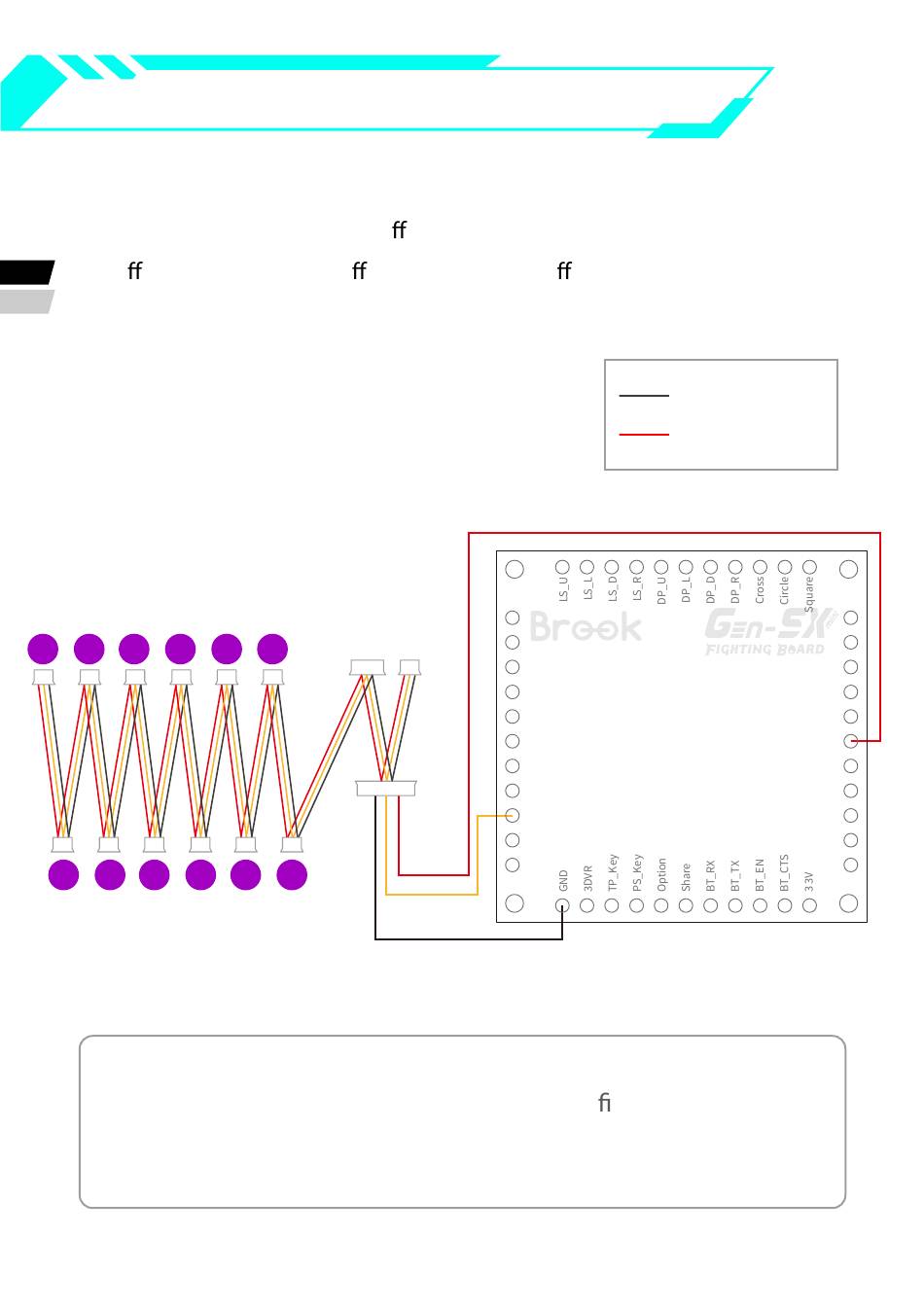

How to connect RGB LED
RGB LED function setting
• Fn + 1P： Switch lighting e ects.
• E ect sequence： All o (default) → Turn o when pressed → Turn on
EN
when pressed → Breathing light → Marquee (left to right) → Marquee
TW
(right to left)
• Fn + 2P： Increase brightness
• Fn + 3P： Decrease brightness
8 6
12 10
9 7
11
*The order in which the RGB lights on the buttons illuminate will
follow the wiring sequence. For example, the rst connection will
be numbered as 1, and so on.
*Compatible with WS2812B RGB LEDs and requires a daisy-chaining connection
4 2
5 3 1
J1
RS_R
RS_D
RS_L
RS_U
L�
R�
J�-�
J�-�
RGB_LED
OLED_SCL
OLED_SDA
J4
7
GND
POWER(5V)
J2
Triangle
FN_key
GND
D+
D-
VBUS
L�
R�
L�
R�
Reset
J3
U3_1
